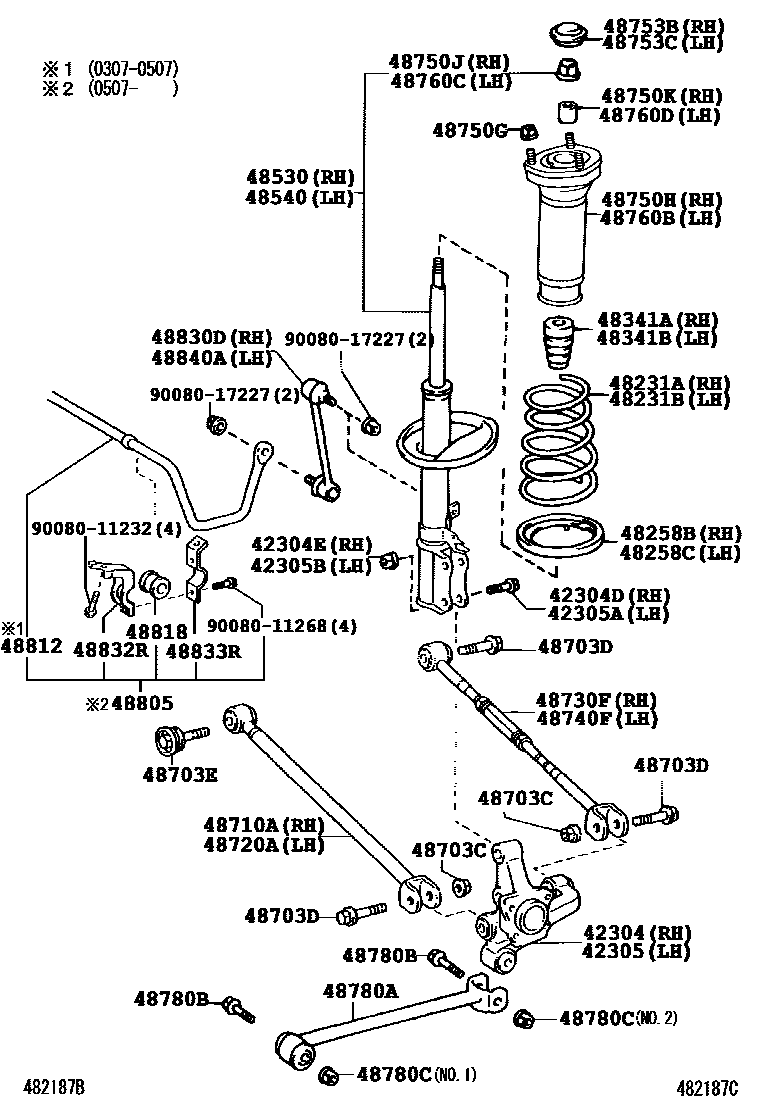

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06100iACV30,MCV31..5F,5FC200307-200605

(L)

main42304-48010iMCV31..CVT200605

(J)

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90080-10398iACV30,MCV31..5F,5FC; MCV31..CP..SE200307-200605

(L); SPORT PACKAGE,(L)

main90901-05001iACV30..4FC200307-200503

(J)

42304ENUT (FOR REAR AXLE CARRIER RH)

main90080-17213iACV30,MCV31..CP; ACV30..SE; MCV31..CVT200512-200605

SPORT PACKAGE

main90178-A0028×2iMCV31..CVT200402-200512

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06100iACV30..4FC200307-200503

(L)

main42305-48010iACV30,MCV31..CP200605-200808

(J)

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90080-10398iMCV31..CP; MCV31..CP..SE; MCV31..CVT;ACV30..5F,5FC200307-200605

(L); SPORT PACKAGE,(L)

main90901-05001×2iACV30,MCV31..CP200605-200808

(J)

42305BNUT (FOR REAR AXLE CARRIER LH)

main90080-17213×2iACV30,MCV31..CP200605-200808

main90178-A0028iACV30,MCV31200307-200512

48231ASPRING, COIL, REAR RH

main48231-AA020iACV30,MCV31200307-200401

main48231-AA021iACV30,MCV31..CP200402-200511

main48231-AA191iMCV31..CVT200402-200605

main48231-AA160iACV30,MCV31..SE200307-200401

SPORT PACKAGE

main48231-AA161iACV30..4FC..SE200402-200503

SPORT PACKAGE

48231BSPRING, COIL, REAR LH

main48231-AA020iACV30,MCV31200307-200401

main48231-AA021iACV30,MCV31..CP200402-200511

main48231-AA191iMCV31..CVT200708

main48231-AA160iACV30,MCV31..SE200307-200401

SPORT PACKAGE

main48231-AA161iACV30,MCV31..CP..(5F,5FC)..SE200402-200605

SPORT PACKAGE

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32021iACV30,MCV31..CP200802-200808

(J)

main48258-AA010iACV30..4FC200307-200503

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-33010iACV30,MCV31..CP200802-200808

(J)

main48258-AA020iACV30,MCV31200802-200804

(L)

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-AA010iACV30..4FC200307-200503

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-AA010iACV30..4FC200307-200503

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09M40iMCV31..CVT200512-200605

MARK 48530-06480

main48530-09P30iMCV31..CVT200703

MARK 48530-06481

main48530-A9190iACV30,MCV31..CP200307-200508

MARK 48530-AA080

main48530-A9230iMCV31..CVT200402-200512

MARK 48530-AA100

main48530-A9600iACV30,MCV31..CP200508-200512

MARK 48530-AA081

main48530-A9620iACV30,MCV31..CP200605-200703

MARK 48530-AA082

main48530-A9660iACV30,MCV31..CP200703-200808

MARK 48530-AA083

main48530-A9220iACV30,MCV31..CP..5FC..SE200307-200508

MARK 48530-AA090,SPORT PACKAGE

main48530-A9610iACV30,MCV31..CP..SE200508-200512

MARK 48530-AA091,SPORT PACKAGE

main48530-A9630iACV30,MCV31..CP..SE200512-200605

MARK 48530-AA092,SPORT PACKAGE

main48530-A9670iACV30,MCV31..CP..SE200703-200808

MARK 48530-AA093,SPORT PACKAGE(HID HEAD LAMP)

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09780iMCV31..CVT200605-200703

MARK 48540-06480

main48540-09840iMCV31..CVT200703

MARK 48540-06481

main48540-A9120iACV30,MCV31..CP200307-200505

MARK 48540-AA080

main48540-A9140iMCV31..CVT200402-200503

MARK 48540-AA100

main48540-A9250iACV30,MCV31..CP200505-200508

MARK 48540-AA080

main48540-A9260iMCV31..CVT200503-200512

MARK 48540-AA100

main48540-A9280iACV30,MCV31..CP200508-200512

MARK 48540-AA081

main48540-A9300iACV30,MCV31..CP200605-200703

MARK 48540-AA082

main48540-A9340iACV30,MCV31..CP200703-200808

MARK 48540-AA083

main48540-A9130iACV30..5F200503-200508

MARK 48540-AA090,SPORT PACKAGE

main48540-A9290iACV30,MCV31..CP..SE200508-200512

MARK 48540-AA091,SPORT PACKAGE

main48540-A9310iACV30,MCV31..CP..SE200512-200605

MARK 48540-AA092,SPORT PACKAGE

main48540-A9350iACV30,MCV31..CP..SE200703-200808

MARK 48540-AA093,SPORT PACKAGE(HID HEAD LAMP)

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14068×4iACV30,MCV31..CP200605-200808

48703DWASHER(FOR REAR SUSPENSION ARM)

main90080-11672×6iACV30..4FC200307-200503

48703EBOLT(FOR REAR SUSPENSION ARM)

main90080-11674×2iACV30..4FC200307-200503

*14-1.50PX76-36

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-33080iACV30,MCV31..5F,5FC200307-200605

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-33080iACV30..4FC200307-200503

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-33080iACV30..4FC200307-200503

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-33080iACV30..4FC200307-200503

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007×6iACV30..4FC200307-200503

(J)

main90178-A0002×6iMCV31..CVT200402-200605

(L)

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-06061iACV30,MCV31200307-200509

main48750-06062iACV30,MCV31200510-200512

main48750-06190iMCV31..CVT200605

main48750-33110iACV30,MCV31..CP..SE200605-200808

SPORT PACKAGE(HID HEAD LAMP)

main48750-AA010iACV30,MCV31..CP..SE200307-200507

SPORT PACKAGE

main48750-AA011iACV30,MCV31..CP..SE200508-200605

SPORT PACKAGE

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90080-17212iACV30,MCV31200307-200512

(L)

main90080-17217iACV30,MCV31200512-200605

main90177-14001iACV30,MCV31200307-200512

(J)

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iMCV31..CVT200605

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-06011iACV30..4FC200307-200503

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-06011iACV30..4FC200307-200503

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-06061iACV30,MCV31200307-200509

main48760-06062iACV30,MCV31200510-200512

main48760-06190iACV30,MCV31200512-200605

main48760-33110iACV30,MCV31..CP..SE200605-200808

SPORT PACKAGE(HID HEAD LAMP)

main48760-AA010iACV30,MCV31..CP..SE200307-200507

SPORT PACKAGE

main48760-AA011iACV30,MCV31..CP..SE200508-200605

SPORT PACKAGE

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90080-17212iACV30,MCV31200307-200512

(L)

main90080-17217iACV30,MCV31200512-200605

main90177-14001iACV30,MCV31200307-200512

(J)

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iACV30,MCV31..CP200605-200808

48780AROD ASSY, STRUT, REAR

main48780-12020×2iACV30..4FC200307-200503

main48780-48020×2iMCV31..CVT200402-200605

48780BBOLT(FOR STRUT ROD)

main90080-11133×4iMCV31..CVT200402-200605

(L)

main90119-12131×4iMCV31..CVT200402-200605

(J)

48780CNUT(FOR STRUT ROD)

main90178-A0011×2iMCV31..CVT200402-200605

NO.2

main90179-A0004×2iACV30,MCV31..CP200605-200808

NO.1

main90179-A0011×2iACV30,MCV31200307-200309

NO.2

48805BAR SUB-ASSY, REAR STABILIZER

main48805-AA030iACV30200605-200808

main48805-AA041iACV30..SE; MCV31..CP200605-200808

SPORT PACKAGE(HID HEAD LAMP)

48812BAR, STABILIZER, REAR

main48812-AA060iACV30;MCV31..CVT200307-200507

OD=14

main48812-AA071iACV30..SE; MCV31..CP200307-200507

OD=15; SPORT PACKAGE,OD=15

48818BUSH, STABILIZER, REAR

main48818-0E010×2iMCV31..CVT200605

main48818-AA010×2iACV30..SE; MCV31..CP200307-200605

SPORT PACKAGE

48830DLINK ASSY, REAR STABILIZER, RH

main48830-AA010iACV30..4FC200307-200503

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-06020×2iACV30,MCV31200307-200605

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-06030×2iACV30,MCV31200307-200605

48840ALINK ASSY, REAR STABILIZER, LH

main48830-AA010iACV30..4FC200307-200503

9008011232

main90080-11232

9008011268

main90080-11268

9008017227

main90080-17227

43 parts on this diagram · 1 diagram in section
