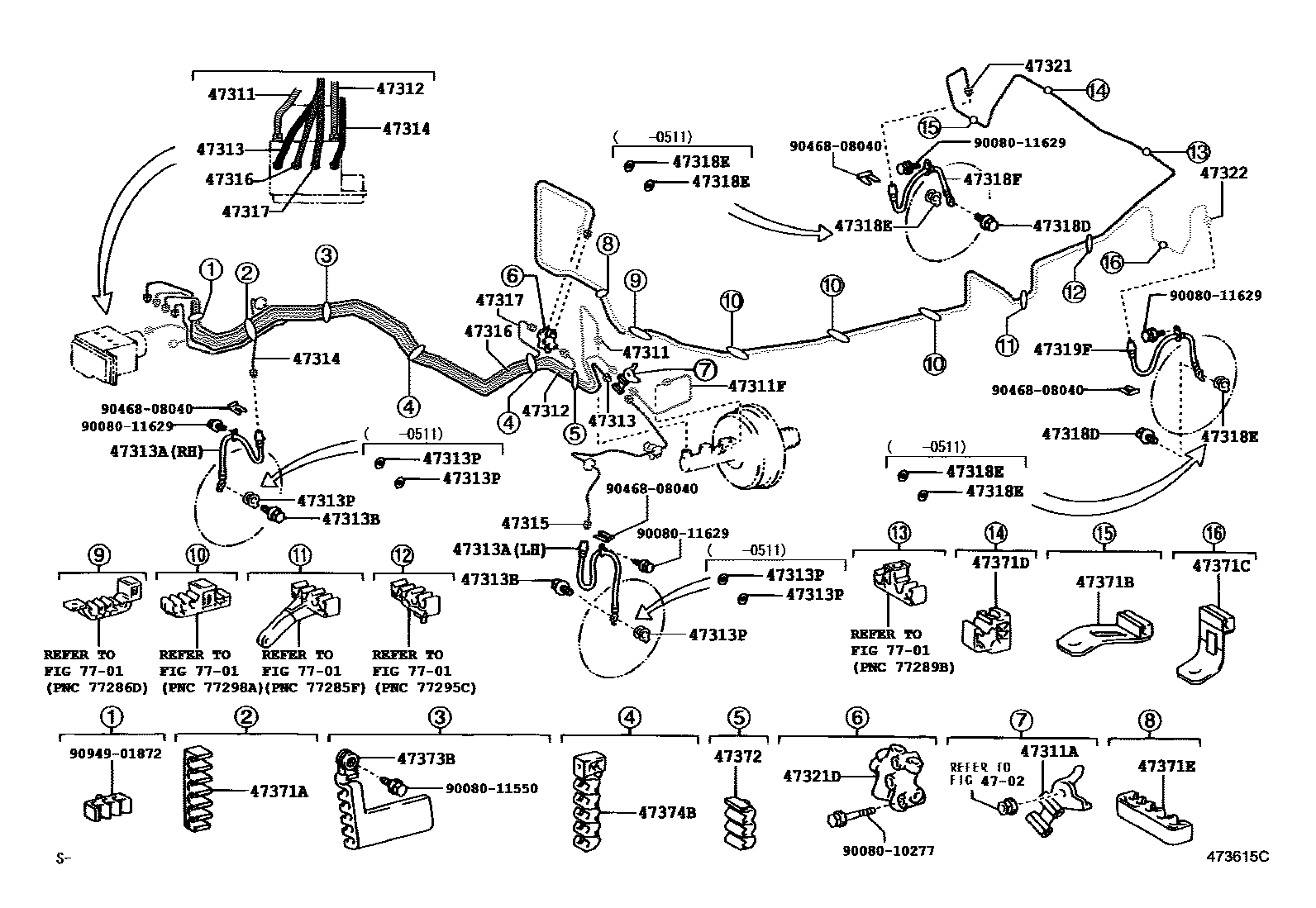

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
VEHICLE STABILITY CONT-WITH
47311AWAY(FOR FRONT BRAKE TUBE)
47311FTUBE, FRONT BRAKE, FRAME NO.1
47312TUBE, FRONT BRAKE, NO.2
VEHICLE STABILITY CONT-WITH
47313TUBE, FRONT BRAKE, NO.3
VSC-WITH
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
VEHICLE STABILITY CONT-WITH
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
VEHICLE STABILITY CONT-WITH
47317TUBE, FRONT BRAKE, NO.7
VSC-WITH
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
VSC-WITH,NO.1
7701FUEL TANK & TUBE
9008010277
main90080-10277
9008011550
main90080-11550
9008011629
main90080-11629
9046808040
main90468-08040
9094901872
main90949-01872
34 parts on this diagram · 4 diagrams in section
