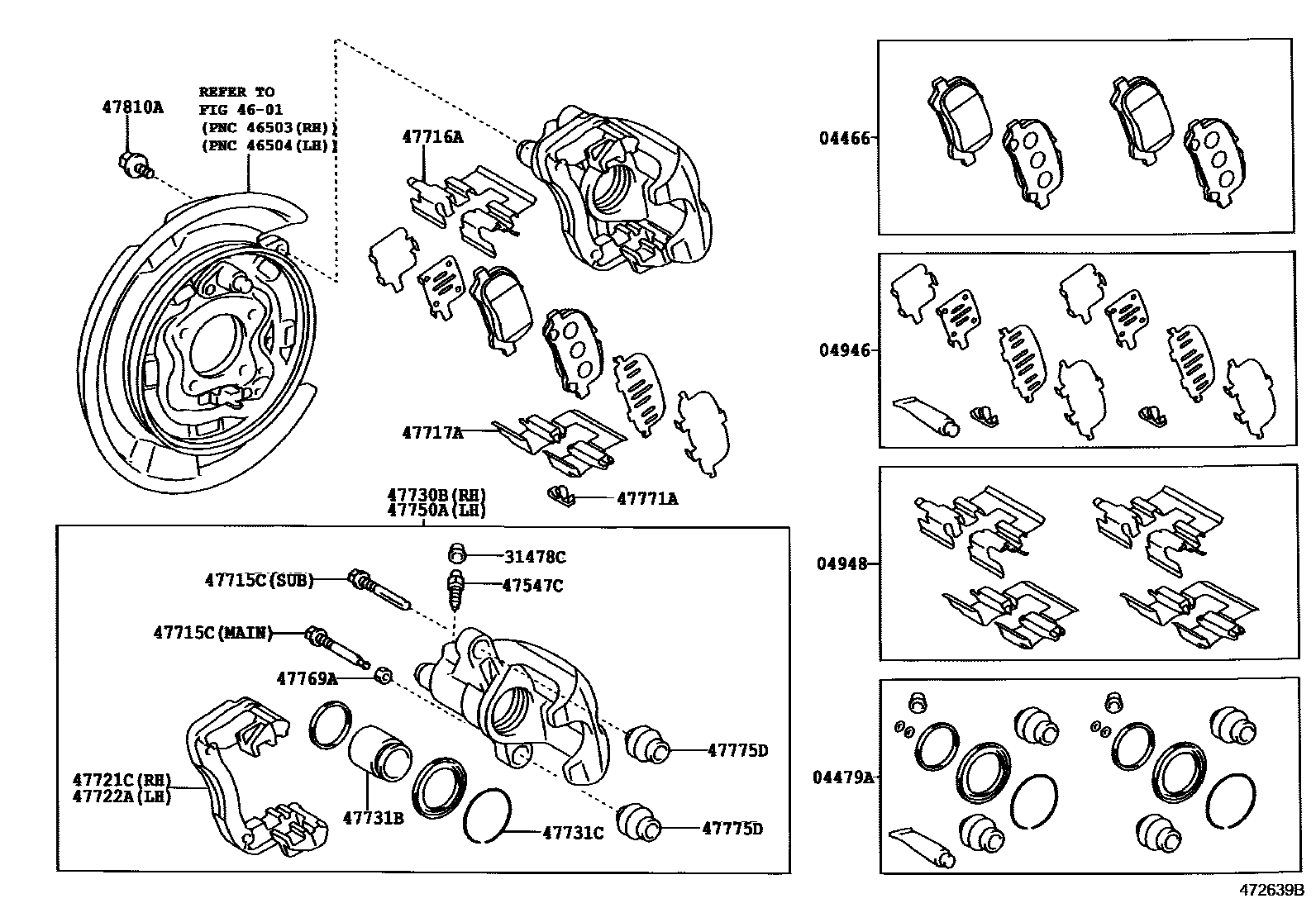

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-06030iACV30,MCV31200605-200812

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-07040iACV30,MCV31200307-200511

main04479-07080iACV30,MCV31200511-200605

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-06080iACV30..4FC200307-200503

04948FITTING KIT, DISC BRAKE, REAR

main04948-06010iACV30..4FC200307-200503

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iACV30..4FC200307-200503

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06010×2iACV30,MCV31..5F,5FC200307-200605

main47547-20010×2iMCV31..CVT200701

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-07050×2iACV30,MCV31..CP200605-200808

SUB

main47715-07060×2iMCV31..CVT200605

MAIN

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-06090×2iACV30..4FC200307-200503

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-06100×2iACV30..4FC200307-200503

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-06090iACV30..4FC200307-200503

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-06090iACV30..4FC200307-200503

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-06090iACV30..4FC200307-200503

47731BPISTON, REAR DISC BRAKE

main47731-07040×2iACV30..4FC200307-200503

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90080-52104×2iACV30..4FC200307-200503

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-06090iACV30..4FC200307-200503

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-06020×2iACV30..4FC200307-200503

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-07030×2iACV30..4FC200307-200503

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-41030×4iACV30..4FC200307-200503

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-11440×4iACV30,MCV31200307-200605

20 parts on this diagram · 1 diagram in section
