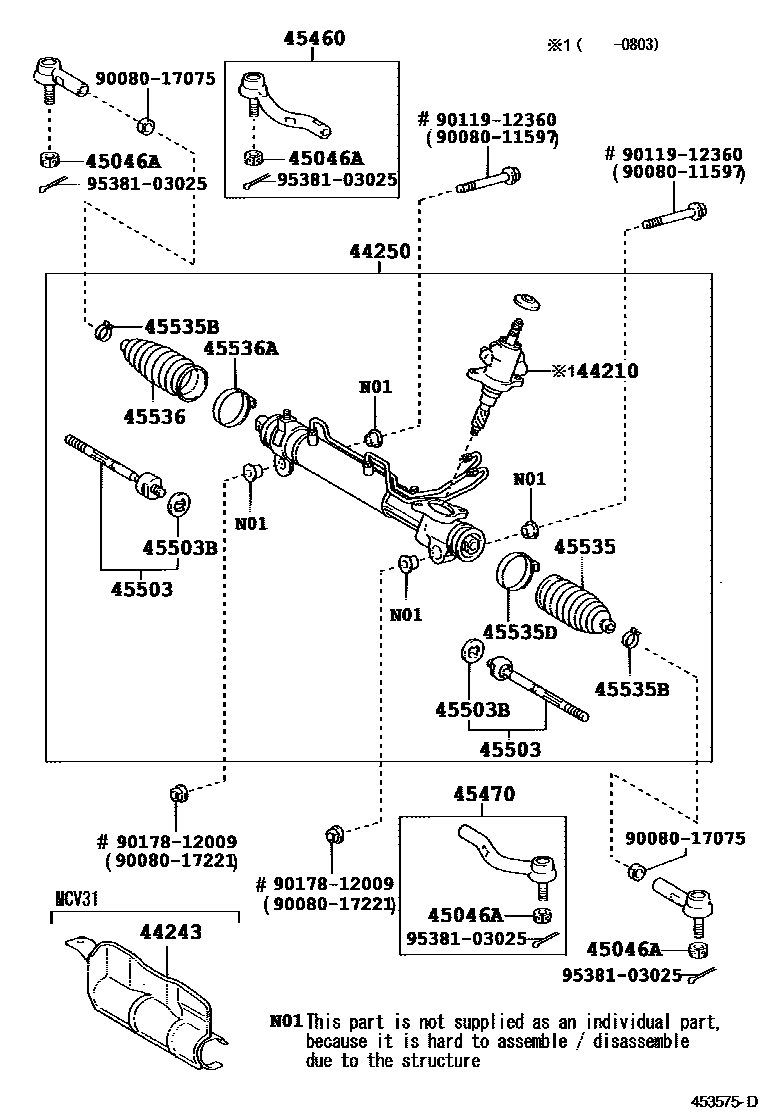

Toyota 284460 — FRONT STEERING GEAR & LINK
44210VALVE ASSY, POWER STEERING CONTROL
44243INSULATOR, POWER STEERING RACK HOUSING HEAT
45046ANUT, CASTLE(FOR TIE ROD END)
45503BWASHER, CLAW(FOR STEERING RACK END)
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9008011597
9008017075
9008017221
9011912360
9017812009
9538103025
19 parts on this diagram · 2 diagrams in section
FRONT STEERING GEAR & LINK for Toyota 284460
This section contains 21 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota 284460. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, VALVE ASSY, POWER STEERING CONTROL, INSULATOR, POWER STEERING RACK HOUSING HEAT, GEAR ASSY, POWER STEERING(FOR RACK & PINION).
