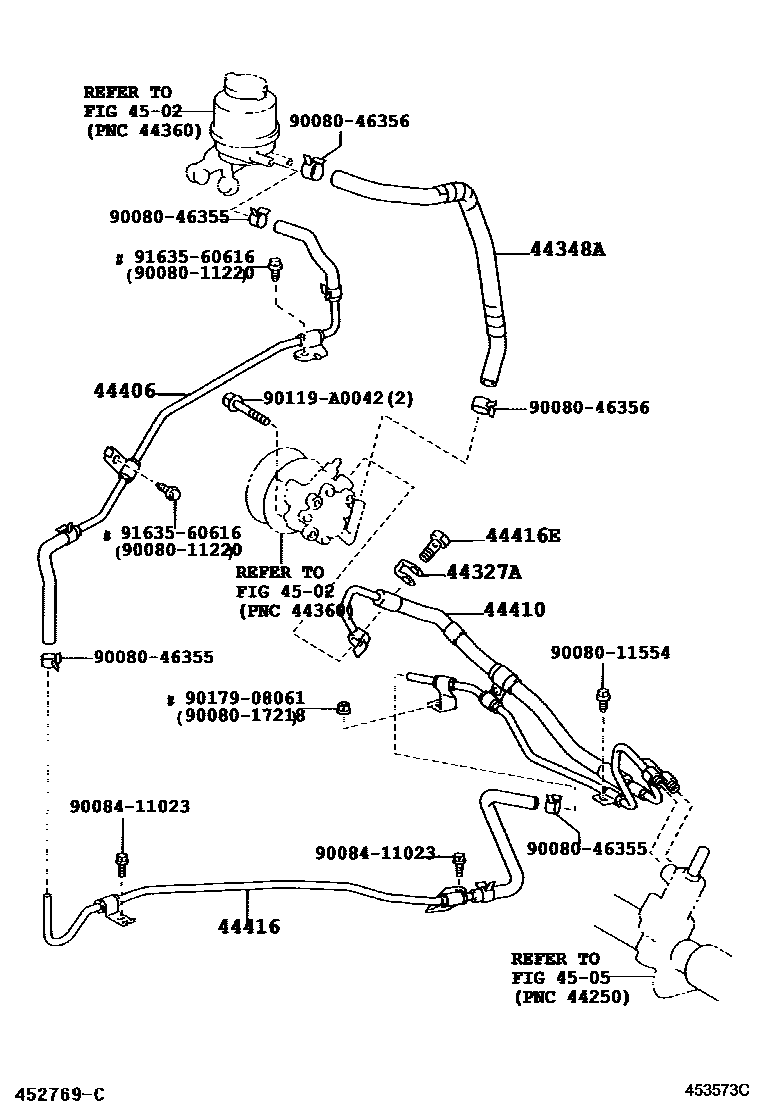

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV30,MCV31200605-200812

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06170iACV30200605-200808

main44348-06180iMCV31200307-200605

44406TUBE SUB-ASSY, RETURN

main44406-06100iACV30,MCV31..CP200605-200808

44410TUBE ASSY, PRESSURE FEED

main44410-06140iACV30200307-200601

main44410-06141iACV30200602-200605

main44410-06142iACV30200704-200808

main44410-06150iMCV31200307-200605

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06100iACV30..4FC200307-200503

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV30..4FC200307-200503

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9008011220

main90080-11220

9008011554

main90080-11554

9008017218

main90080-17218

9008046355

main90080-46355

9008046356

main90080-46356

9008411023

main90084-11023

90119A0042

main90119-A0042

9017908061

main90179-08061

9163560616

main91635-60616

17 parts on this diagram · 2 diagrams in section
