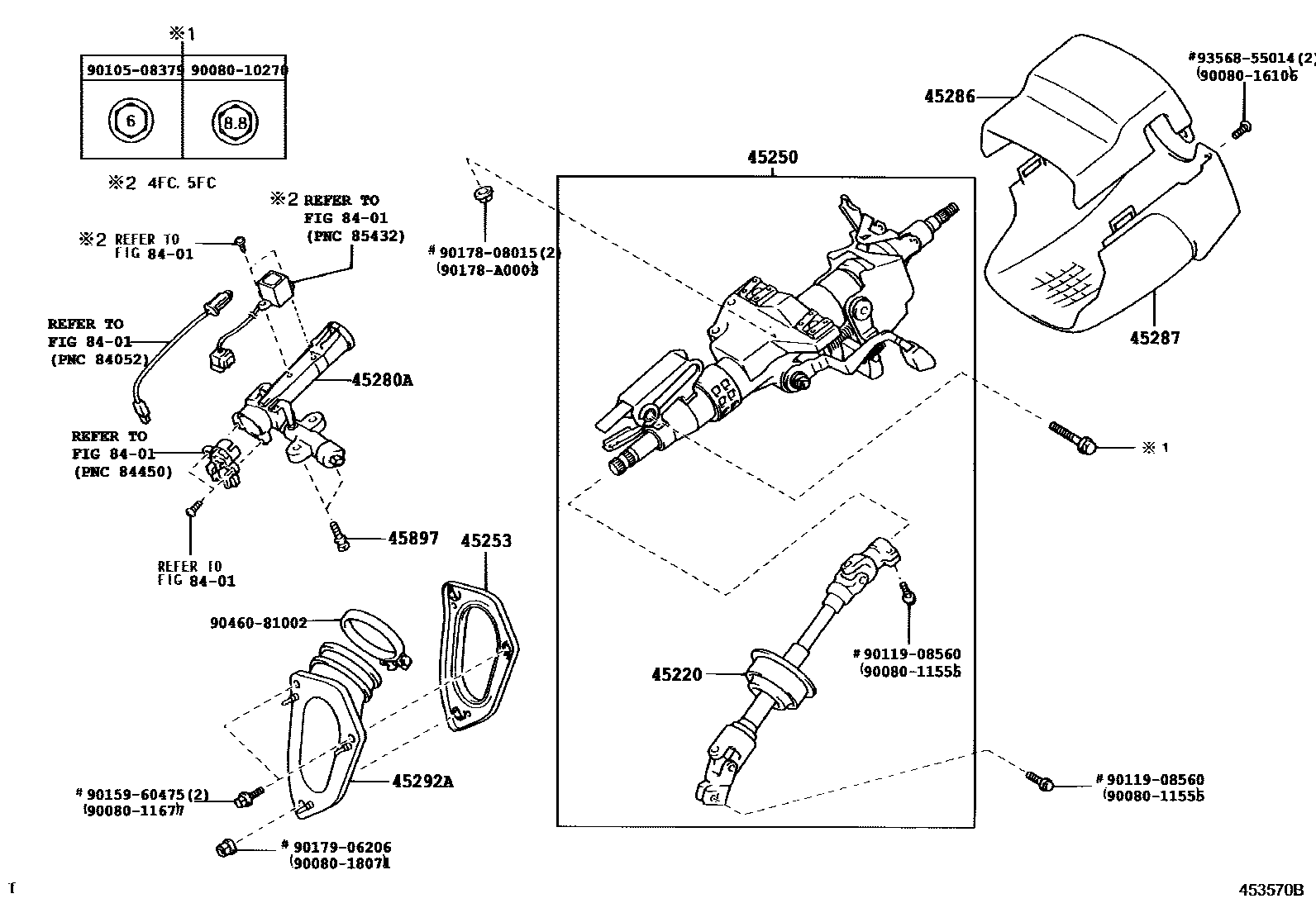

STEERING COLUMN & SHAFT

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33260iACV30,MCV31200507-200605

main45220-33270iACV30,MCV31..CP200610-200808

45250COLUMN ASSY, STEERING

main45250-06560iACV30,MCV31200605-200610

main45250-06561iMCV31..CVT200610

main45250-AA011iACV30,MCV31200307-200405

main45250-AA012iACV30,MCV31200405-200605

45253COVER, STEERING COLUMN HOLE

main45253-06020iACV30..4FC200307-200503

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-AA010iACV30,MCV31..4FC,5FC200307-200605

main45280-AA020iACV30..5F200605-200808

45286COVER, STEERING COLUMN

main45286-06240-A0iMCV31..CVT200605

IVORY,TRIM0#

main45286-06240-B0iACV30,MCV31..CP..SE; ACV30,MCV31..CP..SLE200605-200808

DK. STONE,TRIM1#; DK. STONE,TRIM10

main45286-06240-B1iMCV31..CVT..SE200605

DK.GRAY,TRIM11

main45286-AA010-A0iACV30,MCV31..5F,5FC200307-200605

IVORY,TRIM0#

main45286-AA010-B0iACV30..4FC..SE; ACV30..SLE200307-200503

DK. STONE,TRIM1#; DK. STONE,TRIM10

main45286-AA010-B1iACV30,MCV31..(5F,5FC)..SE200307-200605

DK.GRAY,TRIM11

45287COVER, STEERING COLUMN, LWR

main45287-06270-A0iACV30,MCV31..CP200605-200808

IVORY,TRIM0#

main45287-06270-B0iMCV31..CVT..SE; MCV31..CVT..SLE200605

DK. STONE,TRIM1#; DK. STONE,TRIM10

main45287-06270-B1iMCV31..CVT..SE200605

DK.GRAY,TRIM11

main45287-AA010-A0iACV30,MCV31..5F,5FC200307-200605

IVORY,TRIM0#

main45287-AA010-B0iACV30,MCV31..(5F,5FC)..SE; ACV30,MCV31..5FC..SLE200307-200605

DK. STONE,TRIM1#; DK. STONE,TRIM10

main45287-AA010-B1iACV30,MCV31..(5F,5FC)..SE200307-200605

DK.GRAY,TRIM11

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-06050iACV30..4FC200307-200503

45897BOLT, STEERING LOCK SET

main45897-12020×2iACV30,MCV31..CP200605-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010270

main90080-10270

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

9010508379

main90105-08379

9011908560

main90119-08560

9015960475

main90159-60475

9017808015

main90178-08015

90178A0003

main90178-A0003

9017906206

main90179-06206

9046081002

main90460-81002

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
