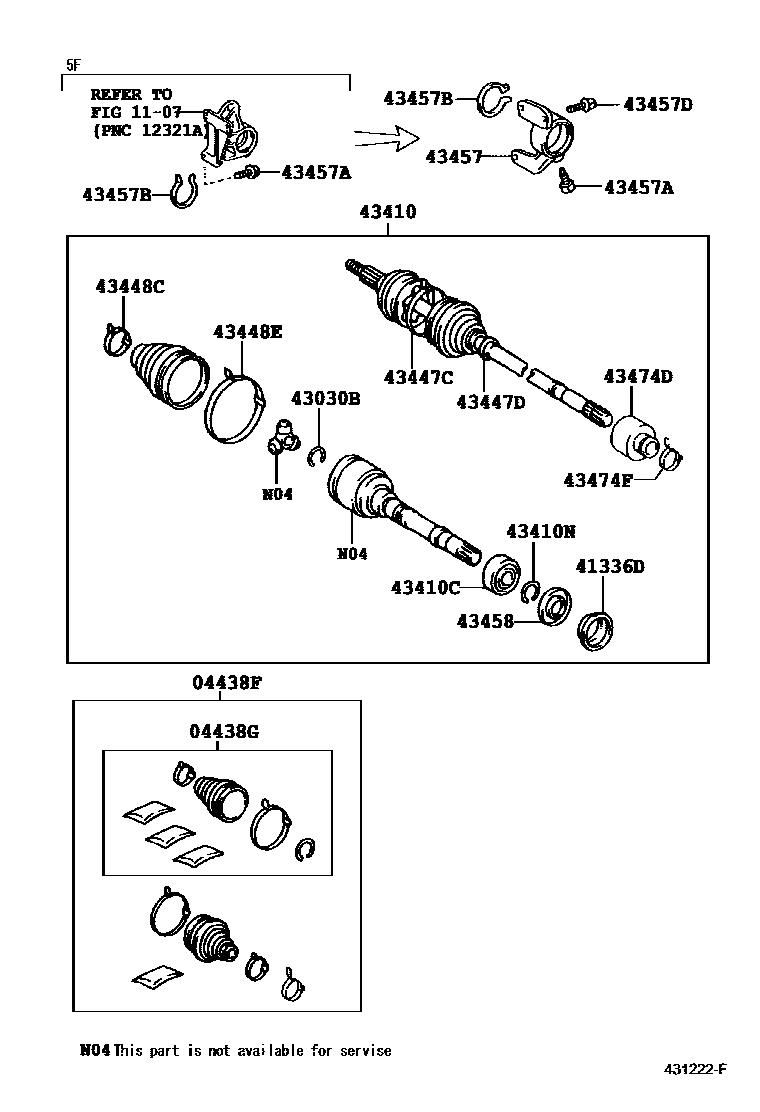

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06280i200605-200808

main04427-06290i200605-200808

main04438-06120i200307-200605

main04438-06140i200307-200605

main04438-08080i200307-200808

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-07010i200307-200808

main04438-08010i200307-200808

1107MOUNTING

→ Go to FIG 11-07

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020i200307-200808

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52118i200307-200808

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06221i200307-200808

main43410-06460i200307-200808

main43410-06480i200307-200808

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133i200307-200808

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013i200307-200808

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04040i200307-200808

main42345-06040i200307-200808

main42345-06080i200307-200808

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030i200307-200808

main42345-06090i200307-200808

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020i200307-200808

main42345-08070i200307-200808

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010i200307-200808

main42345-08060i200307-200808

43457BRACKET, DRIVE SHAFT BEARING

main43457-06020i200605-200808

main43457-08010i200307-200808

main43457-33020i200307-200605

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461i200307-200808

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002i200307-200808

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087i200307-200808

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020i200307-200808

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06011i200307-200808

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100i200307-200808
