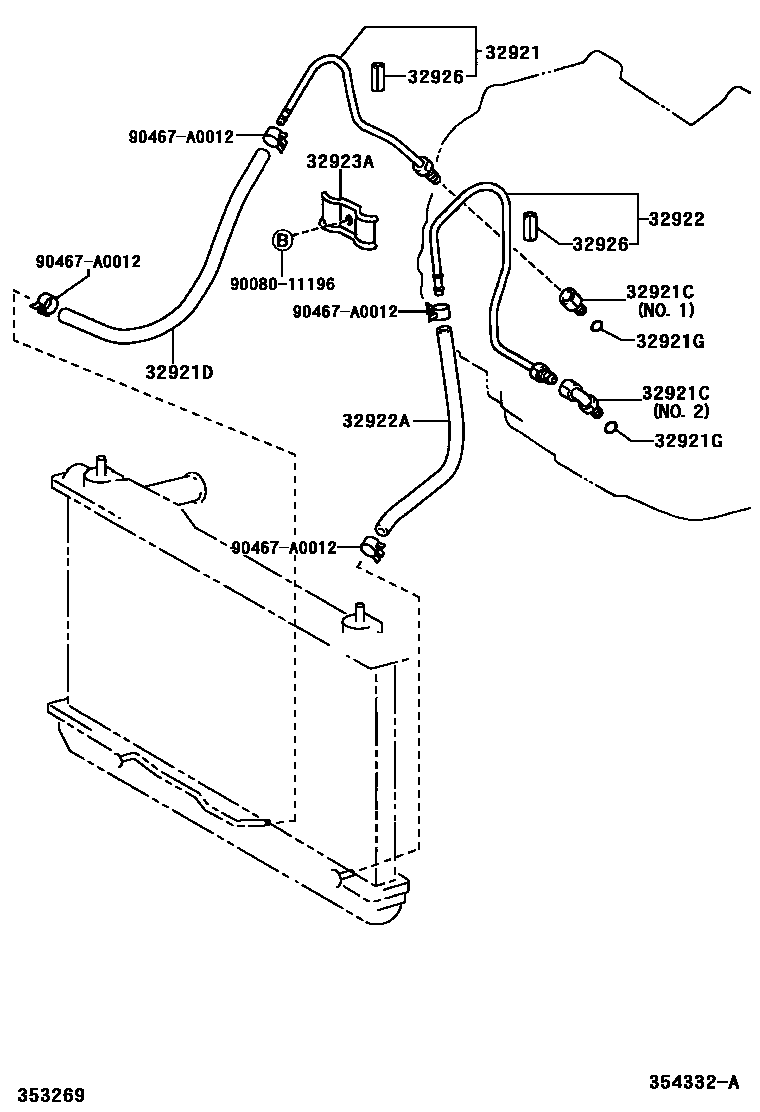

OIL COOLER & TUBE (ATM)

0001 1U241E,U250E 0002 1U151E

32921TUBE, OIL COOLER INLET, NO.1

main32921-06100iACV30..5FC200307-200605

main32921-06170iMCV31200307-200605

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iACV30,MCV31..CP..5FC200605-200808

NO.1

main90407-16010iACV30..4FC200307-200503

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main32941-33050iMCV31200307-200605

main90080-44123iACV30..4FC200307-200503

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACV30..5FC; MCV31..CP200605-200808

(J)

main90301-A0016×2iMCV31..CP200605-200808

(L)

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-06090iACV30..5FC200605-200808

main32922-06150iMCV31..CVT200605

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-33030iMCV31..CP200605-200808

main90080-44062iACV30..4FC200307-200503

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iMCV31..CVT200605

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-04010×2iACV30..4FC200307-200503

L=36,ID=10

9008011196

main90080-11196

90467A0012

main90467-A0012

10 parts on this diagram · 2 diagrams in section
