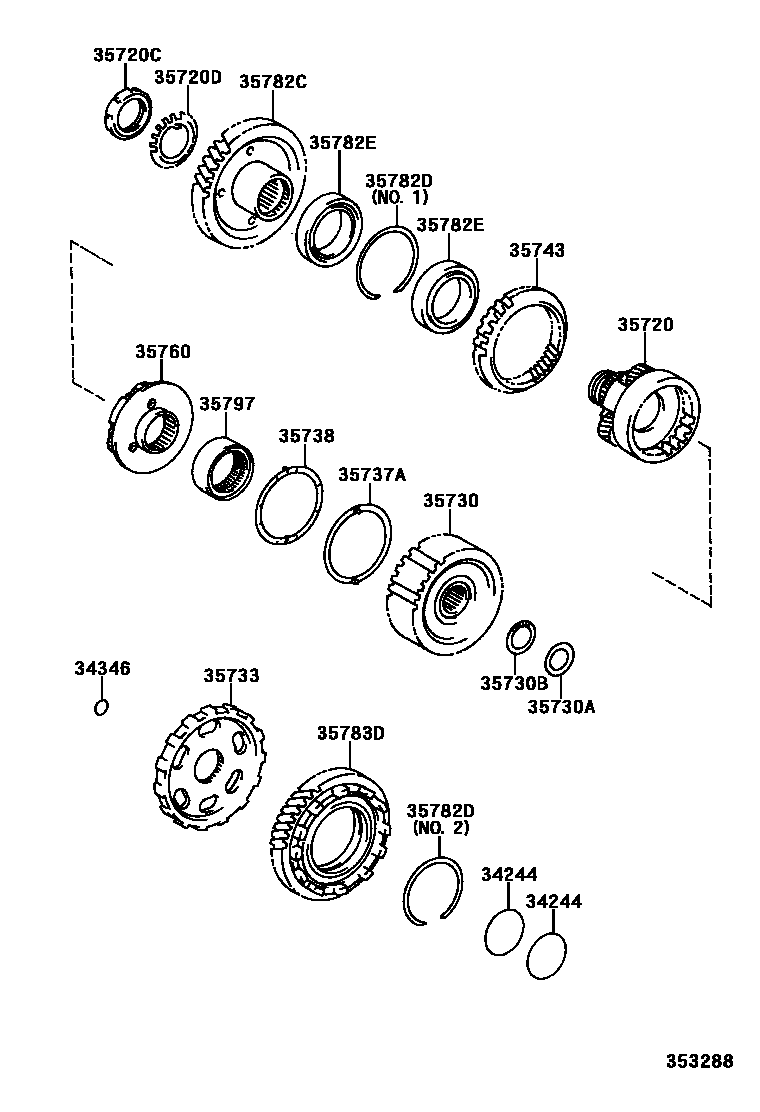

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
AISIN:REFER 35-01
35720GEAR ASSY, FRONT PLANETARY
TOYOTA:REFER 35-01
(J)TOYOTA:REFER35-01
AISIN:REFER 35-01
35720CNUT (FOR FRONT PLANETARY GEAR)
(J)
(L)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730GEAR ASSY, REAR PLANETARY SUN
TOYOTA:REFER 35-01
AISIN:REFER 35-01
AISIN:REFER 35-01
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
(L)
(J)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
(L)
NO.2 BLACK PAINTED
NO.2 BROWN PAINTED
*116,NO.1
*122,NO.1; NO.1
(J)
NO.2,T=3.4
NO.2,T=3.7
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
(L)
(J)
AISIN:REFER 35-01
35738WASHER, PLANETARY CARRIER THRUST, NO.2
(L)
(J)
35743GEAR, FRONT PLANETARY RING
(L)TOYOTA:REFER35-01
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35760GEAR ASSY, REAR PLANETARY
(L)TOYOTA:REFER35-01
AISIN:REFER 35-01
TOYOTA:REFER 35-01
35782CGEAR, COUNTER DRIVE
(L)TOYOTA:REFER35-01
AISIN:REFER 35-01
(J)TOYOTA:REFER35-01
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
(L),NO.1
*116,NO.2,(L)
NO.1
*122,NO.1
NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
*116
*122
*117 OR *118
35783DGEAR, COUNTER DRIVEN
(L)TOYOTA:REFER35-01
AISIN:REFER 35-01
(J)TOYOTA:REFER35-01
35797RACE, 1 WAY CLUTCH INNER
18 parts on this diagram · 3 diagrams in section
