TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

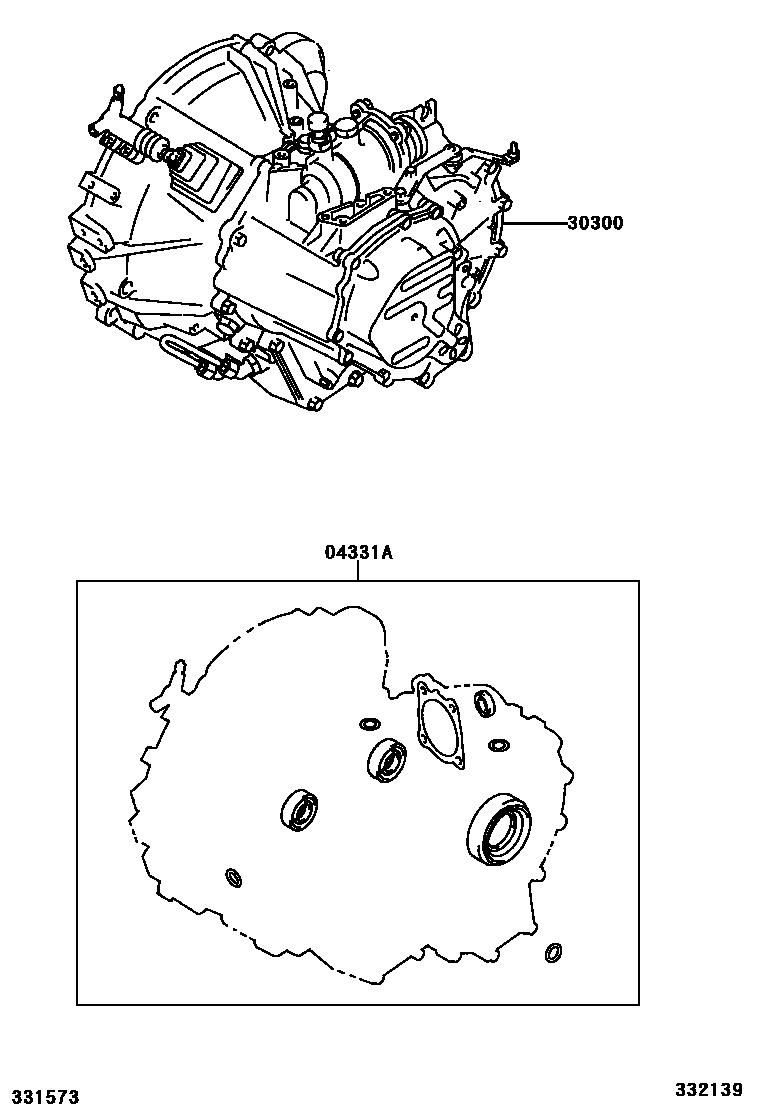

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-28020i200307-200503

main04331-64010i200503-200509

main04331-64011i200509-200605

30300TRANSAXLE ASSY, MANUAL

main30300-33230i200307-200503

E351

main30300-33231i200503-200605

E351

2 parts on this diagram · 1 diagram in section
