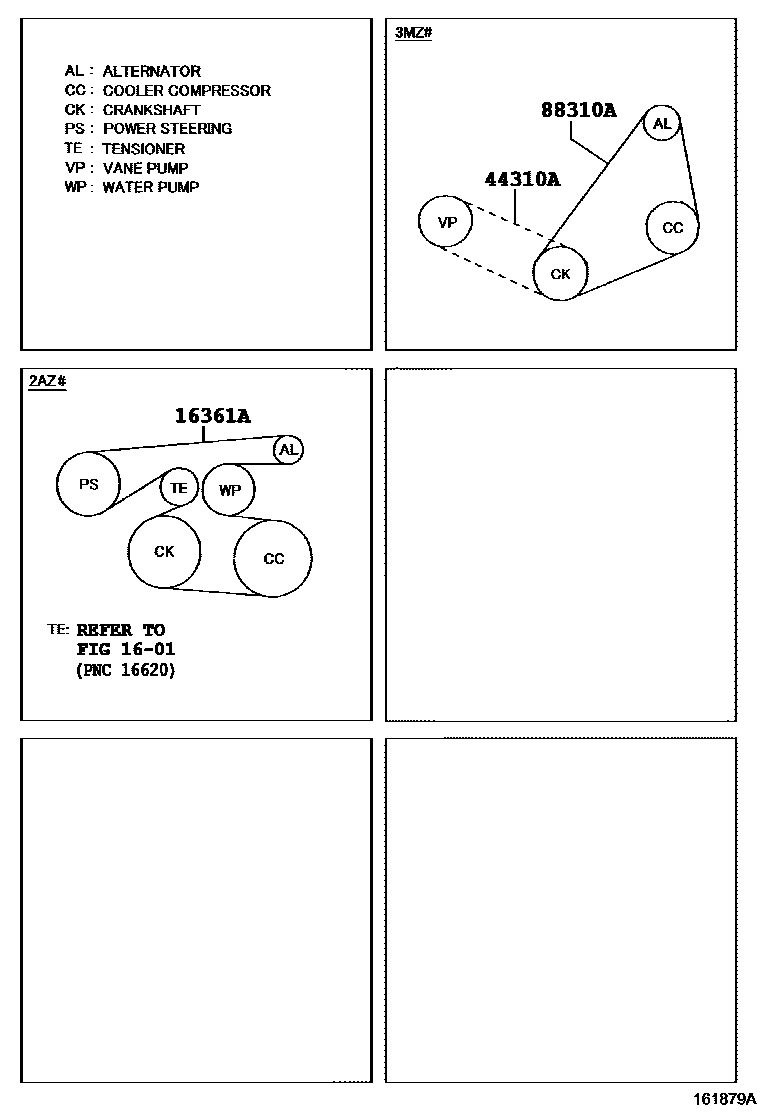

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02503i2AZFE..ACV30200307-200403

(J)

main90916-02598i2AZFE..ACV30200605-200808

(J)

main90916-02599i2AZFE..ACV30..5F,5FC200404-200605

(J)

main90916-A2002i2AZFE..ACV30200307-200403

(L)

main90916-A2005i2AZFE..ACV30..4FC200404-200503

(L)

main90916-A2012i2AZFE..ACV30200605-200808

(L)

44310ABELT, V(FOR VANE PUMP)

main90080-91088iMCV31200307-200406

L=878

main90916-A2009iMCV31..CP200605-200808

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91147iMCV31..CVT200605

L=1040

main99366-31040iMCV31200307-200407

L=1040,(J)

4 parts on this diagram · 1 diagram in section
