WATER PUMP

0001 1 0002 1 0003 1

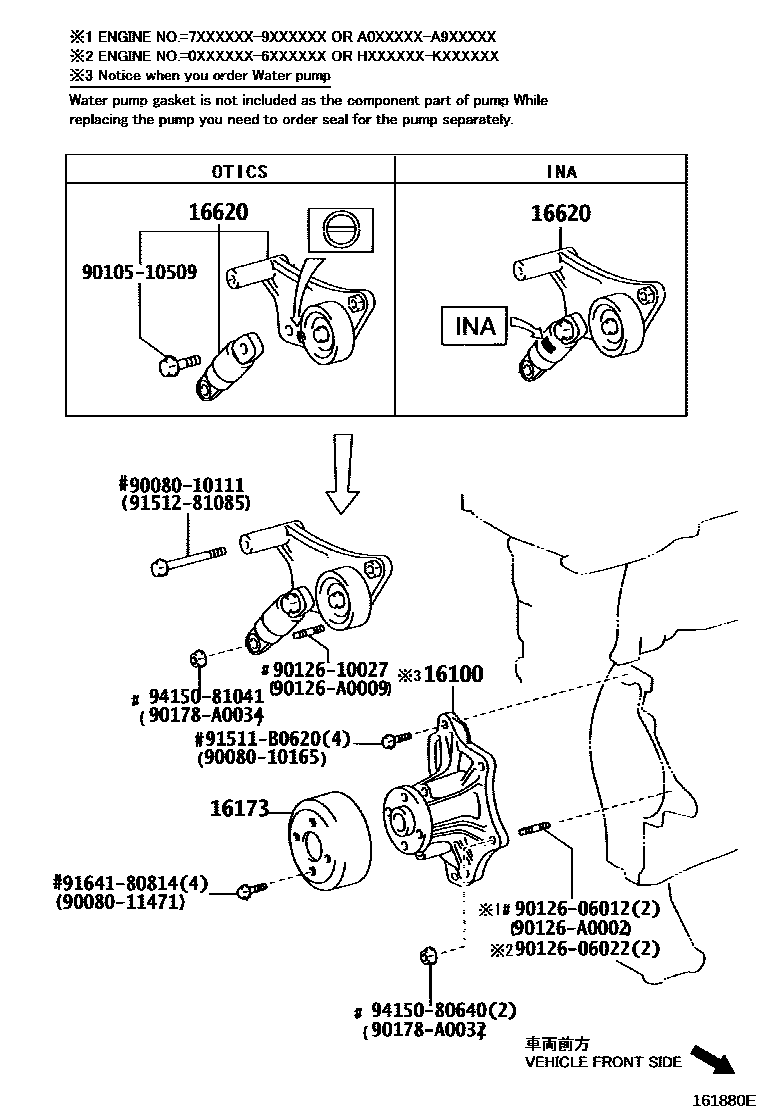

16100PUMP ASSY, ENGINE WATER

main16100-09070i3MZFE..MCV31200307-200605

main16100-0H010i2AZFE..ACV30200605-200808

(L)

main16100-28040i2AZFE..ACV30200601-200605

*195

main16100-29085i3MZFE..MCV31..CP200612-200808

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACV30200307-200605

*108

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACV30200805-200808

main16620-28011i2AZFE..ACV30200307-200605

*108

main16620-28040i2AZFE..ACV30200605-200610

(J)

main16620-28041i2AZFE..ACV30200610-200805

(J)

9008010111

main90080-10111

9008010165

main90080-10165

9008011471

main90080-11471

9010510509

main90105-10509

9012606012

main90126-06012

9012606022

main90126-06022

9012610027

main90126-10027

90126A0002

main90126-A0002

90126A0009

main90126-A0009

90178A0032

main90178-A0032

90178A0034

main90178-A0034

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

19 parts on this diagram · 3 diagrams in section
