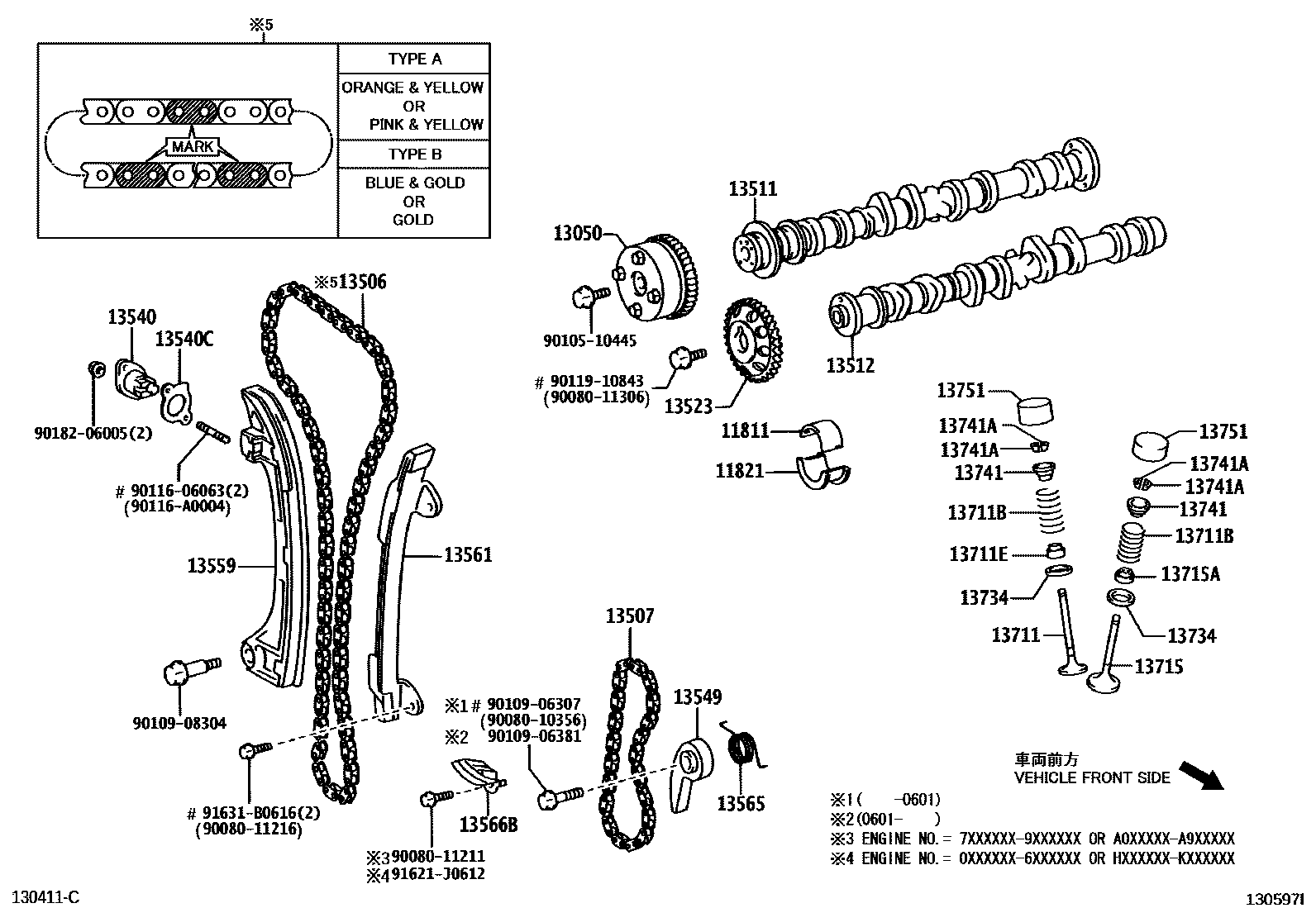

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1
MARK 2
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1,*108
MARK 2
MARK 3,*195
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(L),*108
(J)
(J)
(J),*108
*195,(J),*108
13506CHAIN SUB-ASSY
(L),*108
(L)
(J),*108
*195 TYPE A:REF ILL.,(J),*108
*195 TYPE B:REF ILL.
13507CHAIN SUB-ASSY, NO.2
*108
13511CAMSHAFT
(L),*195
(L)
(J),*108
(J)
13512CAMSHAFT, NO.2
(L),*195
(L)
(J),*195
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
*108
*195
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J),*108
13540CGASKET(FOR CHAIN TENSIONER)
*108
*195
13549PLATE, CHAIN TENSIONER
*108
13559SLIPPER, CHAIN TENSIONER
(L),*108
(J),*108
13561DAMPER, CHAIN VIBRATION, NO.1
(L),*108
*195
13565SPRING, CHAIN DAMPER
*195
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
(L)
(L),*108
(J)
*195
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(L),*108
(J)
(J),*108
13711ESEAL, INTAKE VALVE STEM OIL
(L),*108
(J),*108
13715VALVE, EXHAUST
(L)
(L),*108
(L)
(J)
(J),*108
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L),*108
(J),*108
13734SEAT, VALVE SPRING
(L)
*108
13741RETAINER, VALVE SPRING
(L)
*195
13741ALOCK, VALVE SPRING RETAINER
*108
13751LIFTER, VALVE
T=5.06,*108
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16,*108
T=5.18,*108
T=5.20,*108
T=5.22,*108
T=5.24
T=5.26,*108
T=5.28
T=5.30,*108
T=5.32,*108
T=5.34
T=5.36
T=5.38,*108
T=5.40,*108
T=5.42,*108
T=5.44
T=5.46,*108
T=5.48,*108
T=5.50
T=5.52
T=5.54,*108
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64,*108
T=5.66,*108
T=5.68,*108
T=5.70,*108
T=5.72
T=5.74
T=5.06,*195
T=5.08,*195
T=5.10,*195
T=5.12,*195
T=5.14,*195
T=5.16,*195
T=5.18,*195
T=5.20,*195
T=5.22,*195
T=5.24,*195
T=5.26,*195
T=5.28,*195
T=5.30,*195
T=5.32,*195
T=5.34,*195
T=5.36,*195
T=5.38,*195
T=5.40,*195
T=5.42,*195
T=5.44,*195
T=5.46,*195
T=5.48,*195
T=5.50,*195
T=5.52,*195
T=5.54,*195
T=5.56,*195
T=5.58,*195
T=5.60,*195
T=5.62,*195
T=5.64,*195
T=5.66,*195
T=5.68,*195
T=5.70,*195
T=5.72,*195
T=5.74,*195
9008010356
main90080-10356
9008011211
main90080-11211
9008011216
main90080-11216
9008011306
main90080-11306
9010510445
main90105-10445
9010906307
main90109-06307
9010906381
main90109-06381
9010908304
main90109-08304
9011606063
main90116-06063
90116A0004
main90116-A0004
9011910843
main90119-10843
9018206005
main90182-06005
91621J0612
main91621-J0612
91631B0616
main91631-B0616
38 parts on this diagram · 3 diagrams in section
