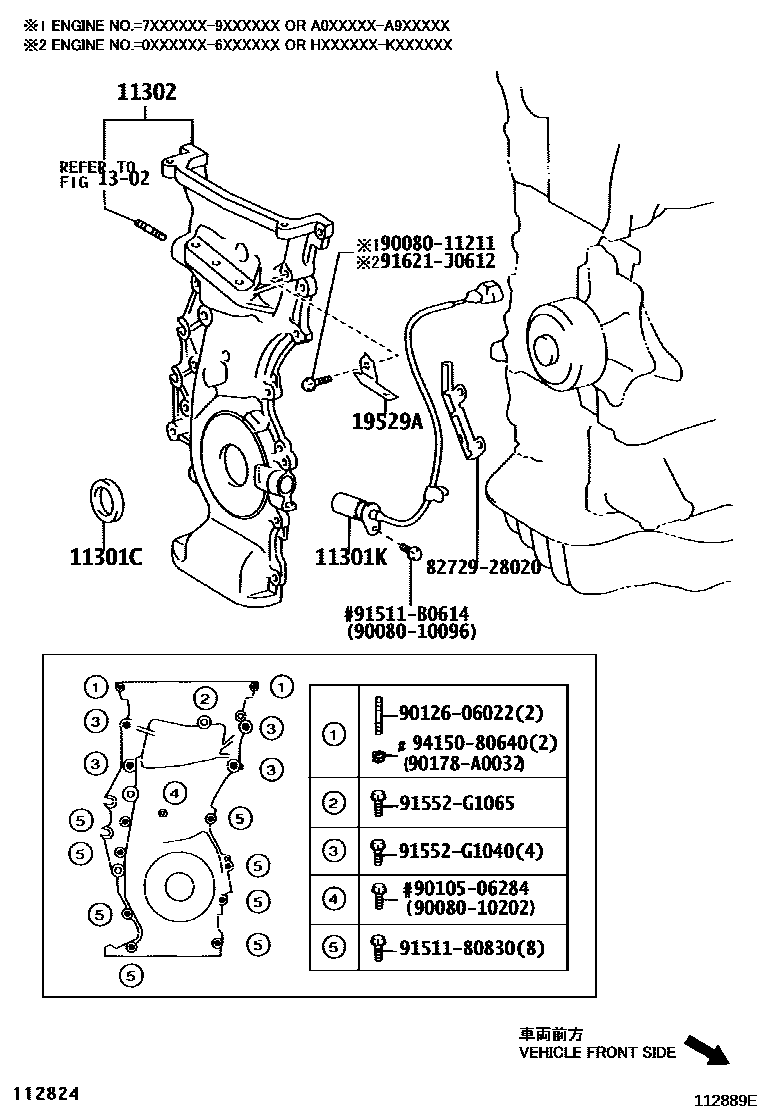

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38089i2AZFE..ACV30200601-200605

*195

main90311-38098i2AZFE..ACV30200307-200605

*108

main90311-38098i2AZFE..ACV30200605-200808

11301KSENSOR, CRANK POSITION

main90080-19024i2AZFE..ACV30200307-200605

*108

main90080-19024i2AZFE..ACV30200605-200808

main90919-05047i2AZFE..ACV30200601-200605

*195

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H010i2AZFE..ACV30200307-200509

*108

main11310-0H011i2AZFE..ACV30200605-200808

(L)

main11310-0H011i2AZFE..ACV30200509-200605

(L),*108

main11310-28071i2AZFE..ACV30200601-200605

*195

main11310-28071i2AZFE..ACV30200509-200605

(J),*108

main11310-28071i2AZFE..ACV30200605-200808

(J)

1302

19529ACLAMP

main19529-28010i2AZFE..ACV30200307-200605

*108

main19529-28010i2AZFE..ACV30200605-200808

main19529-28010i2AZFE..ACV30200601-200605

*195

8272928020

main82729-28020

9008010096

main90080-10096

9008010202

main90080-10202

9008011211

main90080-11211

9010506284

main90105-06284

9012606022

main90126-06022

90178A0032

main90178-A0032

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

18 parts on this diagram · 3 diagrams in section
