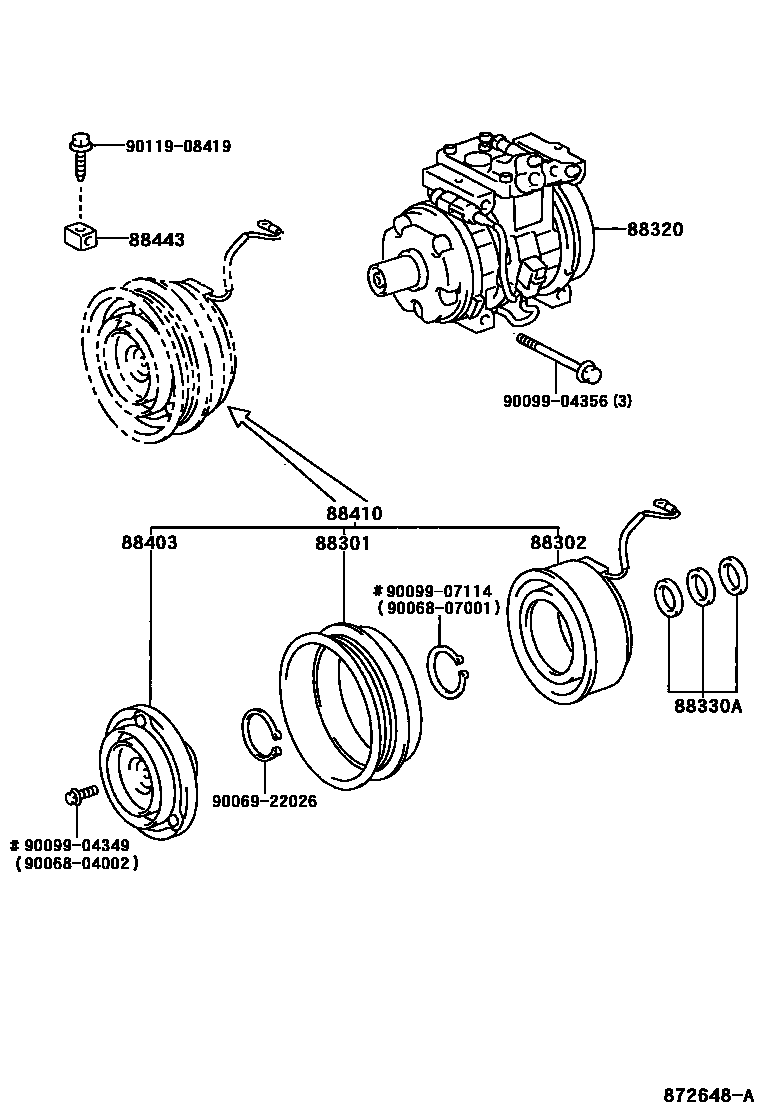

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-06040iSXV20199806-200107

main88412-07010iMCV20200207-200212

main88412-42010iACV20200107-200212

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-06030iSXV20199806-200107

main88411-06050iACV20200107-200212

main88411-07010iMCV20200207-200212

88320COMPRESSOR ASSY, COOLER

main88320-06050iMCV20199806-200207

main88320-06070iSXV20199806-200107

main88320-06080iACV20200107-200212

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACV20,MCV20,SXV20199806-200207

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-06050iSXV20199806-200107

main88403-30290iMCV20199806-200207

main88403-32010iACV20200107-200212

88410CLUTCH ASSY, MAGNET

main88410-06050iMCV20200207-200212

main88410-06070iSXV20199806-200107

main88410-06080iACV20200107-200212

88443COLLAR, IDLE PULLEY

main88443-03010iSXV20199806-200107

9006804002

main90068-04002

9006807001

main90068-07001

9006922026

main90069-22026

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9011908419

main90119-08419

14 parts on this diagram · 5 diagrams in section
