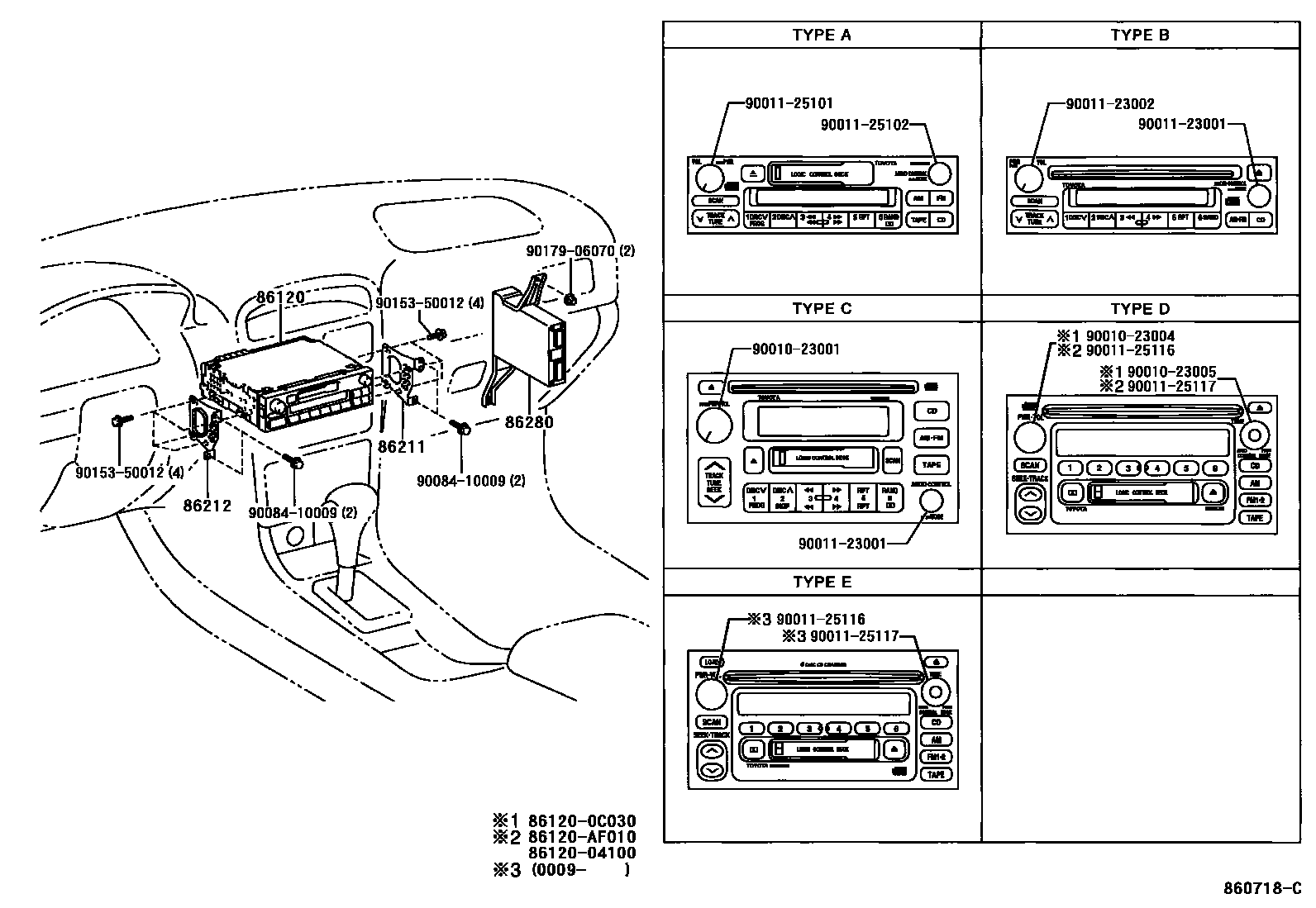

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-04090iMCV20,SXV20199806-199908

MATSUSHITA,ID=A56409,TYPE A:REFER TO ILLUSTRATION

main86120-04100iACV20,MCV20200207-200212

MATSUSHITA,ID=A56813,TYPE D:REFER TO ILLUSTRATION

main86120-08020iMCV20,SXV20199806-199908

FUJITSU TEN,ID=11801,TYPE B:REFER TO ILLUSTRATION

main86120-08130iACV20,MCV20,SXV20200009-200207

MATSUSHITA,ID=A56817,TYPE E:REFER TO ILLUSTRATION

main86120-0C030iMCV20,SXV20199908-200009

FUJITSU TEN USA,TYPE D:REFER TO ILLUSTRATION & W(DIVERSITY ANTENNA)

main86120-0C040iMCV20,SXV20199908-200009

MATSUSHITA,ID=56811,TYPE E:REFER TO ILLUSTRATION

main86120-33220iMCV20,SXV20199806-199908

FUJITSU TEN,ID=16810,TYPE C:REFER TO ILLUSTRATION

main86120-AA020iMCV20,SXV20199806-199908

FUJITSU TEN USA,TYPE C:REFER TO ILLUSTRATION & W(DIVERSITY ANTENNA)

main86120-AA030iMCV20,SXV20199806-199908

FUJITSU TEN USA,TYPE C:REFER TO ILLUSTRATION

main86120-AF010iACV20,MCV20,SXV20200009-200207

FUJITSU TEN USA,TYPE D:REFER TO ILLUSTRATION & W(DIVERSITY ANTENNA)

86211BRACKET, RADIO, NO.1

main86211-AA020iACV20,MCV20,SXV20199806-200207

86212BRACKET, RADIO, NO.2

main86212-AA020iACV20,MCV20,SXV20199806-200207

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-AA030iMCV20,SXV20199806-199908

main86280-AA050iMCV20,SXV20..CVT200002-200107

main86280-AA051iACV20,MCV20..CVT200107-200212

main86280-AA060iMCV20,SXV20..CP199908-200107

main86280-AA061iACV20,MCV20..CP200107-200207

9001023001

main90010-23001

9001023004

main90010-23004

9001023005

main90010-23005

9001123001

main90011-23001

9001123002

main90011-23002

9001125101

main90011-25101

9001125102

main90011-25102

9001125116

main90011-25116

9001125117

main90011-25117

9008410009

main90084-10009

9015350012

main90153-50012

9017906070

main90179-06070

16 parts on this diagram · 2 diagrams in section
