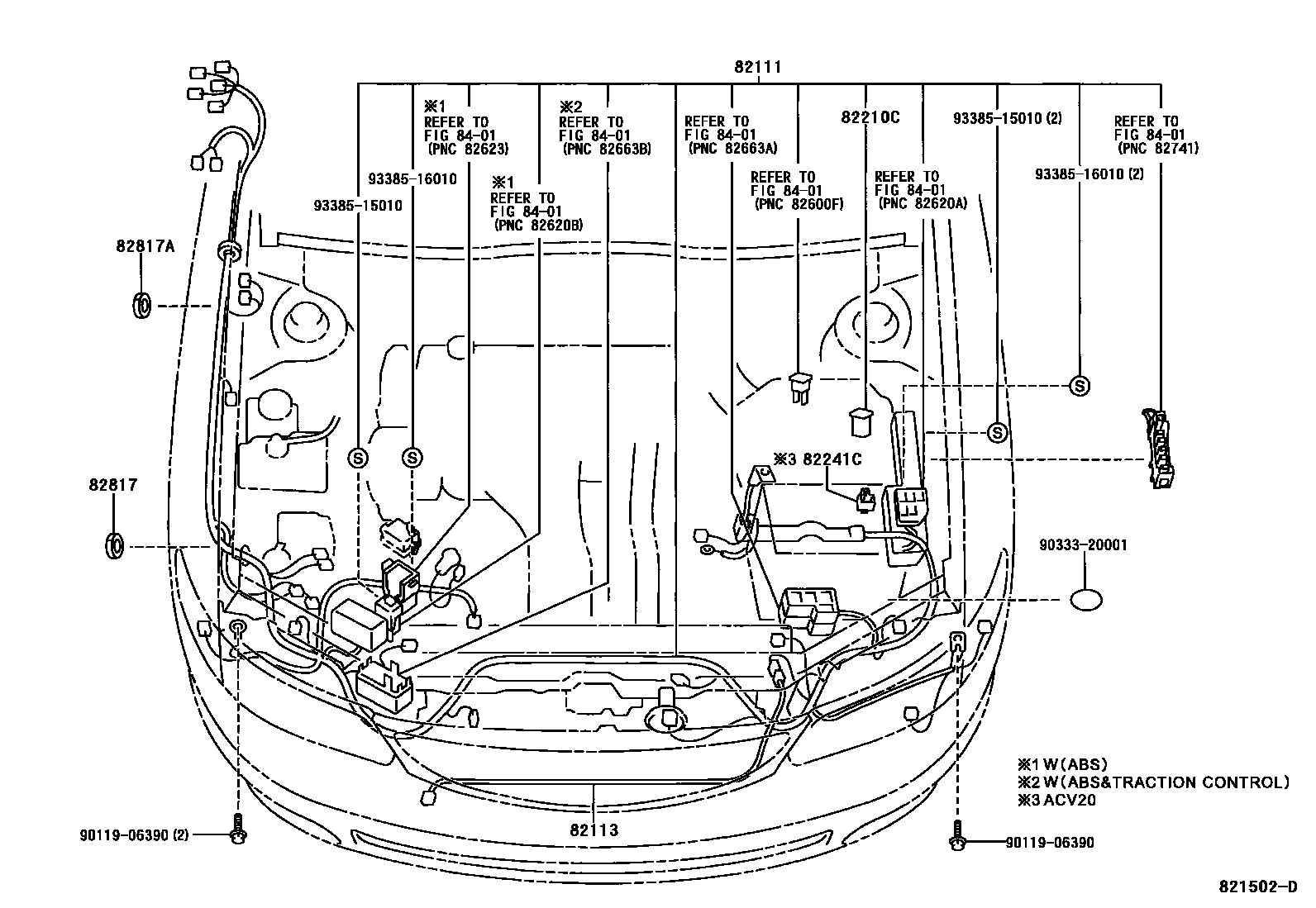

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(ENGINE IMMOBILIZER SYSTEM)
W(ENGINE IMMOBILIZER SYSTEM)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(ABS & RUNNING LIGHT)
W(ABS & RUNNING LIGHT)
CALIFORNIA SPEC & W(DAY TIME RUNNING LIGHT SYSTEM); W(DAY TIME RUNNING LIGHT SYSTEM)
W(DAY TIME RUNNING LIGHT SYSTEM)
CALIFORNIA SPEC & W(TRACTION CONTROL & RUNNING LIGHT); W(TRACTION CONTROL)
W(TRACTION CONTROL & RUNNING LIGHT); W(TRACTION CONTROL)
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC & W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(TRACTION CONTROL)
W(ABS & RUNNING LIGHT)
W(DAY TIME RUNNING LIGHT SYSTEM);CALIFORNIA SPEC & W(DAY TIME RUNNING LIGHT SYSTEM)
CALIFORNIA SPEC & W(DAY TIME RUNNING LIGHT SYSTEM & TRACTION CONTROL);W(DAY TIME RUNNING LIGHT SYSTEM & TRACTION CONTROL);W(TRACTION CONTROL)
CALIFORNIA SPEC
CALIFORNIA SPEC & W(TRACTION CONTROL)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(TRACTION CONTROL)
W(ABS)
W(TRACTION CONTROL)
82210CFUSIBLE LINK
60A,TERM.:MALE,YEL
100A,TERM.:MALE,BLUE
50A,TERM.:FEMALE,RED
82241CWIRE, RELAY
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
8401SWITCH & RELAY & COMPUTER
9011906390
main90119-06390
9033320001
main90333-20001
9338515010
main93385-15010
9338516010
main93385-16010
11 parts on this diagram · 14 diagrams in section
