INTERIOR LAMP

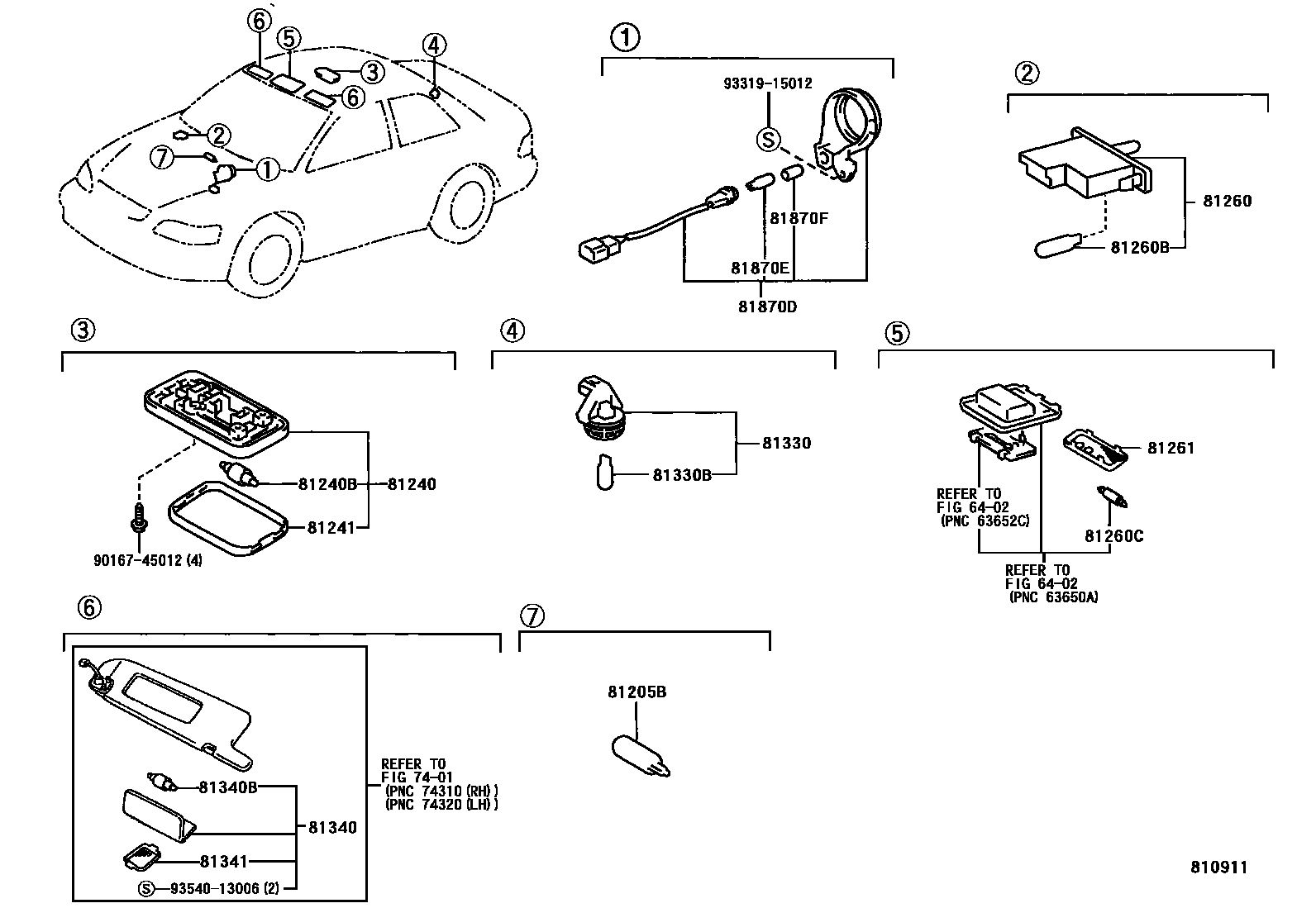

Parts diagram

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

7401ARMREST & VISOR

→ Go to FIG 74-01

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014i199806-200207

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-06010-A1i199806-200107

IVORY,TRIM0#,STANLEY

main81240-06010-B4i199806-200107

MD.GRAY,TRIM1#,STANLEY

main81240-AA010-A1i199806-200212

IVORY,TRIM0#,DONNELLY

main81240-AA010-B2i199806-200212

MD.GRAY,TRIM1#,DONNELLY

81240BBULB, ROOM LAMP, NO.1

main90080-81029i199806-200207

12V 8W,II STANLEY

main90084-98054i199806-200207

12V 8W,DONNELLY

81241LENS, ROOM LAMP, NO.1

main81241-06020i199806-200207

II STANLEY

main81241-AA010i199806-200207

DONNELLY

81260LAMP ASSY, GLOVE BOX

main81260-33030i200207-200212

81260BBULB(FOR GLOVE BOX)

main90981-11018i200207-200212

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90084-98049i199806-200207

12V 8W

main90981-12005×2i200002-200212

12V 8W

81261LENS AND COVER, MAP LAMP

main81231-AA010i199806-200207

main81261-14080i200002-200212

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02010i199806-200207

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i199806-200207

12V 3.8W

81340LAMP ASSY, VANITY

main81350-AC030-A2×2i199806-200212

IVORY,TRIM0#

main81350-AC030-B3×2i199806-200212

MD.GRAY,TRIM1#

main81350-AC030-C0×2i200002-200212

BLACK,TRIM1#

81340BBULB (FOR VANITY LAMP)

main90084-98013×2i199806-200207

81341LENS, VANITY LAMP

main81351-AC010×2i199806-200207

81870DLAMP ASSY, KEY CYLINDER

main81870-33030i199806-200002

main81870-33050i199806-199908

W(ENGINE IMMOBILIZER SYSTEM)

main81870-41020i200008-200207

W(ENGINE IMMOBILIZER SYSTEM)

81870EBULB, KEY CYLINDER LAMP

main90981-11014i199806-199908

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070i199806-199908

9016745012

main90167-45012

9331915012

main93319-15012

9354013006

main93540-13006

21 parts on this diagram · 2 diagrams in section
