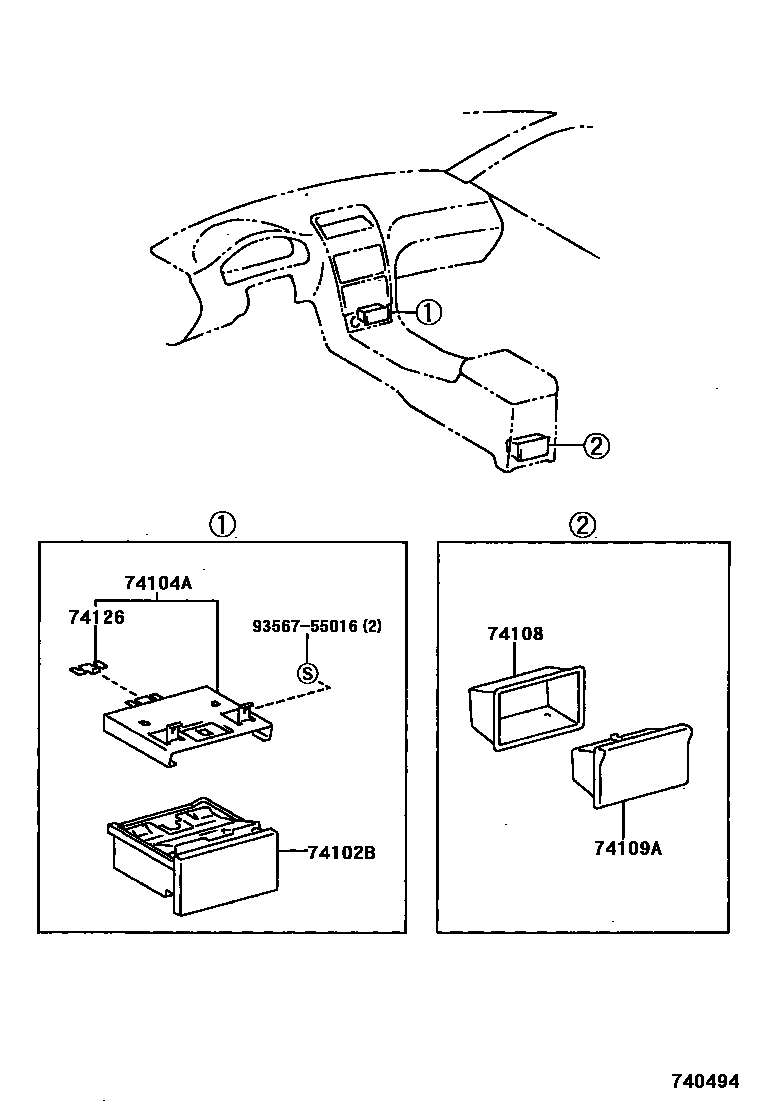

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-AA010iACV20,MCV20,SXV20199806-200212

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-AA010iACV20,MCV20,SXV20199806-200212

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-32010iACV20,MCV20,SXV20199806-200212

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-32040-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

sub74109-32040

main74109-32040-B2iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

sub74109-32040

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iMCV20,SXV20199806-200010

main74126-AA010iACV20,MCV20,SXV20200010-200212

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
