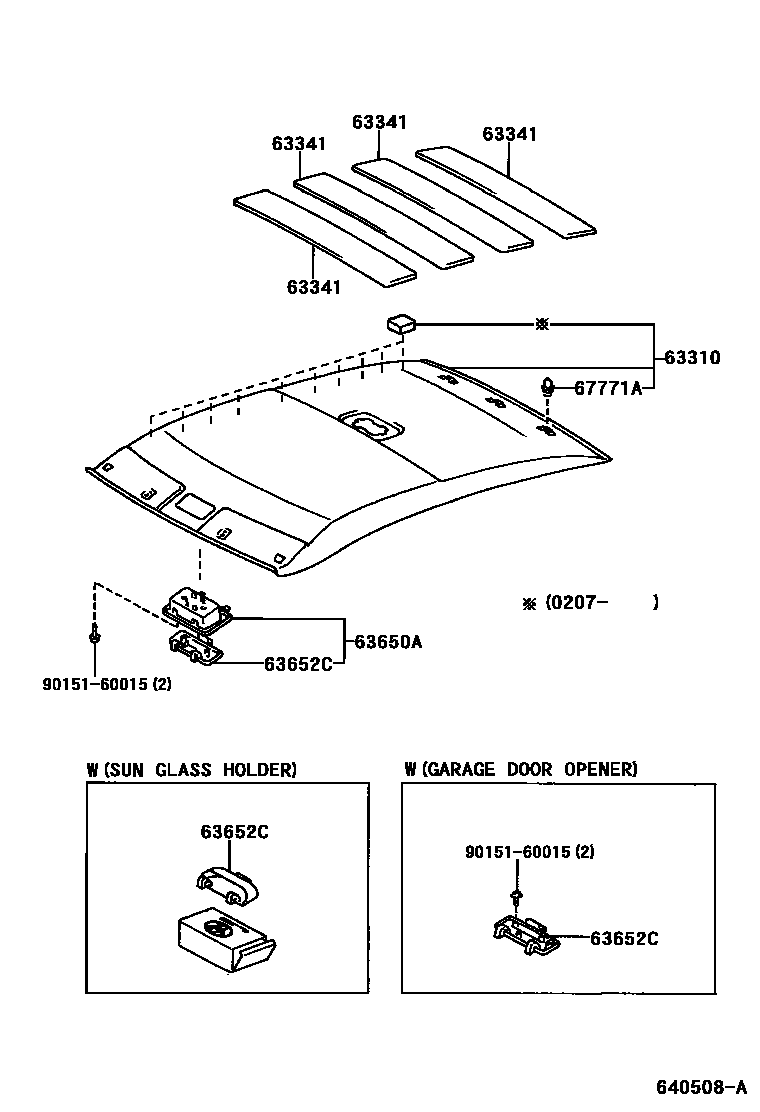

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-06070-A1iACV20,MCV20,SXV20..CP199806-200207

IVORY,TRIM0#

main63310-06070-B0iACV20,MCV20,SXV20..CP199806-200207

MEDIUM GRAY,TRIM1#

main63310-06090-A1iACV20,MCV20,SXV20..CP199806-200212

W(MOON ROOF),IVORY,TRIM0#

main63310-06090-B0iACV20,MCV20,SXV20..CP199806-200212

W(MOON ROOF),MEDIUM GRAY,TRIM1#

main63310-06260-A0iACV20,MCV20..CP200207-200212

IVORY,TRIM0#

main63310-06260-B0iACV20,MCV20..CP200207-200212

MEDIUM GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-AA010×4iACV20,MCV20,SXV20..CP199806-200207

63650ABOX ASSY, ROOF CONSOLE

main63650-AA011-A1iACV20,MCV20,SXV20..CP199806-200212

IVORY,TRIM0#

main63650-AA011-B1iACV20,MCV20,SXV20..CP199806-200212

MD.GRAY,TRIM1#

main63660-06010-A0iACV20,MCV20,SXV20..CP199806-200212

W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM0#

main63660-06010-B0iACV20,MCV20,SXV20..CP199806-200212

W(GARAGE DOOR OPENER & MOON ROOF),MD.GRAY,TRIM1#

main63660-AA011-A1iACV20,MCV20,SXV20..CP199806-200212

W(MOON ROOF),IVORY,TRIM0#

main63660-AA011-B2iACV20,MCV20,SXV20..CP199806-200212

W(MOON ROOF),MD.GRAY,TRIM1#

63652CCOVER, ROOF CONSOLE BOX

main63652-06010-A0iACV20,MCV20,SXV20..CP199806-200212

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main63652-06010-B0iACV20,MCV20,SXV20..CP199806-200212

W(GARAGE DOOR OPENER),MD.GRAY,TRIM1#

main63652-AA011-A1iACV20,MCV20,SXV20..CP199806-200212

IVORY,TRIM0#

main63652-AA011-B3iACV20,MCV20,SXV20..CP199806-200212

MD.GRAY,TRIM1#

main63652-AA031-A1iACV20,MCV20,SXV20..CP199806-200212

W(SUNGLASS HOLDER),IVORY,TRIM0#

main63652-AA031-B3iACV20,MCV20,SXV20..CP199806-200212

W(SUNGLASS HOLDER),MD.GRAY,TRIM1#

67771ARETAINER, ROOF HEADLINING

main67771-12040×3iACV20,MCV20,SXV20..CP199806-200207

9015160015

main90151-60015

6 parts on this diagram · 2 diagrams in section
