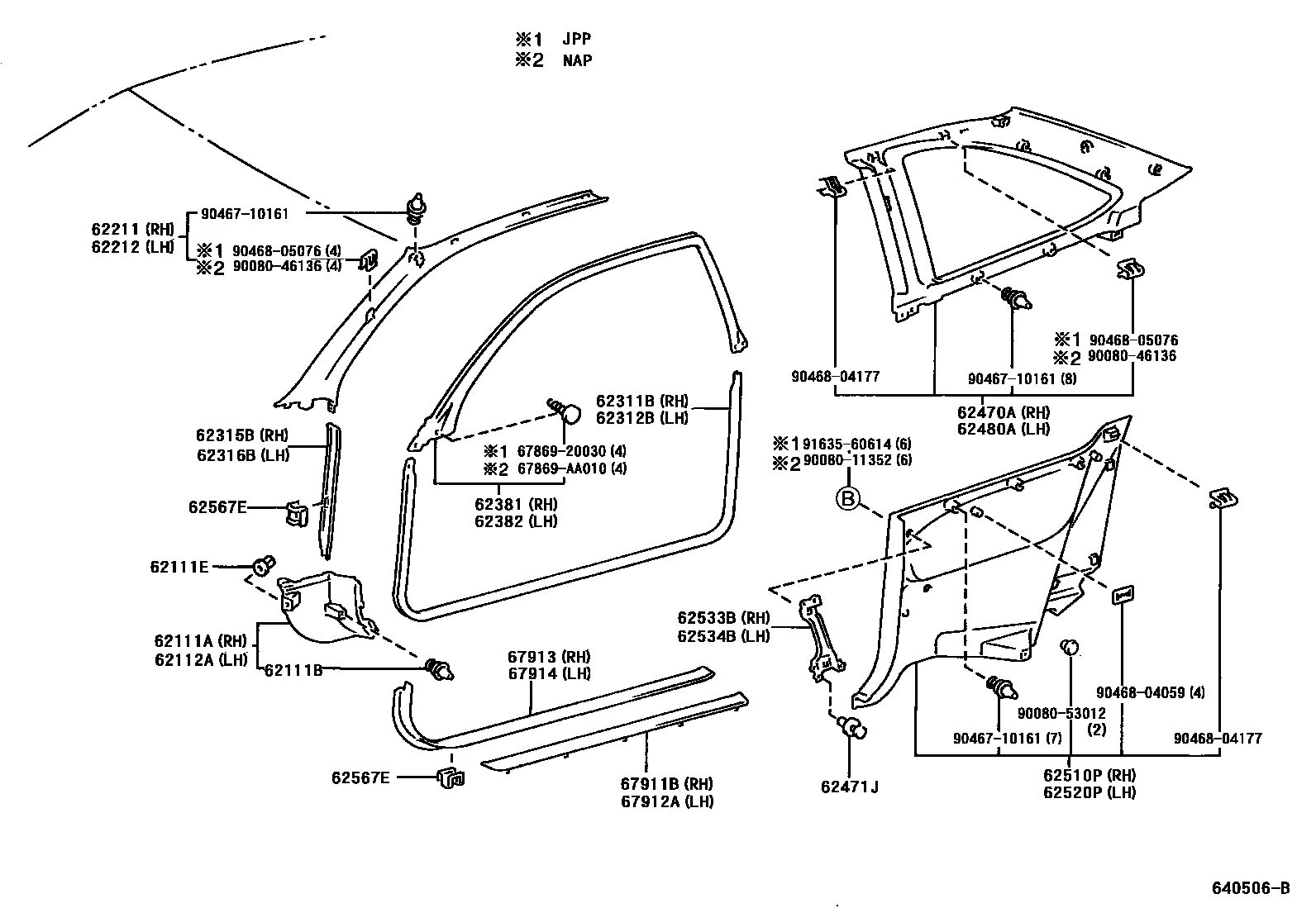

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06020-A0iACV20,MCV20,SXV20..CVT200002-200212

IVORY,TRIM0#

main62101-06020-B0iACV20,MCV20,SXV20..CVT200002-200212

SHADOW GRAY,TRIM1#

main62101-AA010-A0iACV20,MCV20,SXV20..CP199806-200212

IVORY,TRIM0#

main62101-AA010-B1iACV20,MCV20,SXV20..CP199806-200212

SHADOW GRAY,TRIM1#

62111BCLIP(FOR COWL SIDE TRIM)

main67771-33040×2iACV20,MCV20,SXV20..CP199806-200207

62111ERETAINER, COWL SIDE TRIM

main90467-06158-C0×2iACV20,MCV20,SXV20199806-200212

BLACK,TRIM0#,1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06020-A0iACV20,MCV20,SXV20..CVT200002-200212

IVORY,TRIM0#

main62102-06020-B0iACV20,MCV20,SXV20..CVT200002-200212

SHADOW GRAY,TRIM1#

main62102-AA010-A0iACV20,MCV20,SXV20..CP199806-200212

IVORY,TRIM0#

main62102-AA010-B1iACV20,MCV20,SXV20..CP199806-200212

SHADOW GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62210-06020-A0iACV20,MCV20,SXV20..CP199806-200207

IVORY,TRIM0#

main62210-06020-B0iACV20,MCV20,SXV20..CP199806-200207

MD.GRAY,TRIM1#

main62210-06090-A0iACV20,MCV20..CP200207-200212

IVORY,TRIM0#

main62210-06090-B0iACV20,MCV20..CP200207-200212

MD.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62220-06020-A0iACV20,MCV20,SXV20..CP199806-200207

IVORY,TRIM0#

main62220-06020-B0iACV20,MCV20,SXV20..CP199806-200207

MD.GRAY,TRIM1#

main62220-06090-A0iACV20,MCV20..CP200207-200212

IVORY,TRIM0#

main62220-06090-B0iACV20,MCV20..CP200207-200212

MD.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06030iACV20,MCV20..CP200207-200212

main62311-06040iACV20,MCV20,SXV20..CVT200002-200212

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06030iACV20,MCV20,SXV20..CP199806-200207

main62312-06040iACV20,MCV20,SXV20..CVT200002-200212

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-AA010-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main62315-AA010-B1iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-AA010-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main62316-AA010-B1iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-06030iMCV20,SXV20..CP199806-200011

main62381-06031iACV20,MCV20,SXV20..CP200011-200207

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-06030iMCV20,SXV20..CP199806-200011

main62382-06031iACV20,MCV20,SXV20..CP200011-200207

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-06030-A0iACV20,MCV20,SXV20..CP199806-200212

IVORY,TRIM0#

main62470-06030-B0iACV20,MCV20,SXV20..CP199806-200212

MD.GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-07146×2iACV20,MCV20,SXV20..CP199806-200207

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-06030-A0iACV20,MCV20,SXV20..CP199806-200212

IVORY,TRIM0#

main62480-06030-B0iACV20,MCV20,SXV20..CP199806-200212

MD.GRAY,TRIM1#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-06010-A0iACV20,MCV20,SXV20..CP199808-200207

IVORY,TRIM0#

main62510-06010-B0iACV20,MCV20,SXV20..CP199808-200207

SHADOW GRAY,TRIM1#

main62510-06011-A0iACV20,MCV20..CP200207-200212

IVORY,TRIM0#

main62510-06011-B0iACV20,MCV20..CP200207-200212

SHADOW GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-06010-A0iACV20,MCV20,SXV20..CP199808-200207

IVORY,TRIM0#

main62520-06010-B0iACV20,MCV20,SXV20..CP199808-200207

SHADOW GRAY,TRIM1#

main62520-06011-A0iACV20,MCV20..CP200207-200212

IVORY,TRIM0#

main62520-06011-B0iACV20,MCV20..CP200207-200212

SHADOW GRAY,TRIM1#

62533BBRACKET, QUARTER TRIM, RH

main62533-33010iACV20,MCV20,SXV20..CP199806-200207

62534BBRACKET, QUARTER TRIM, LH

main62534-33010iACV20,MCV20,SXV20..CP199806-200207

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-06010×10iACV20,MCV20,SXV20..CP199806-200207

SCUFF PLATE

main62567-33010×2iACV20,MCV20,SXV20199806-200207

COWL PANEL SIDE

main67923-06020×10iACV20,MCV20,SXV20..CVT200002-200212

SCUFF PLATE

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-06020iACV20,MCV20,SXV20199806-200207

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-06020iACV20,MCV20,SXV20199806-200207

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06020-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main67913-06020-B0iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06020-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main67914-06020-B0iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-20030

67869AA010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-AA010

9008011352

main90080-11352

9008046136

main90080-46136

9008053012

main90080-53012

9046710161

main90467-10161

9046804059

main90468-04059

9046804177

main90468-04177

9046805076

main90468-05076

9163560614

main91635-60614

34 parts on this diagram · 2 diagrams in section
