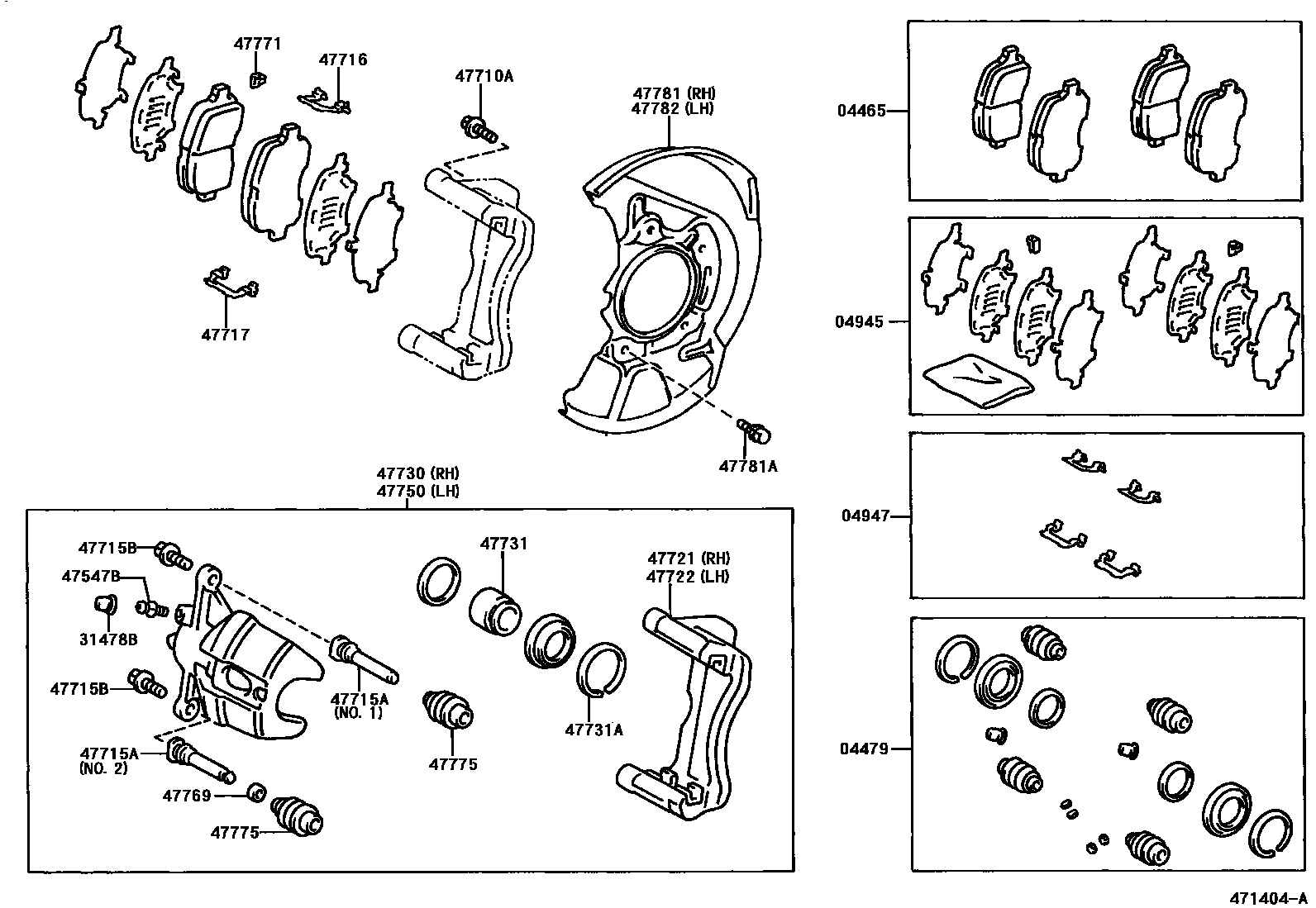

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33120iMCV20,SXV20199806-199812

main04465-33121iACV20,MCV20,SXV20199812-200207

MARK AK PA533

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-06040iACV20,MCV20,SXV20199806-200207

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06060iACV20,MCV20,SXV20199806-200207

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06040iMCV20,SXV20199806-199909

main04947-06041iACV20,MCV20,SXV20199909-200207

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iACV20,MCV20,SXV20199806-200207

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iACV20,MCV20200207-200212

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067×4iACV20,MCV20,SXV20199806-200207

*12-1.25PX29.5-23,(L)

main90105-12208×4iACV20,MCV20,SXV20199806-200207

*12-1.25PX29.5-23,(J)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-06060×2iACV20,MCV20200207-200212

NO.1

main47715-06070×2iACV20,MCV20,SXV20199806-200207

NO.2

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90080-10075×4iACV20,MCV20,SXV20199806-200207

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-06050×2iACV20,MCV20,SXV20199806-200207

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-06050×2iMCV20,SXV20199806-199909

main47717-06080×2iACV20,MCV20200207-200212

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06040iACV20,MCV20200207-200212

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-06040iACV20,MCV20,SXV20199806-200207

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06040iACV20,MCV20,SXV20199806-200207

47731PISTON, FRONT DISC BRAKE

main47731-06040×2iACV20,MCV20,SXV20199806-200207

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52086×2iACV20,MCV20,SXV20199806-200207

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06040iACV20,MCV20,SXV20199806-200207

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06020×2iACV20,MCV20200207-200212

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-06020×2iACV20,MCV20200207-200212

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-02040×4iACV20,MCV20,SXV20199806-200207

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06020iACV20,MCV20,SXV20199806-200207

sub47781-33020

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429×8iACV20,MCV20200207-200212

(L)

main90119-06227×8iMCV20,SXV20199806-200107

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06020iACV20,MCV20,SXV20199806-200207

23 parts on this diagram · 1 diagram in section
