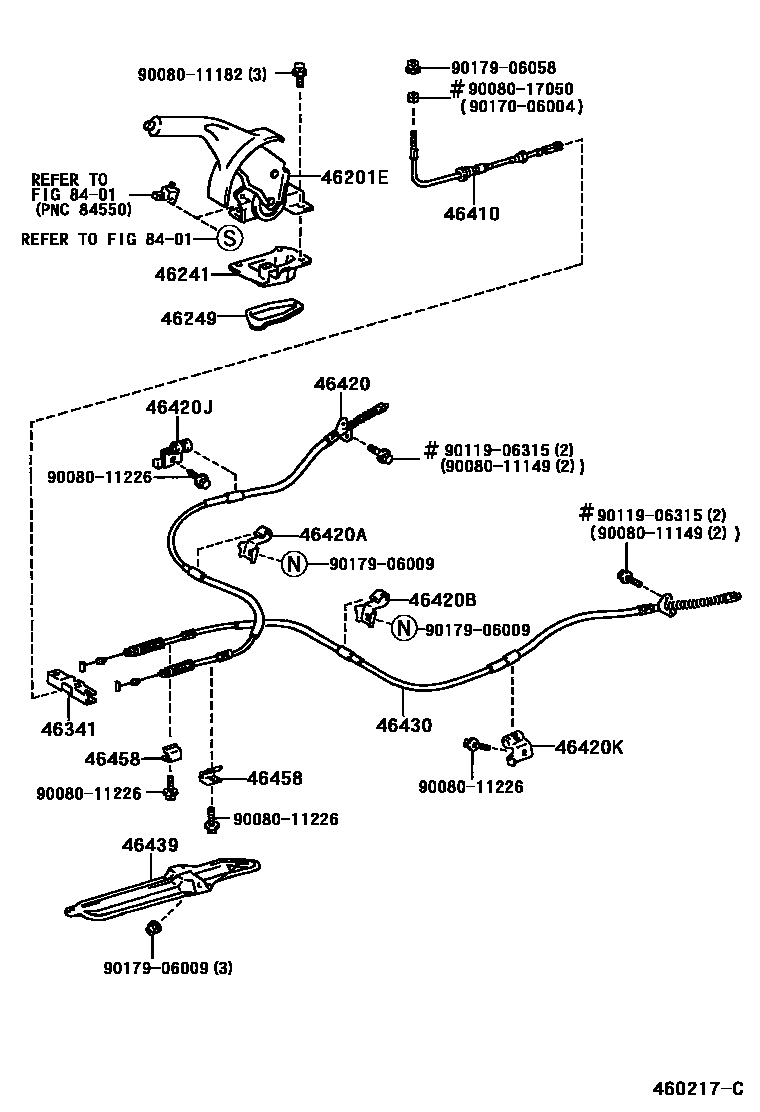

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-06050-C0iACV20,SXV20..CP199806-200212

BLACK,TRIM0#,1#

main46201-06060-C0iMCV20;ACV20,SXV20..CVT199806-200212

BLACK,TRIM0#,1#

46241BOOT, PARKING BRAKE LEVER

main46241-06020iACV20,MCV20,SXV20199806-200212

46249SHIELD, PARKING BRAKE HOLE

main46249-06020iACV20,MCV20,SXV20199806-200212

46341EQUALIZER, PARKING BRAKE

main46341-AA010iACV20,MCV20,SXV20199806-200212

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06020iACV20,MCV20199806-200212

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06030iACV20,SXV20..CP199806-200212

main46420-33050iMCV20;ACV20,SXV20..CVT199806-200212

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01663iACV20,MCV20199806-200212

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B08iACV20,MCV20,SXV20199806-200212

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01A66iACV20,MCV20,SXV20199806-200212

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01A67iACV20,MCV20199806-200212

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06030iACV20,SXV20..CP199806-200212

main46430-33050iMCV20;ACV20,SXV20..CVT199806-200212

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-06010iACV20,MCV20199806-200212

46458RETAINER, CABLE

main46458-28010iACV20,MCV20,SXV20199806-200212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011149

main90080-11149

9008011182

main90080-11182

9008011226

main90080-11226

9008017050

main90080-17050

9011906315

main90119-06315

9017006004

main90170-06004

9017906009

main90179-06009

9017906058

main90179-06058

22 parts on this diagram · 2 diagrams in section
