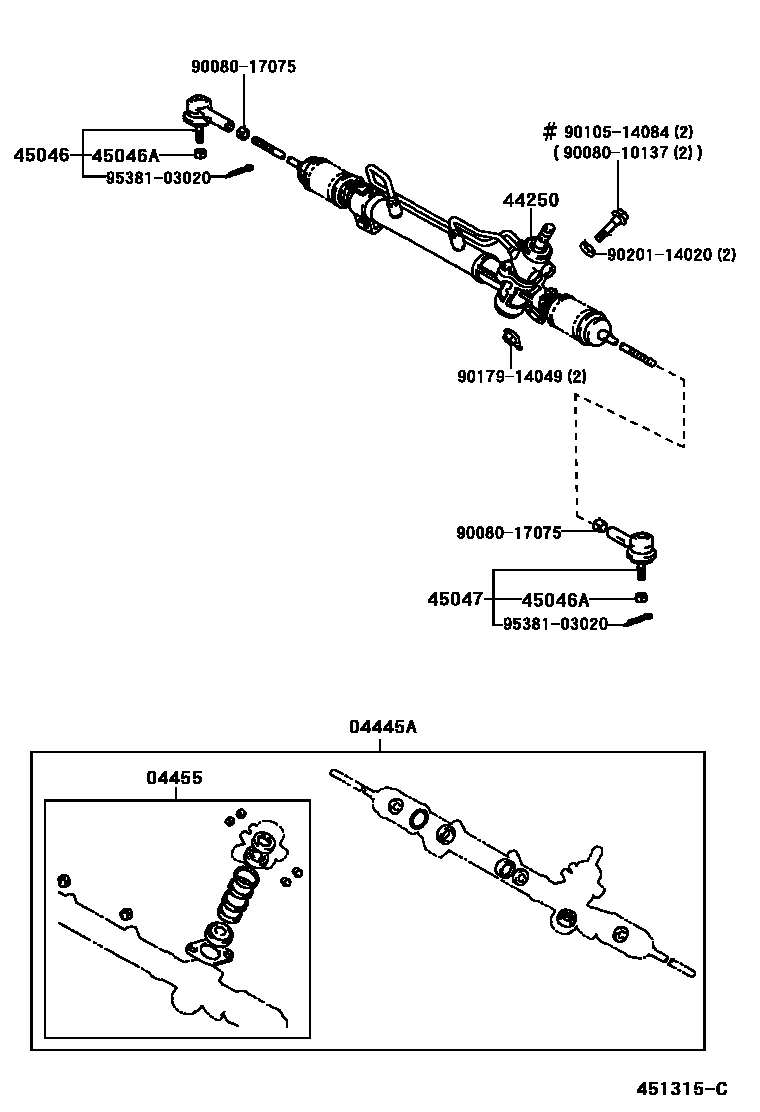

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-06030iACV20,MCV20,SXV20199806-200212

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-06020iACV20,MCV20,SXV20199806-200212

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06080iMCV20,SXV20199806-199908

sub44250-06081

main44250-06081iACV20,MCV20,SXV20199908-200212

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iACV20,MCV20,SXV20199806-200212

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACV20,MCV20,SXV20199806-200212

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iACV20,MCV20,SXV20199806-200212

9008010137

main90080-10137

9008017075

main90080-17075

9010514084

main90105-14084

9017914049

main90179-14049

9020114020

main90201-14020

9538103020

main95381-03020

12 parts on this diagram · 2 diagrams in section
