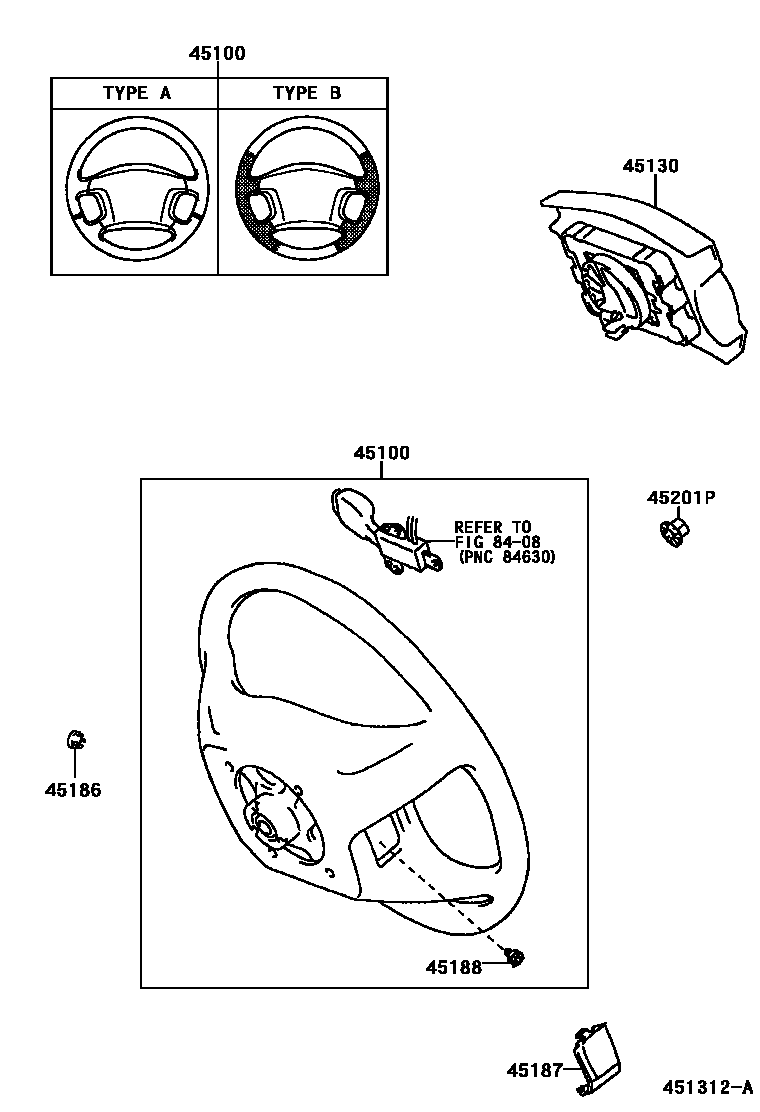

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,IVORY,TRIM0#
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#
4-SPOKE,LEATHER,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#
4-SPOKE,LEATHER,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,IVORY,TRIM0#
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,IVORY,TRIM0#
4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,IVORY,TRIM0#
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,IVORY,TRIM0#
4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
45130BUTTON ASSY, HORN
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),IVORY,TRIM0#
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
45186COVER, STEERING WHEEL, LOWER NO.2
W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),IVORY,TRIM0#
SHADOW GRAY,TRIM1#
45187COVER, STEERING WHEEL, LOWER NO.3
W(4-SPOKE STEERING WHEEL),IVORY,TRIM0#
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=16.3
L=18.5
L=18
45201PNUT, STEERING WHEEL SET
8408CRUISE CONTROL (AUTO DRIVE)
7 parts on this diagram · 3 diagrams in section
