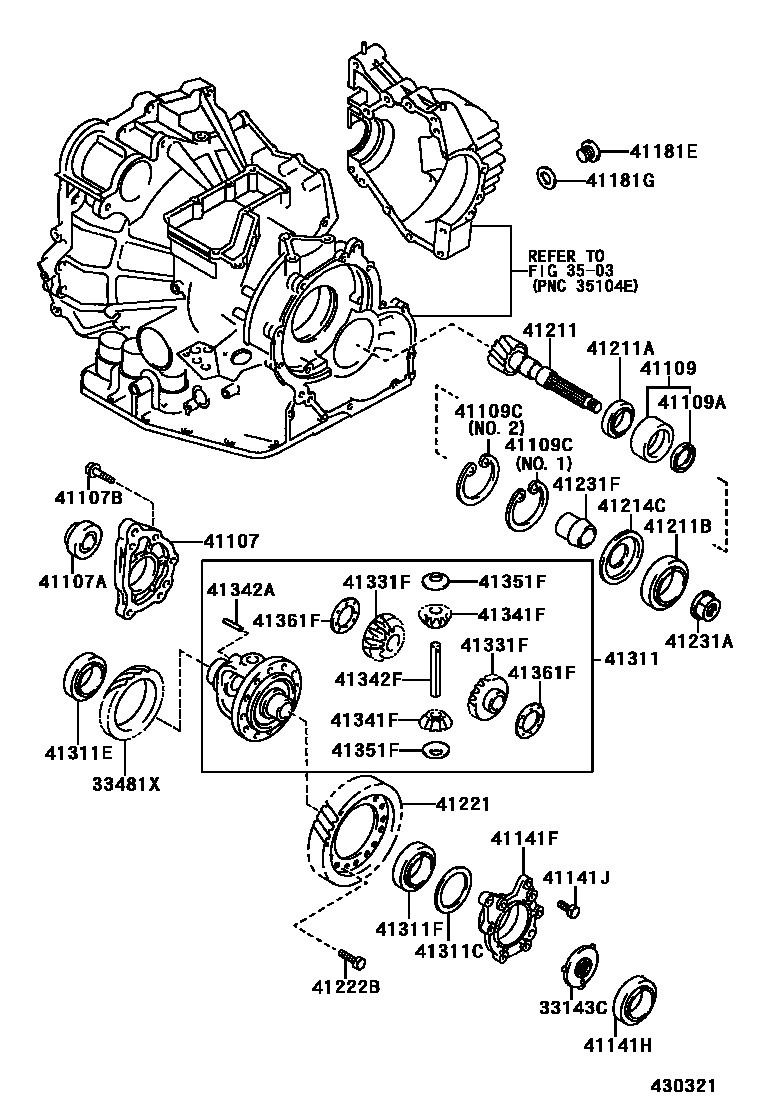

FRONT AXLE HOUSING & DIFFERENTIAL
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=32
N=27
N=35
33481XGEAR, SPEEDOMETER DRIVE
3503
41107BBOLT (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER)
41109CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING
41109ASEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
41109CRING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE)
NO.2
NO.1
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*8-1.25PX28-28
*8-1.25PX29-24
*8-1.25PX36-23
41181COVER, FRONT DIFFERENTIAL CARRIER
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
T=1.625
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
T=1.725
T=1.825
34 parts on this diagram · 6 diagrams in section
