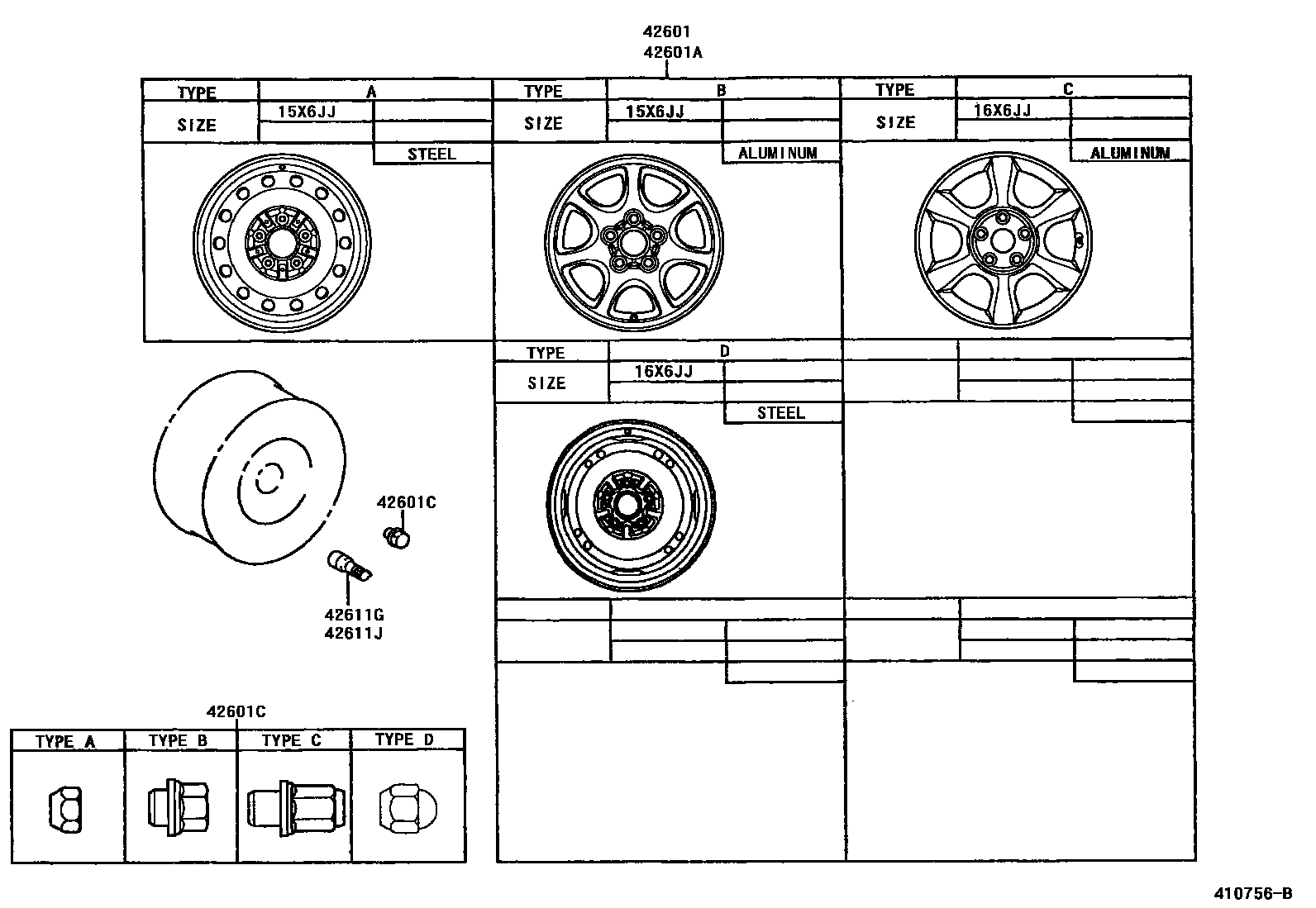

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-06030×4iACV20,MCV20,SXV20199806-200207

15X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-06130×4iACV20,MCV20,SXV20199806-200207

15X6JJ,TYPE B:REFER TO ILLUSTRATION

main42611-AA010×4iMCV20199806-200207

16X6JJ,TYPE C:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-06030iACV20,MCV20200207-200212

15X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-06150iMCV20200008-200207

16X6JJ,TYPE D:REFER TO ILLUSTRATION

main42611-33290iMCV20199908-200008

16X6JJ,0FFSET 45,TYPE D:REFER TO ILLUSTRATION

main42611-AA010iMCV20199806-199908

16X6JJ,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90080-17035×20iMCV20,SXV20199806-200107

TYPE A:REFER TO ILLUSTRATION

main90080-17036×20iMCV20,SXV20199806-200107

TYPE C:REFER TO ILLUSTRATION

main90084-94002×20iACV20,MCV20200207-200212

TYPE C:REFER TO ILLUSTRATION

main90942-01021×20iACV20,MCV20200207-200212

TYPE D:REFER TO ILLUSTRATION

main90942-01062×20iMCV20200207-200212

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-45006×4iACV20,MCV20,SXV20199806-200207

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iACV20,MCV20,SXV20199806-200207

5 parts on this diagram · 5 diagrams in section
