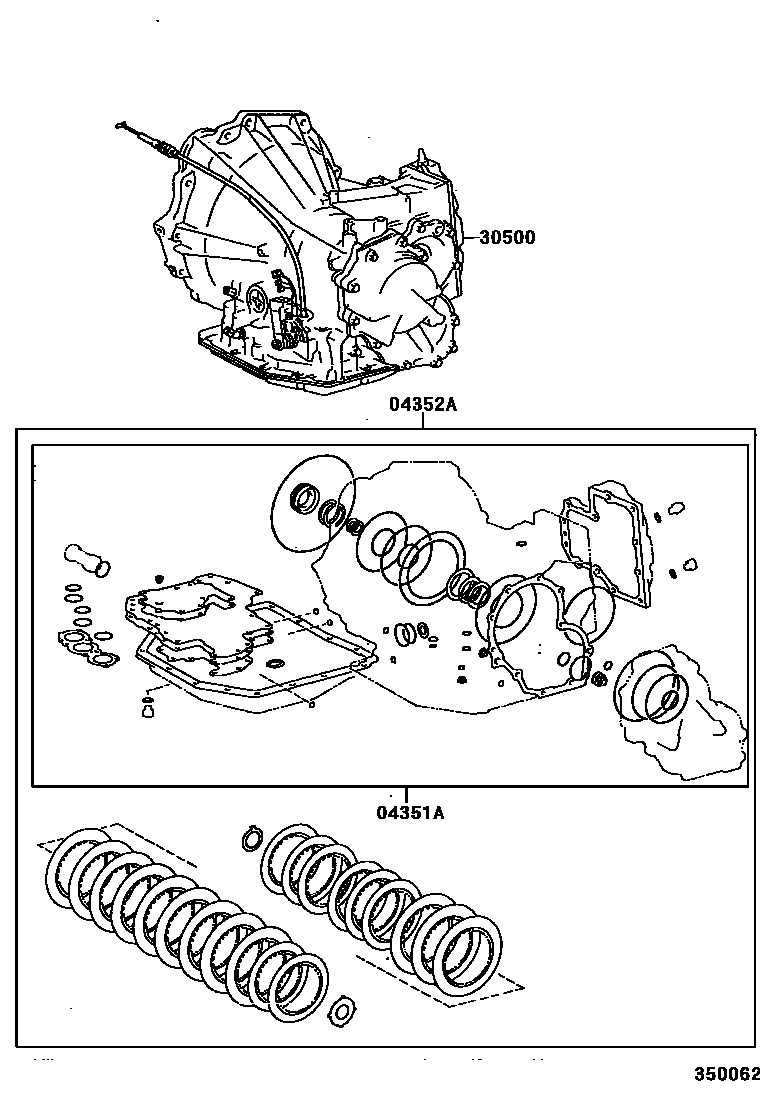

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A541E 0002 1A140E 0003 1U241E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-06020iACV20..ATM200107-200209

main04351-06021iACV20..ATM200209-200212

main04351-33010iSXV20..ATM199806-200107

main04351-33032iMCV20..ATM199806-200211

main04351-33033iMCV20200211-200212

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-06020iACV20..ATM200107-200212

main04352-33010iSXV20..ATM199806-199901

main04352-33011iSXV20..ATM199901-200107

main04352-33051iMCV20..ATM199806-200211

main04352-33052iMCV20200211-200212

30500TRANSAXLE ASSY, AUTOMATIC

main30500-06020iACV20..ATM200107-200212

main30500-33150iSXV20..ATM199806-200107

main30500-33211iMCV20..ATM199806-200212

3 parts on this diagram · 3 diagrams in section
