TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

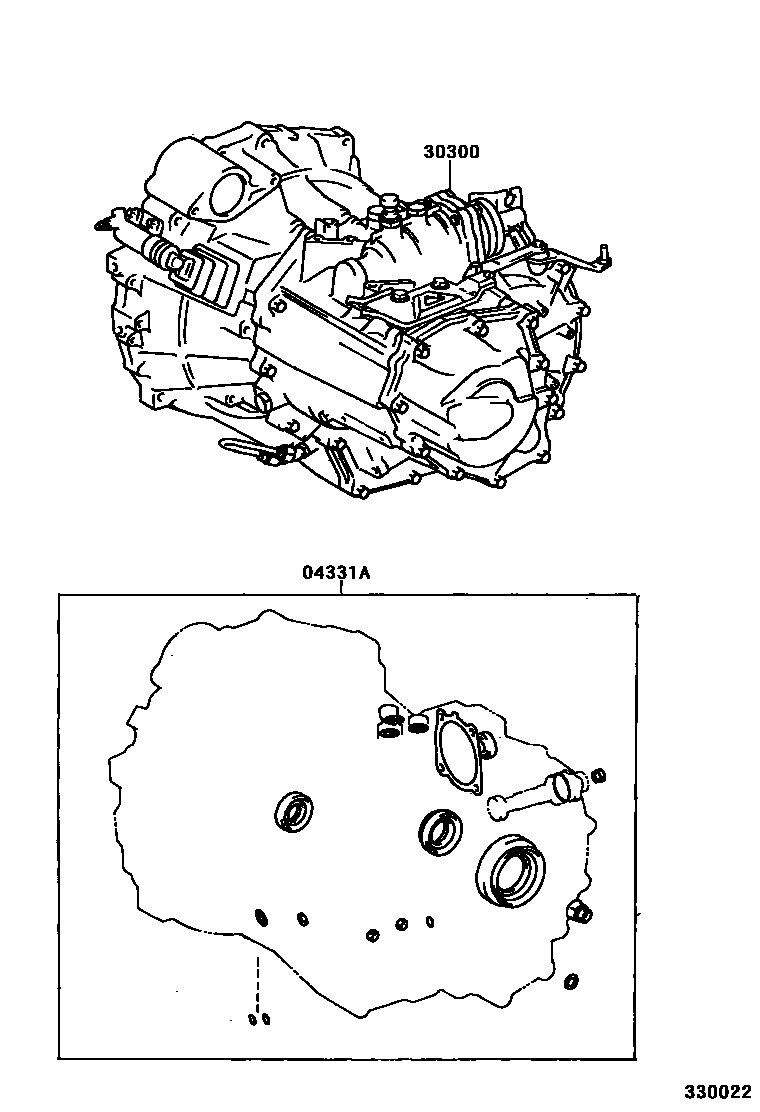

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-17011i199806-200106

main04331-28040i200108-200212

main04331-32011i199806-200002

main04331-32040i200002-200107

main04331-33010i200106-200207

30300TRANSAXLE ASSY, MANUAL

main30300-33100i199806-200106

main30300-33110i199806-200107

main30300-33160i200107-200212

main30300-33170i200106-200207

2 parts on this diagram · 3 diagrams in section
