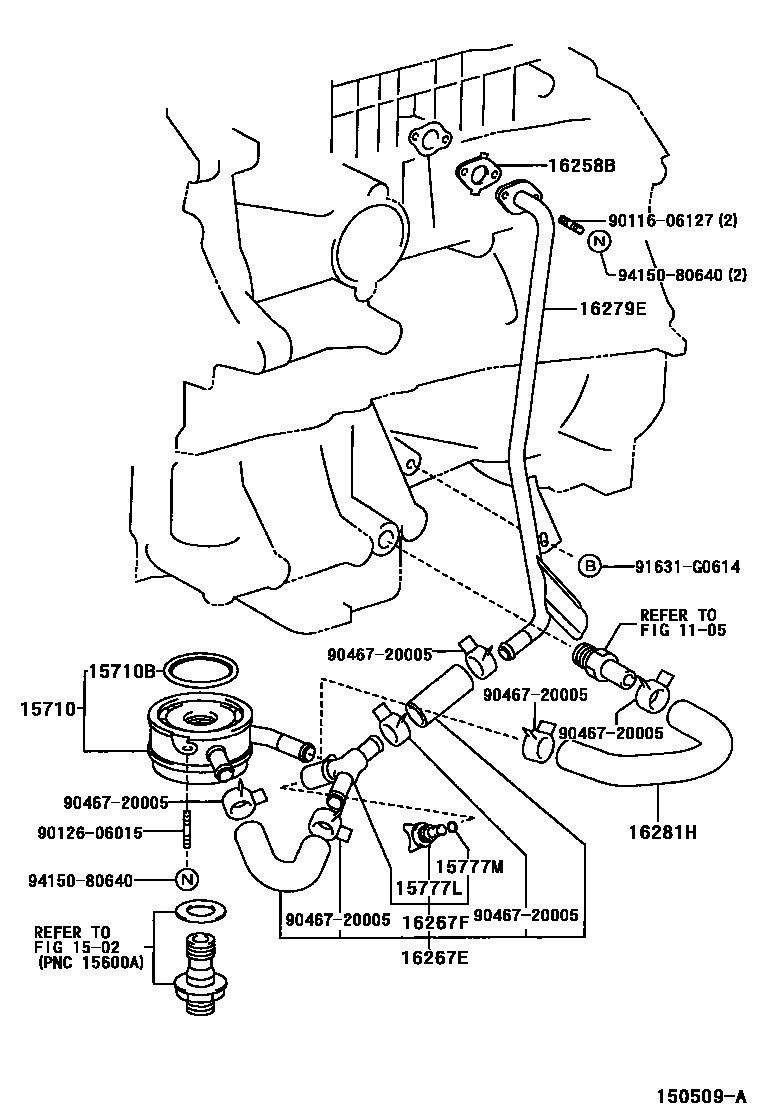

ENGINE OIL COOLER

0001 1 0002 1

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFE..ACV20..ATM200107-200212

main15710-74050i5SFE..SXV20..ATM199806-200107

15710BRING, O(FOR OIL COOLER)

main90301-52006i5SFE..SXV20..ATM199806-200212

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i2AZFE..ACV20..ATM200107-200212

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i2AZFE..ACV20..ATM200107-200212

16258BGASKET, OIL COOLER PIPE

main16258-28020i2AZFE..ACV20..ATM200107-200212

sub16258-28040

16267EHOSE, WATER BY-PASS, NO.3

main16267-28020i2AZFE..ACV20..ATM200107-200212

sub16267-28080

16267FCOCK ASSY, DRAIN

main90910-09119i2AZFE..ACV20..ATM200107-200212

16279EPIPE, WATER BY-PASS, NO.3

main16279-28010i2AZFE..ACV20..ATM200107-200212

16281HHOSE, WATER BY-PASS, NO.4

main16281-28010i2AZFE..ACV20..ATM200107-200212

9011606127

main90116-06127

9012606015

main90126-06015

9046720005

main90467-20005

91631G0614

main91631-G0614

9415080640

main94150-80640

16 parts on this diagram · 2 diagrams in section
