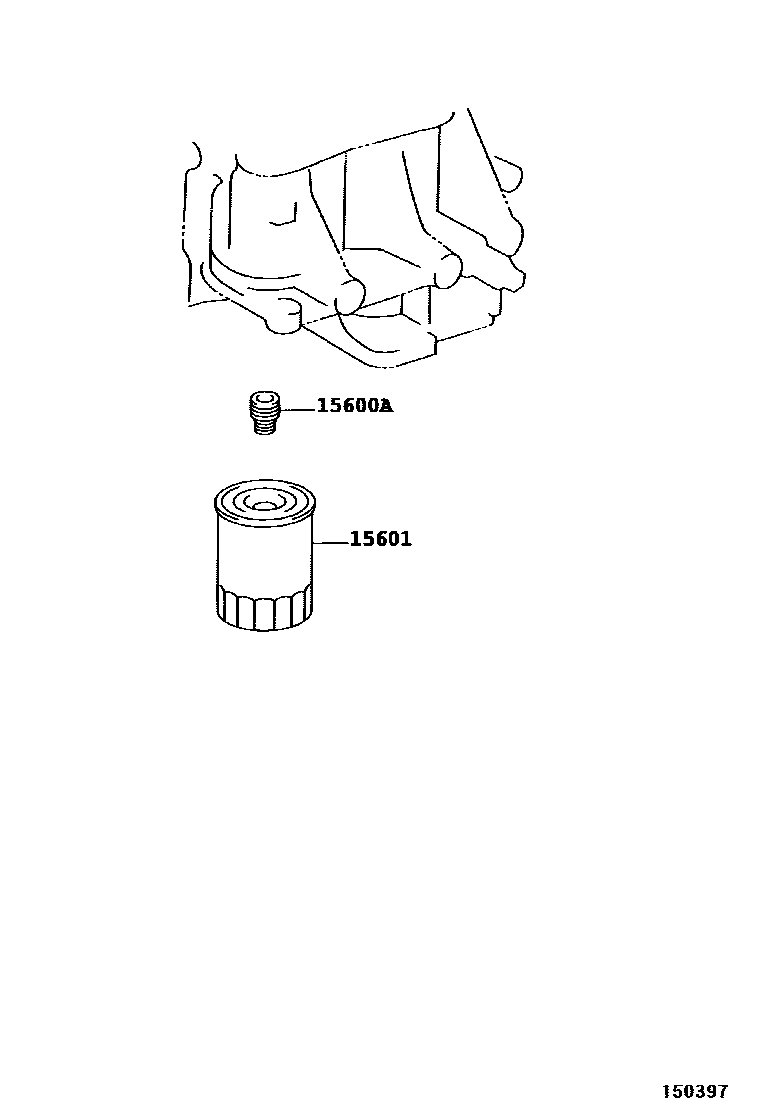

OIL FILTER

0001 1W/O(OIL COOLER) 0002 1W(OIL COOLER) 0003 1 0004 1

15600AUNION(FOR OIL FILTER)

main15695-28010i2AZFE..ACV20..ATM200107-200212

W(OIL COOLER)

main90404-19002i5SFE..SXV20199806-200107

main90904-04006i2AZFE..ACV20200107-200212

15601FILTER SUB-ASSY, OIL

main90080-91058i5SFE..SXV20199806-200107

(L)

main90080-91210i2AZFE..ACV20200107-200212

(L)

main90915-10001i5SFE..SXV20199806-199911

(J)

main90915-10003i5SFE..SXV20199911-200107

(J)

main90915-10004i2AZFE..ACV20200107-200212

(J)

main90915-20001i1MZFE..MCV20199806-199908

main90915-20003i1MZFE..MCV20199908-200207

2 parts on this diagram · 4 diagrams in section
