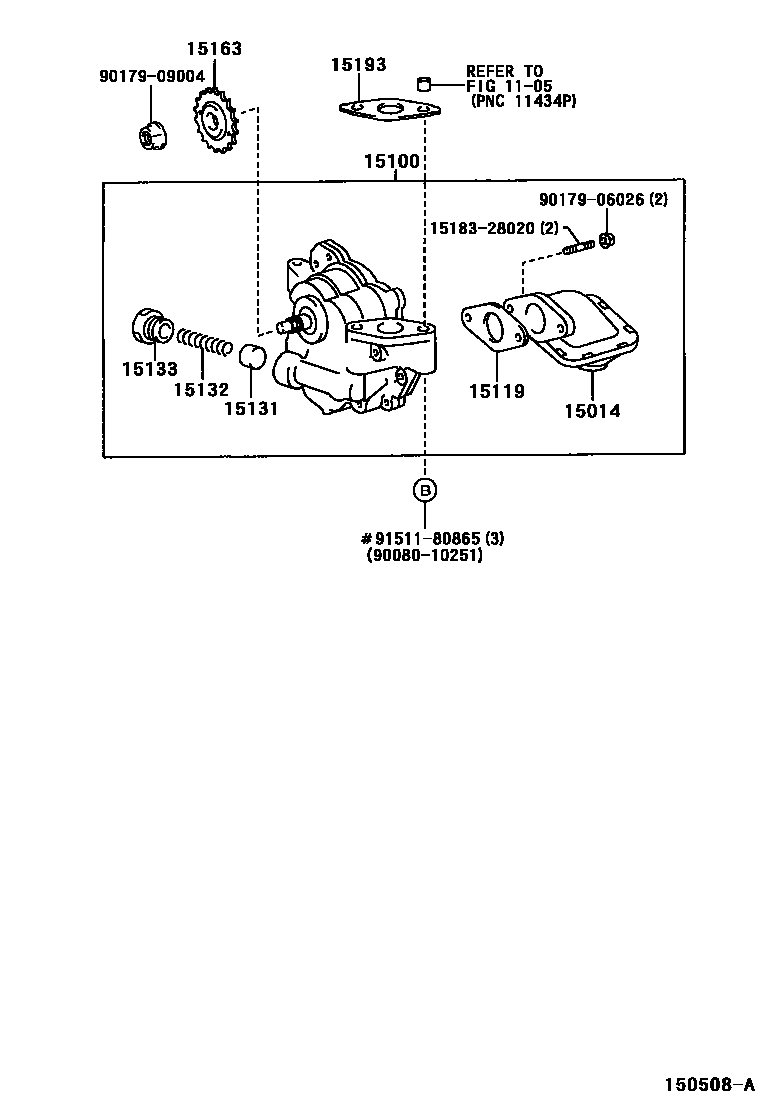

ENGINE OIL PUMP
1105CYLINDER BLOCK
15014STRAINER SET, OIL PUMP
ENGINE NO.=7XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
15100PUMP ASSY, OIL
(L)
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
(J)
ENGINE NO.=7XXXXXX-9XXXXXX
(J)
15119GASKET, OIL PUMP COVER
ENGINE NO.=7XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
15131VALVE, OIL PUMP RELIEF
(L)
(J)
15132SPRING, OIL PUMP RELIEF VALVE
(L)
ENGINE NO.=7XXXXXX-9XXXXXX
(J)
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
(J)
15133PLUG, OIL PUMP RELIEF VALVE
ENGINE NO.=7XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
15163GEAR, OIL PUMP DRIVE SHAFT
(L)
(J)
15193GASKET, OIL PUMP
(L)
(J)
(L)
(J)
1518328020BOLT, UNION(FOR OIL PUMP)
main15183-28020
9008010251
main90080-10251
9017906026
main90179-06026
9017909004
main90179-09004
9151180865
main91511-80865
14 parts on this diagram · 3 diagrams in section
