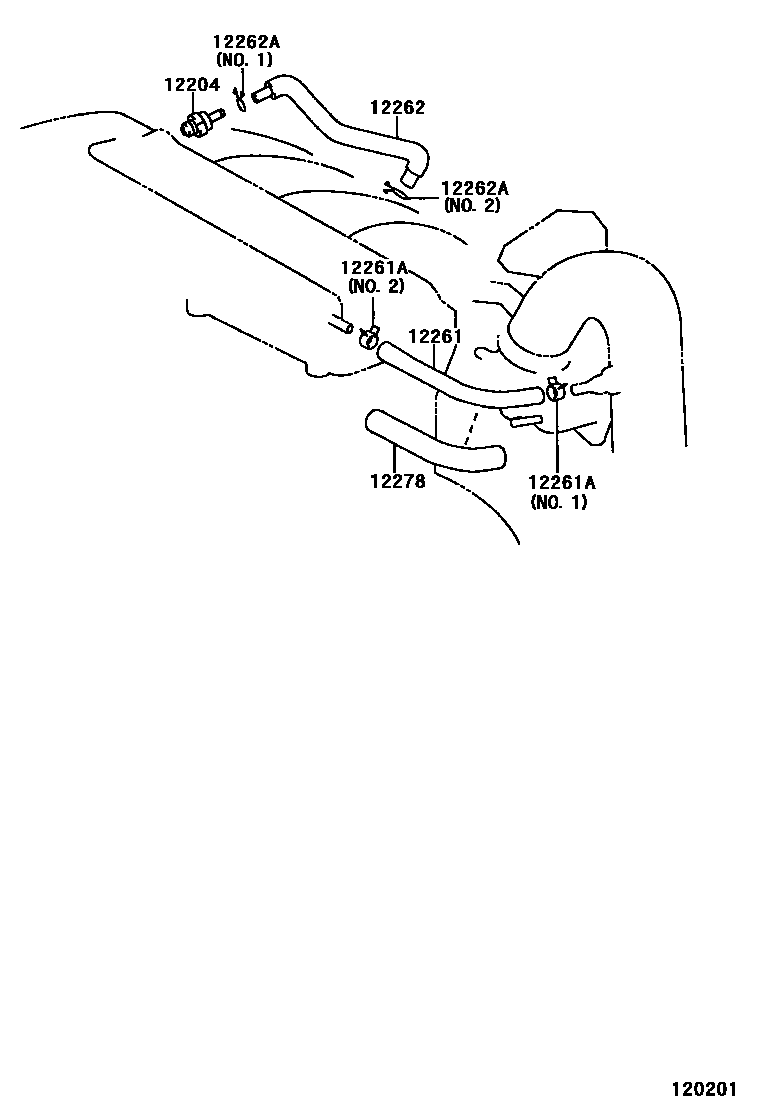

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.1
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX,NO.2
ENGINE NO.=7XXXXXX-9XXXXXX,NO.2
NO.2
12278INSULATOR, VENTILATION HOSE HEAT
6 parts on this diagram · 3 diagrams in section
