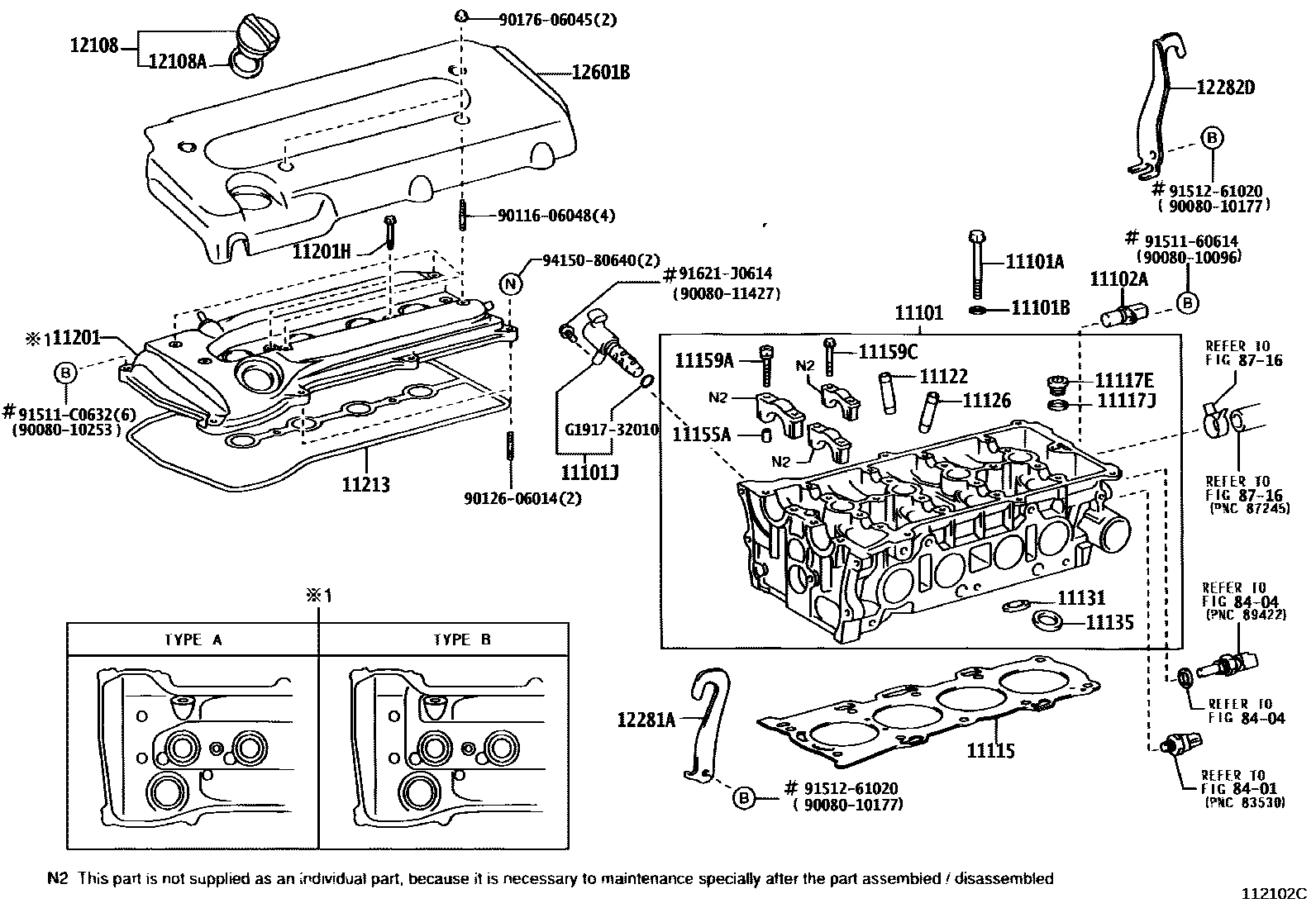

11101HEAD SUB-ASSY, CYLINDER

main11101-09050i199806-200107

(L)

main11101-09060i199806-199908

CALIFORNIA SPEC

main11101-09071i199806-199807

(L)

sub11101-09072

main11101-09072i199807-199908

sub11101-09073

main11101-09072i199908-199912

(L)

sub11101-09073

main11101-09073i199912-200004

(L)

sub11101-09074

main11101-09074i200004-200212

(L)

sub11101-09075

main11101-0H010i200107-200212

ENGINE NO.=7XXXXXX-9XXXXXX

sub11101-0H011

sub11310-0H011

sub11310-28071

sub11310-28082

sub11321-28042

main11101-28011i200107-200212

ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX

sub11101-28012

sub11310-0H011

sub11310-0H021

sub11310-0H041

sub11310-0H051

sub11310-28071

sub11310-28082

sub11321-28042

main11101-29406i199806-199808

(J)

sub11101-29407

main11101-29407i199808-199912

(J)

sub11101-29408

main11101-29408i199912-200004

(J)

sub11101-29409

main11101-29409i200004-200212

(J)

sub11101-29410

main11101-79156i199806-200107

(J)

11101ABOLT(FOR CYLINDER HEAD SET)

main90109-10132i199806-200107

main90910-02117i199806-200212

main90910-02141i200107-200212

sub90910-02184

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11026i199806-200107

main90201-11031i199806-200212

main90201-11033i200107-200212

sub90201-11034

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-28020i200107-200212

sub15330-28010

11102HEAD, CYLINDER, LH

main11102-09010i199806-199807

(L)

sub11102-09011

main11102-09011i199807-199912

(L)

sub11102-09012

main11102-09012i199912-200004

(L)

sub11102-09013

main11102-09013i200004-200212

(L)

sub11102-09014

main11102-29036i199806-199808

(J)

sub11102-29037

main11102-29037i199808-199912

(J)

sub11102-29038

main11102-29038i199912-200004

(J)

sub11102-29039

main11102-29039i200004-200212

(J)

sub11102-29040

11102ASENSOR, CAMSHAFT POSITION

main90080-19006i199806-199912

(L)

main90080-19014i200107-200212

(L)

main90919-05013i199806-199912

(J)

main90919-05013i199912-200212

main90919-05026i200107-200212

(J)

11115GASKET, CYLINDER HEAD

main11115-20010i199806-200001

main11115-20040i200001-200212

sub11115-20041

main11115-28011i200107-200212

sub11115-28012

main11115-74120i199806-200107

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-24013i199806-200212

sub90341-24011

main90341-24090i199806-200107

main90341-27006i200107-200212

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-24246i199806-200212

main90430-27005i200107-200212

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i199806-200212

STD

sub11122-22040

main11122-28010i200107-200212

STD

main11122-74030i199806-200107

STD

main11123-20020i199806-200212

O/S 0.05

main11123-28010i200107-200212

O/S 0.05

main11123-74030i199806-200107

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-16010i199806-200107

STD

sub11122-16020

main11123-16010i199806-200107

O/S 0.05

main11126-20020i199806-200212

STD

main11127-20020i199806-200212

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-28021i200107-200212

STD

main11131-62030i199806-200212

STD

main11131-74020i199806-200107

STD

main11132-28021i200107-200212

O/S 0.03

main11132-62030i199806-200212

O/S 0.03

main11132-74020i199806-200107

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-20040i200004-200212

STD

main11135-28030i200107-200212

STD

main11135-62020i199806-200004

STD

main11135-74030i199806-200107

STD

main11136-20040i200004-200212

O/S 0.03

main11136-28030i200107-200212

O/S 0.03

sub11136-28040

main11136-62020i199806-200004

O/S 0.03

main11136-74030i199806-200107

O/S 0.03

11155APIN, RING W/HEAD

main90253-10004i199806-200212

main90253-11021i200107-200212

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-10210i200107-200212

(L)

main90105-08337i200107-200212

(J)

sub90105-08353

main90119-07009i199806-200212

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-11292i200107-200212

(L)

main90119-06902i200107-200212

(J)

main90119-07009i199806-200212

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-03040i199806-199903

(L)

sub11201-03041

main11201-03041i199903-200107

(L)

main11201-0A011i199806-200204

sub11201-0A030

main11201-0A011i199908-200101

(L)

sub11201-0A030

main11201-0A011i200101-200204

TYPE A:REFER TO ILLUSTRATION

sub11201-0A030

main11201-0A030i200204-200212

sub11201-20090

sub12204-20040

sub12261-20091

sub90467-14017

main11201-0H011i200107-200207

(L)

sub11201-28031

main11201-0H011i200207-200212

TYPE A:REFER TO ILLUSTRATION,(L)

sub11201-28031

main11201-20010i199806-200101

(J)

sub11201-20050

sub12204-20030

sub12204-20040

main11201-20050i200101-200107

TYPE B:REFER TO ILLUSTRATION

sub11201-20070

main11201-28013i200107-200207

(J)

sub11201-28014

main11201-28013i200207-200212

TYPE A:REFER TO ILLUSTRATION,(J)

sub11201-28014

main11201-28014i200207-200212

TYPE B:REFER TO ILLUSTRATION

sub11201-28031

main11201-74070i199806-199901

(J)

sub11201-74071

main11201-74071i199901-200107

(J)

sub11201-79045

11201HBOLT(FOR CYLINDER HEAD COVER)

main90080-11295i200107-200212

(L)

main90119-06903i200107-200212

(J)

11213GASKET, CYLINDER HEAD COVER

main11213-0H010i200107-200212

(L)

main11213-20020i199806-200212

main11213-28021i200107-200212

(J)

main11213-74020i199806-200107

12108CAP SUB-ASSY, OIL FILLER

main12180-0H010i200107-200212

(L)

sub12180-0H011

main12180-22010i199806-200107

sub12180-22011

main12180-28020i200107-200110

(J)

sub12180-28021

main12180-28021i200110-200212

(J)

sub12180-21021

main12180-46030i199806-200110

sub12180-46031

main12180-46031i200110-200212

12108AGASKET(FOR OIL FILLER CAP)

main12195-20020i199806-200212

main90080-43025i200107-200212

(L)

sub90430-35001

main90430-37004i200107-200212

(J)

main90430-37140i199806-200107

12281AHANGER, ENGINE, NO.1

main12281-28010i200107-200212

12282DHANGER, ENGINE, NO.2

main12282-28010i200107-200212

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-AB010i200107-200212

sub12601-0H020

8401

8404

8716

9008010096

main90080-10096

9008010177

main90080-10177

9008010253

main90080-10253

9008011427

main90080-11427

9011606048

main90116-06048

9012606014

main90126-06014

9017606045

main90176-06045

9151160614

main91511-60614

91511C0632

main91511-C0632

9151261020

main91512-61020

91621J0614

main91621-J0614

9415080640

main94150-80640

G191732010

mainG1917-32010
