SHORT BLOCK ASSEMBLY

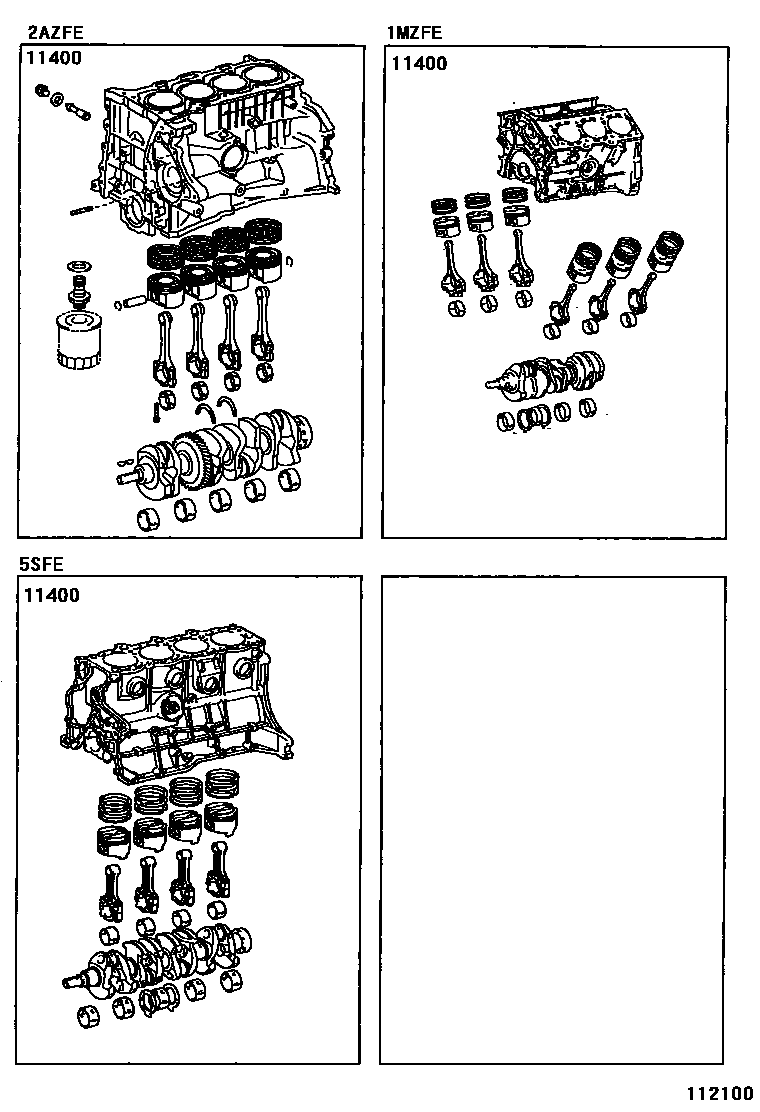

Parts diagram

11400BLOCK ASSY, SHORT

main11400-03022i199806-200107

main11400-0A051i199806-200107

main11400-0A090i200207-200212

main11400-0H010i200107-200212

(L)

main11400-20011i199806-199903

main11400-20012i199903-200107

main11400-28050i200107-200212

(J)

1 parts on this diagram · 1 diagram in section
