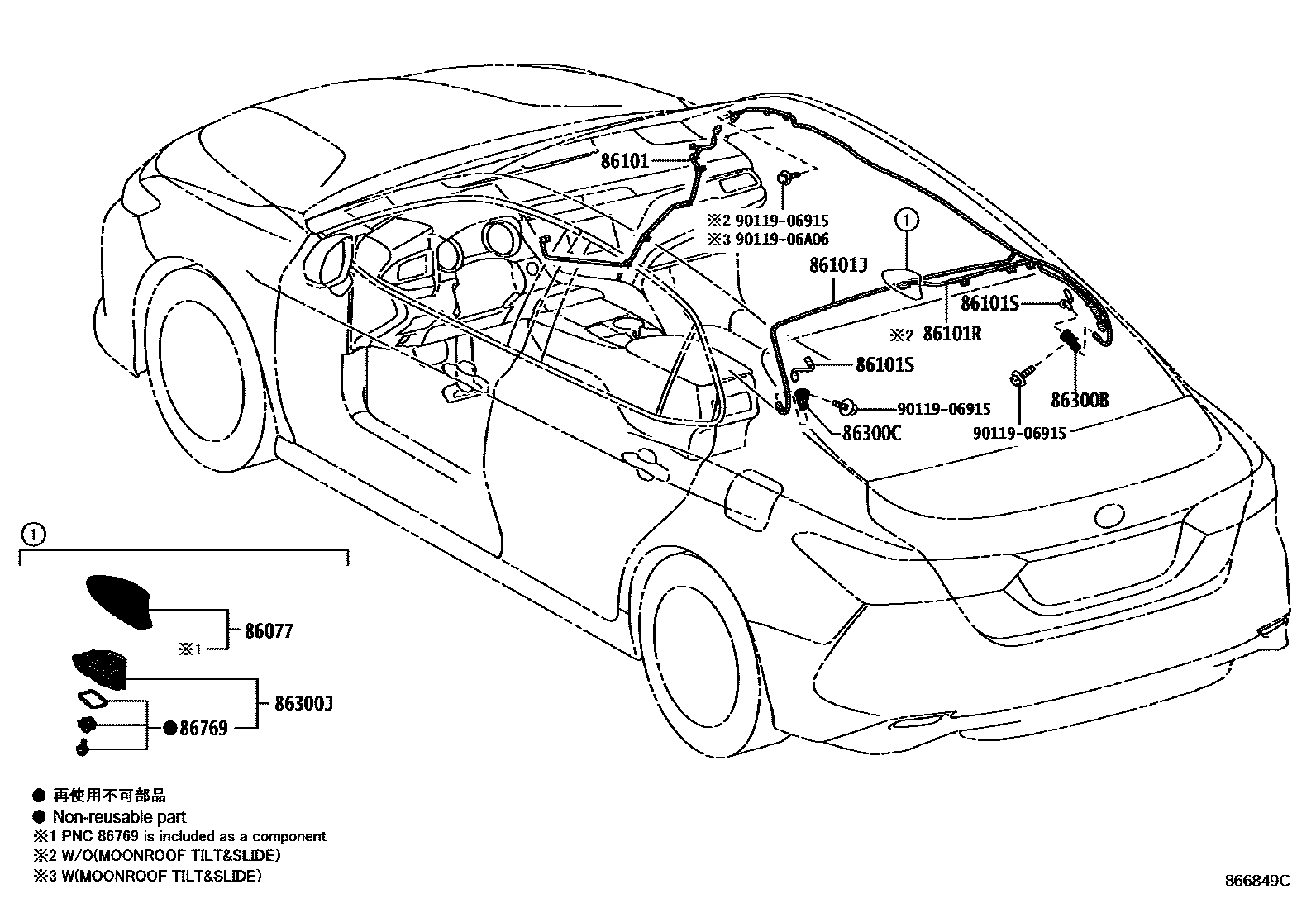

ANTENNA

86077COVER KIT, ANTENNA

main86077-33030-A0i201808-201811

SUPER WHITE 2,040

main86077-33030-C0i201808-201811

ATTITUDE BLACK MC.,218

main86077-33030-C1i201808-201811

BLACKISH AGEHA GF.,221

main86077-33030-D1i201808-201811

EMOTIONAL RED 2,3U5

main86077-33030-E0i201808-201811

GRAPHITE ME.,4X7

main86077-33030-B1i201703-201808

MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & CD & 6SPEAKER,SILVER ME.,1J9

main86077-33030-J0i201703-201808

MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & CD & 6SPEAKER,DK.BLUE M.M.,8W7

86101CORD SUB-ASSY, ANTENNA

main86101-33K40i201703-201808

main86101-33N10i201808-201811

main86101-33M30i201703-201811

AUDIO-8INCH DISPLAY & CD & 6SPEAKER

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-33M50supersedes 86101-33J20i201703-201808

MOON ROOF-WITH(TILT & SLIDE)

main86101-33M70i201703-201811

MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & CD & 6SPEAKER

main86101-33U20supersedes 86101-33M80i201808-201811

MOON ROOF-WITH(TILT & SLIDE)

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-33U50i201808-201811

main86101-33L80i201703-201811

MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & CD & 6SPEAKER

86101SCORD SUB-ASSY, ANTENNA

main86101-33J00×2i201703-201811

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-33370i201703-201811

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-33380i201703-201811

86300JANTENNA ASSY, ROOF

main86760-12020i201808-201811

main86760-33190i201703-201811

MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & CD & 6SPEAKER

86769HOUSING, ROOF ANTENNA

main86769-53010i201808-201811

9011906915

9011906A06

11 parts on this diagram · 1 diagram in section
