WINDSHIELD WIPER

82046GWIRE SUB-ASSY, BODY GROUND

main82046-33060iAXVA70201703-201811

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33430iAXVA70201703-201811

85150BLINK ASSY, WIPER

main85150-33280iAXVA70201703-201811

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iAXVA70201703-201811

85211BARM, FRONT WIPER, RH

main85211-33440iAXVA70201703-201811

85212ABLADE, FR WIPER, RH

main85212-33340iAXVA70201703-201811

85214ARUBBER, WIPER, RH

main85214-60120iAXVA70201703-201811

85214BRUBBER, WIPER, LH

main85214-52110iAXVA70201703-201811

85221BARM, FRONT WIPER, LH

main85221-33430iAXVA70201703-201811

85222ABLADE, FR WIPER, LH

main85222-33340iAXVA70201703-201811

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iAXVA70201703-201811

9011906864

main90119-06864

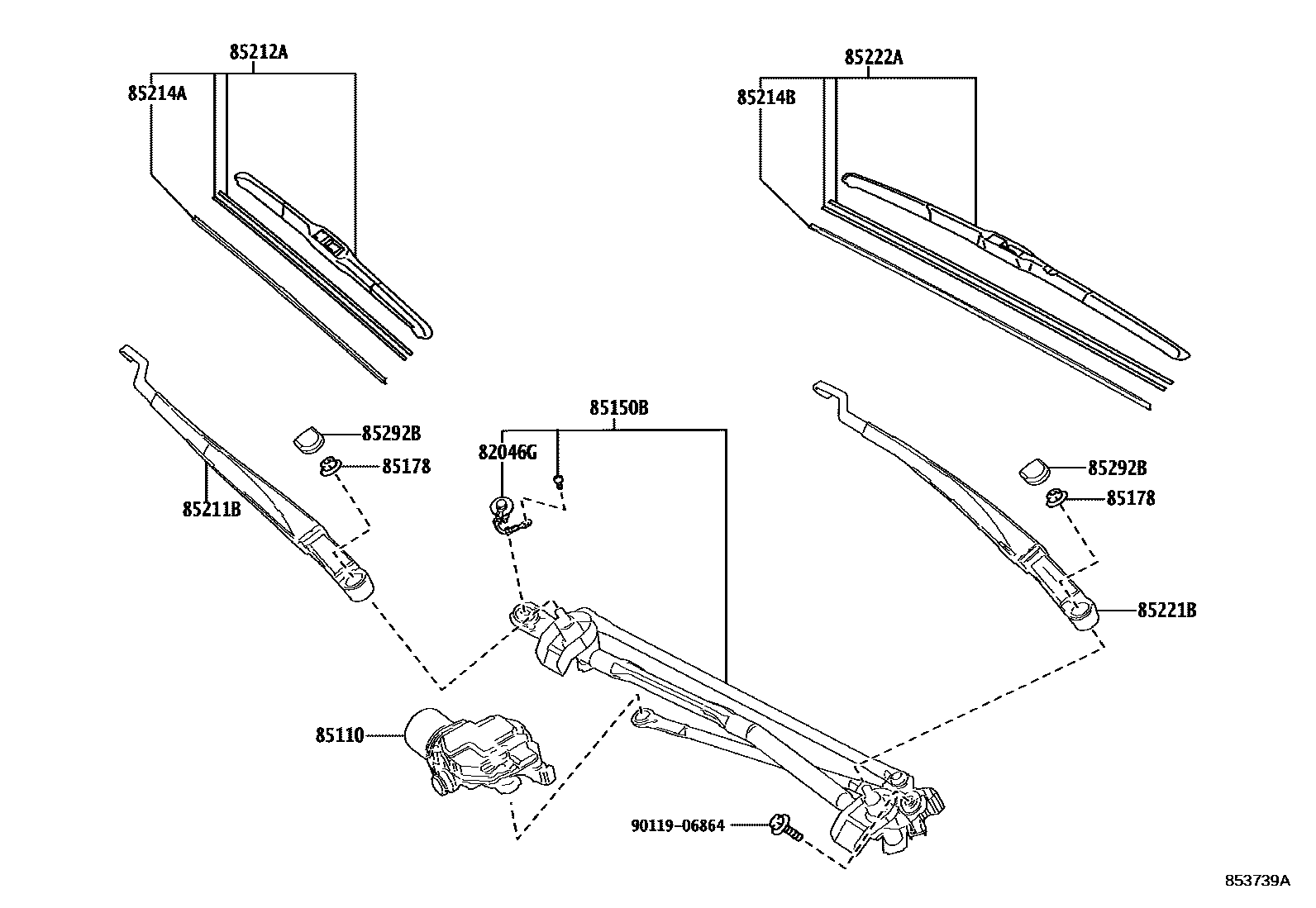

12 parts on this diagram · 1 diagram in section
