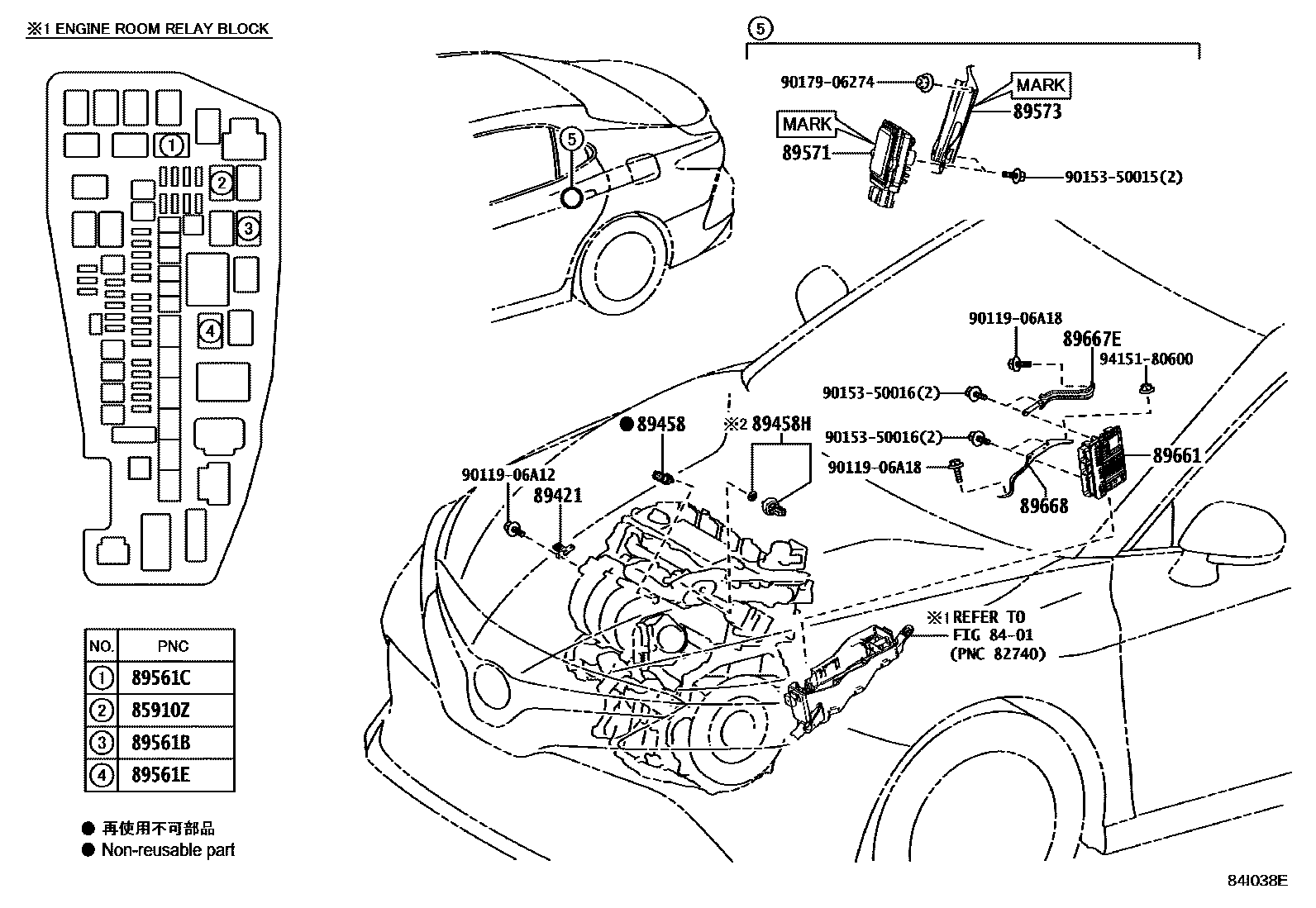

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iAXVA70201703-201811

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXVA70201703-201811

89458SENSOR, FUEL PRESSURE

main89458-33030iAXVA70201703-201811

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXVA70201803-201811

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02027iAXVA70201703-201811

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iAXVA70201703-201811

89561ERELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

main90987-02027iAXVA70201703-201811

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iAXVA70201703-201811

P/N LABEL=8957133030

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iAXVA70201703-201811

MARK K

89661COMPUTER, ENGINE CONTROL

main89661-33T40iAXVA70201703-201704

main89661-33T41iAXVA70201705-201708

DENSO

main89661-33T42iAXVA70201709-201710

DENSO,P/N LABEL=8966133T42

main89661-33T43iAXVA70201709-201710

DENSO,P/N LABEL=8966133T43

main89661-33T44iAXVA70201711-201802

DENSO

main89661-33T45iAXVA70201803-201804

DENSO

main89661-33T46iAXVA70201804-201808

DENSO

main89661-33Y40iAXVA70201808-201809

DENSO

main89661-33Y41iAXVA70201809-201811

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iAXVA70201703-201811

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33240iAXVA70201703-201811

9011906A12

main90119-06A12

9011906A18

main90119-06A18

9015350015

main90153-50015

9015350016

main90153-50016

9017906274

main90179-06274

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
