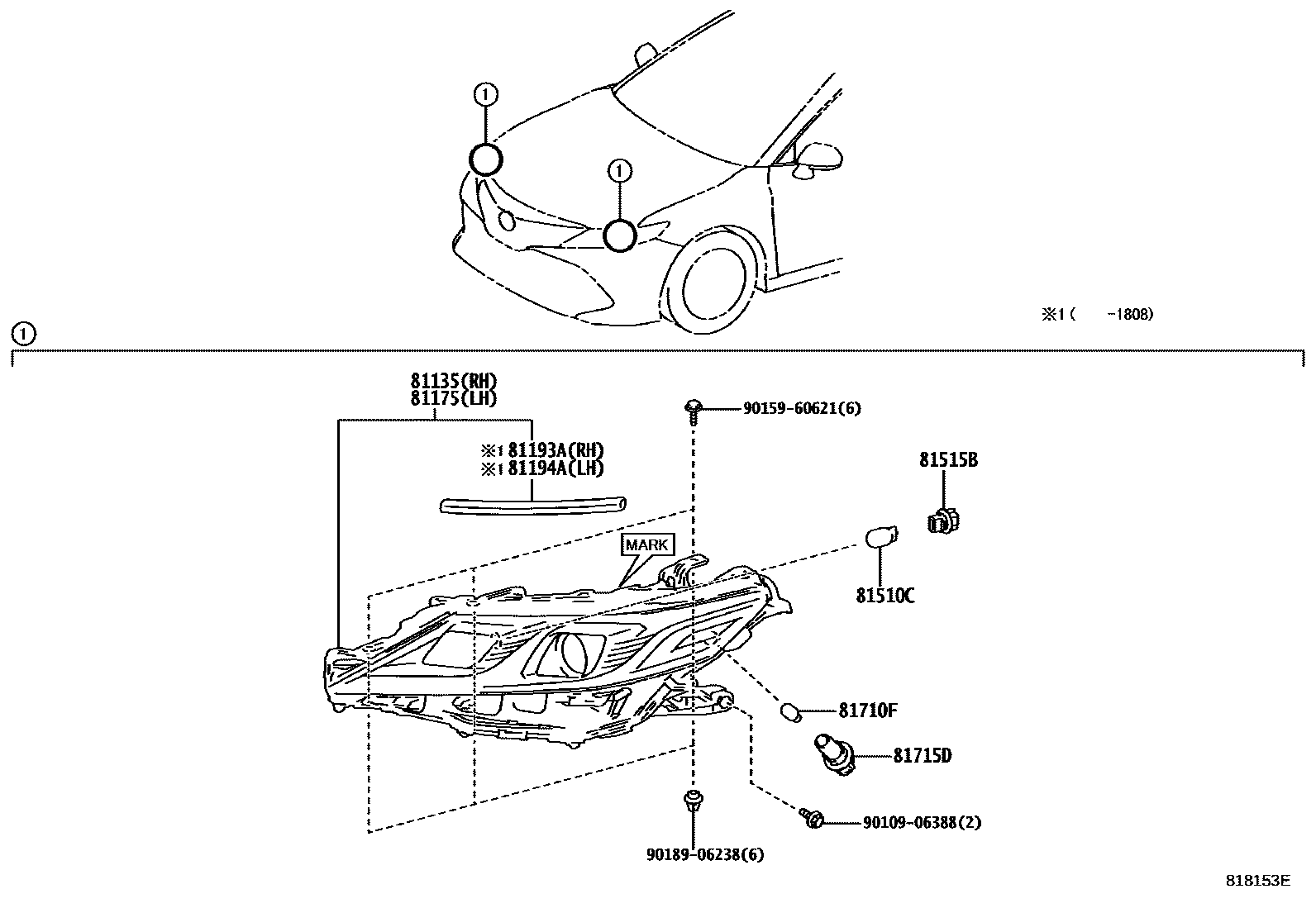

HEADLAMP

81135UNIT ASSY, HEADLAMP, RH

main81130-33D40iAXVA70201703-201808

MARK=A

main81130-33D41iAXVA70201808-201811

MARK=A

81175UNIT ASSY, HEADLAMP, LH

main81170-33D00iAXVA70201703-201808

MARK=A

main81170-33D01iAXVA70201808-201811

MARK=A

81193APROTECTOR, HEADLAMP, RH

main81117-33D50iAXVA70201703-201808

REFER TO PNC 81135

81194APROTECTOR, HEADLAMP, LH

main81157-33D10iAXVA70201703-201808

REFER TO PNC 81175

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15031×2iAXVA70201703-201811

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-06470×2iAXVA70201703-201811

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11067×2iAXVA70201703-201811

81715DSOCKET PLUG, FRONT MARKER LAMP

main90075-60077×2iAXVA70201703-201811

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

11 parts on this diagram · 1 diagram in section
