SIDE MOULDING

0001 1 0002 1

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

75551HMOULDING, ROOF DRIP SIDE, RH

main75555-33080iAXVA70201703-201811

75552HMOULDING, ROOF DRIP SIDE, LH

main75556-33080iAXVA70201703-201811

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040×4iAXVA70201703-201811

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-33060iAXVA70201703-201811

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-33060iAXVA70201703-201811

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-33170iAXVA70201703-201811

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-33170iAXVA70201703-201811

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-33170iAXVA70201703-201811

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-33170iAXVA70201703-201811

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-33100iAXVA70201703-201811

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-33100iAXVA70201703-201811

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-33090iAXVA70201703-201811

NO PAINT REQ.

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-33090iAXVA70201703-201811

NO PAINT REQ.

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-33090iAXVA70201703-201811

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-33090iAXVA70201703-201811

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iAXVA70201703-201811

9026904051

main90269-04051

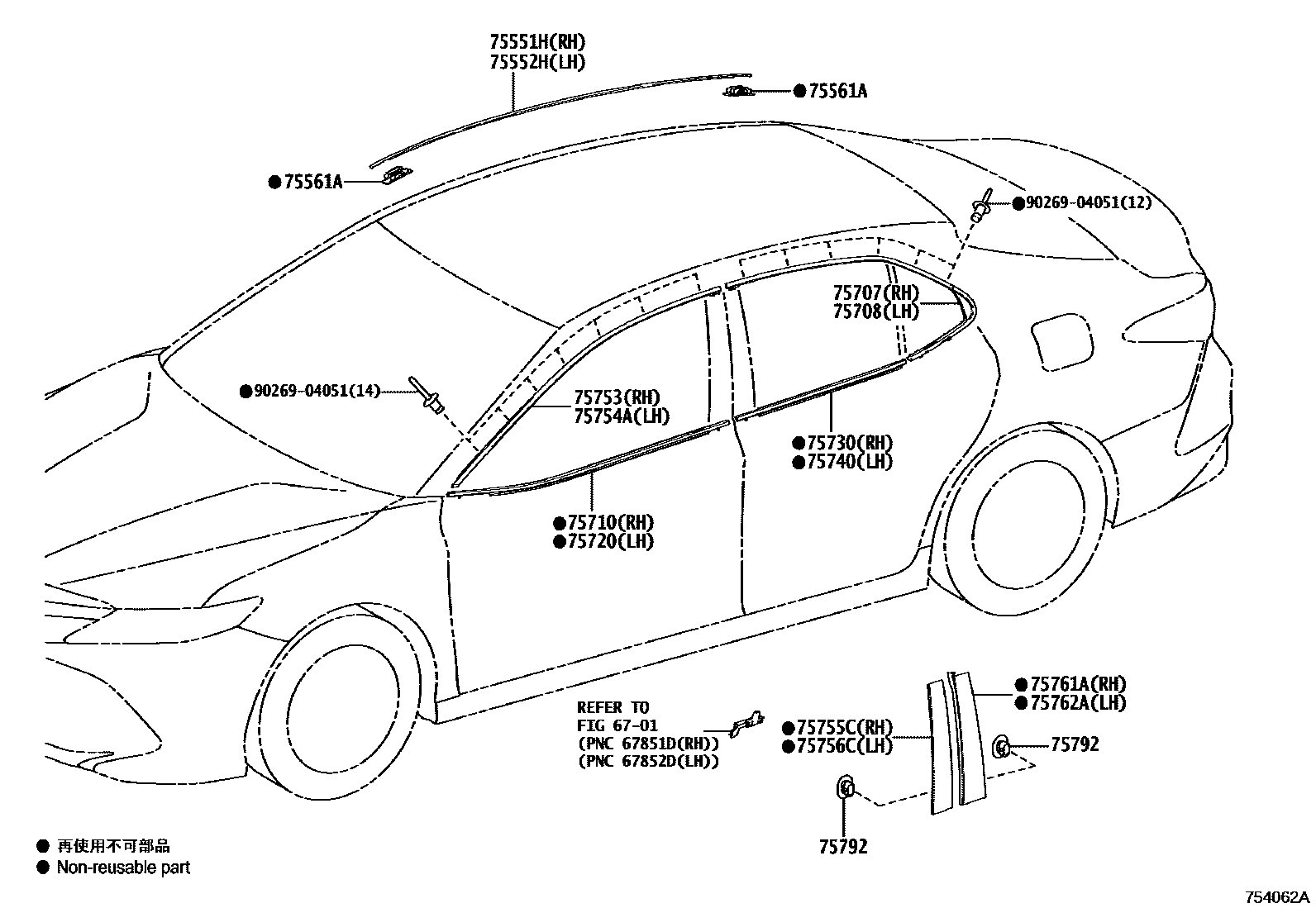

18 parts on this diagram · 2 diagrams in section
