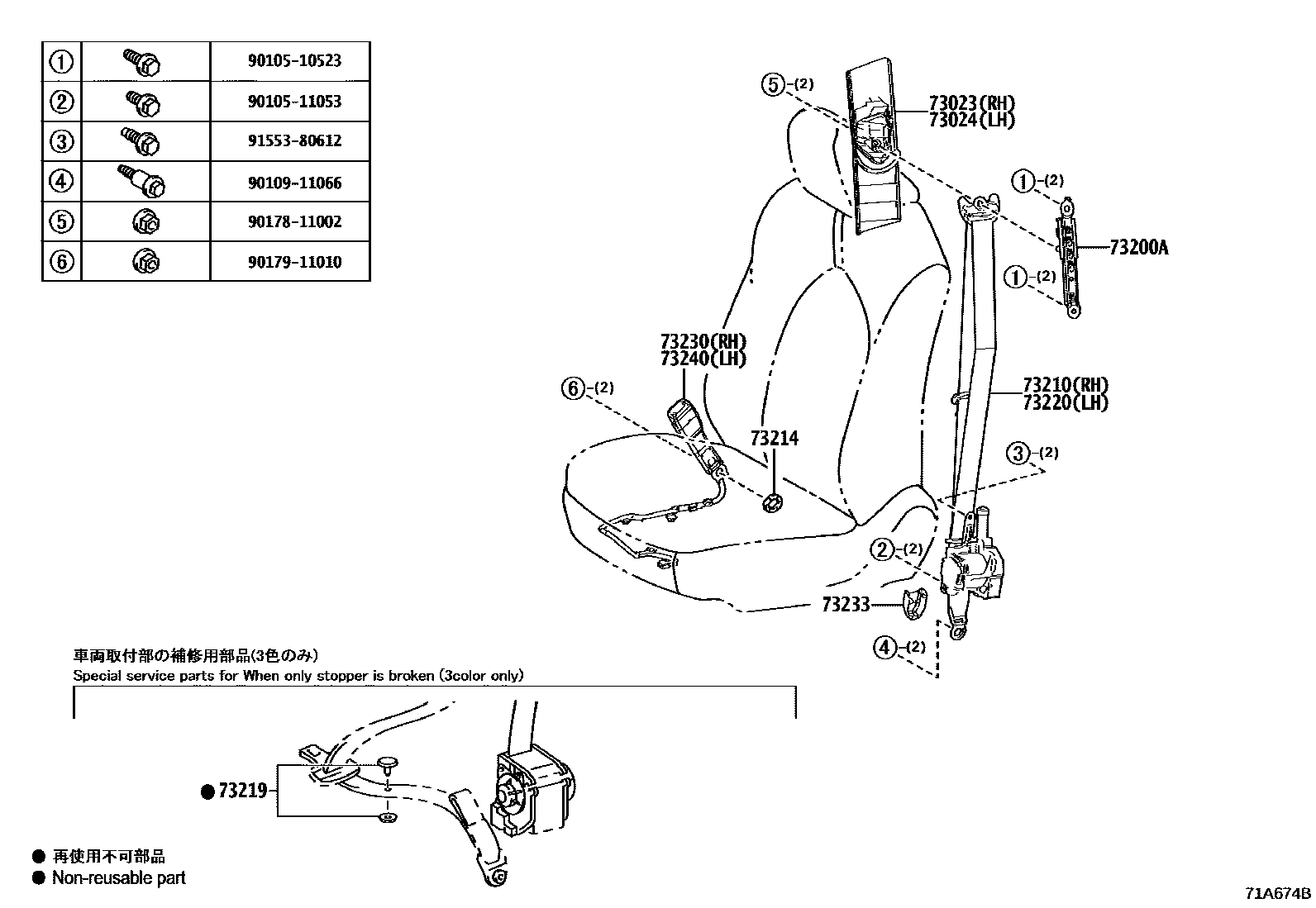

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-B4iAXVA70201703-201811

GRAY,TRIM1#,2#

main73023-58010-E1iAXVA70201703-201811

NEUTRAL BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-B4iAXVA70201703-201811

GRAY,TRIM1#,2#

main73024-58010-E1iAXVA70201703-201811

NEUTRAL BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAXVA70201703-201811

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-33730-A0iAXVA70201703-201804

IVORY,TRIM4#

main73210-33730-C1iAXVA70201703-201804

BLACK,TRIM1#,2#

main73210-47272-A4iAXVA70..LE201805-201811

IVORY,TRIM4#

main73210-47272-C5iAXVA70201805-201811

BLACK,TRIM1#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAXVA70201703-201811

73219STOPPER, TONGUE PLATE

main73219-02010iAXVA70201703-201811

BLACK

main73219-02020iAXVA70201703-201811

GRAY

main73219-02030iAXVA70201703-201811

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-A2iAXVA70..LE201703-201708

IVORY,TRIM4#

main73220-47221-A4iAXVA70..LE201708-201811

IVORY,TRIM4#

main73220-47221-C4iAXVA70201703-201708

BLACK,TRIM1#,2#

main73220-47221-C7iAXVA70201708-201811

BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33710-C0iAXVA70201703-201811

BLACK,TRIM1#,2#

main73230-33710-E0iAXVA70201703-201811

NEUTRAL BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iAXVA70..LE; AXVA70..SE201703-201811

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33780-C0iAXVA70201703-201811

BLACK,TRIM1#,2#

main73230-33780-E0iAXVA70201703-201811

NEUTRAL BEIGE,TRIM4#

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
