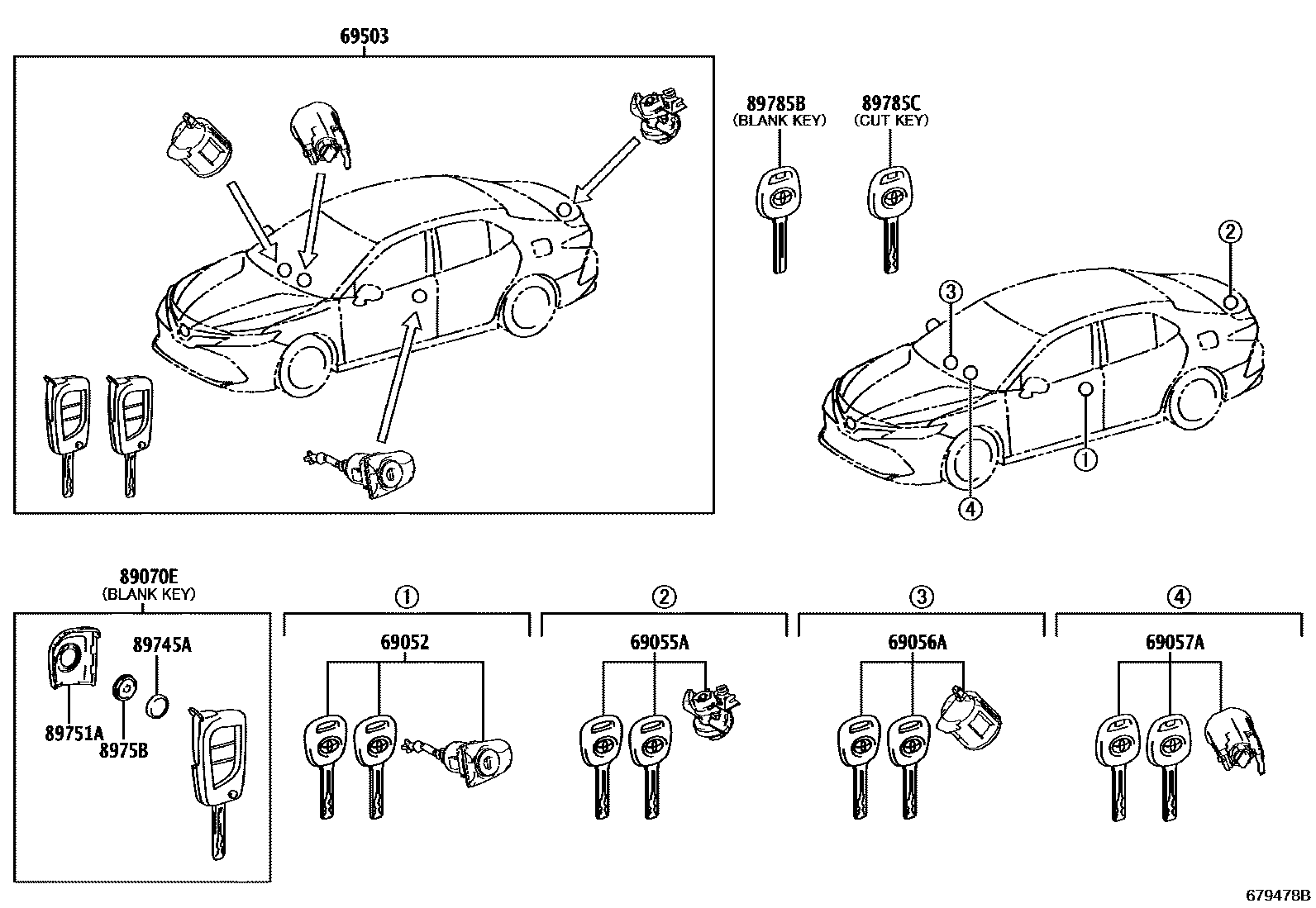

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33420supersedes 69052-33350i201703-201811

STARTING SYSTEM-PUSH START SWITCH

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33510supersedes 69055-33500i201703-201811

STARTING SYSTEM-PUSH START SWITCH

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30270supersedes 69056-30240i201703-201811

STARTING SYSTEM-PUSH START SWITCH

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33410i201703-201811

69503CYLINDER SET, LOCK

main89704-33840i201703-201808

CANADA SPEC&STARTING SYSTEM-PUSH START SWITCH; MEXICO SPEC&STARTING SYSTEM-PUSH START SWITCH; STARTING SYSTEM-PUSH START SWITCH

main89704-33841i201808-201811

CANADA SPEC&STARTING SYSTEM-PUSH START SWITCH; MEXICO SPEC&STARTING SYSTEM-PUSH START SWITCH; STARTING SYSTEM-PUSH START SWITCH

main69005-33D60i201703-201811

STARTING SYSTEM-PUSH START SWITCH

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-33E90i201703-201808

STARTING SYSTEM-PUSH START SWITCH

main89070-33E91i201808-201811

STARTING SYSTEM-PUSH START SWITCH

89745ABATTERY, TRANSMITTER

main89745-50020i201703-201811

CR2032; CR2032,CANADA SPEC&STARTING SYSTEM-PUSH START SWITCH; CR2032,MEXICO SPEC&STARTING SYSTEM-PUSH START SWITCH; CR2032,STARTING SYSTEM-PUSH START SWITCH

89751ACOVER, TRANSMITTER HOUSING

main89751-33200×2i201703-201811

CANADA SPEC&STARTING SYSTEM-PUSH START SWITCH; MEXICO SPEC&STARTING SYSTEM-PUSH START SWITCH; STARTING SYSTEM-PUSH START SWITCH

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050×2i201711-201811

CANADA SPEC&STARTING SYSTEM-PUSH START SWITCH; MEXICO SPEC&STARTING SYSTEM-PUSH START SWITCH; STARTING SYSTEM-PUSH START SWITCH

main8975B-52010×2i201703-201710

CANADA SPEC&STARTING SYSTEM-PUSH START SWITCH; MEXICO SPEC&STARTING SYSTEM-PUSH START SWITCH; STARTING SYSTEM-PUSH START SWITCH

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-12140i201703-201811

BLANK KEY; STARTING SYSTEM-PUSH START SWITCH,BLANK KEY

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-12150i201703-201811

CUT KEY; STARTING SYSTEM-PUSH START SWITCH,CUT KEY

11 parts on this diagram · 2 diagrams in section
