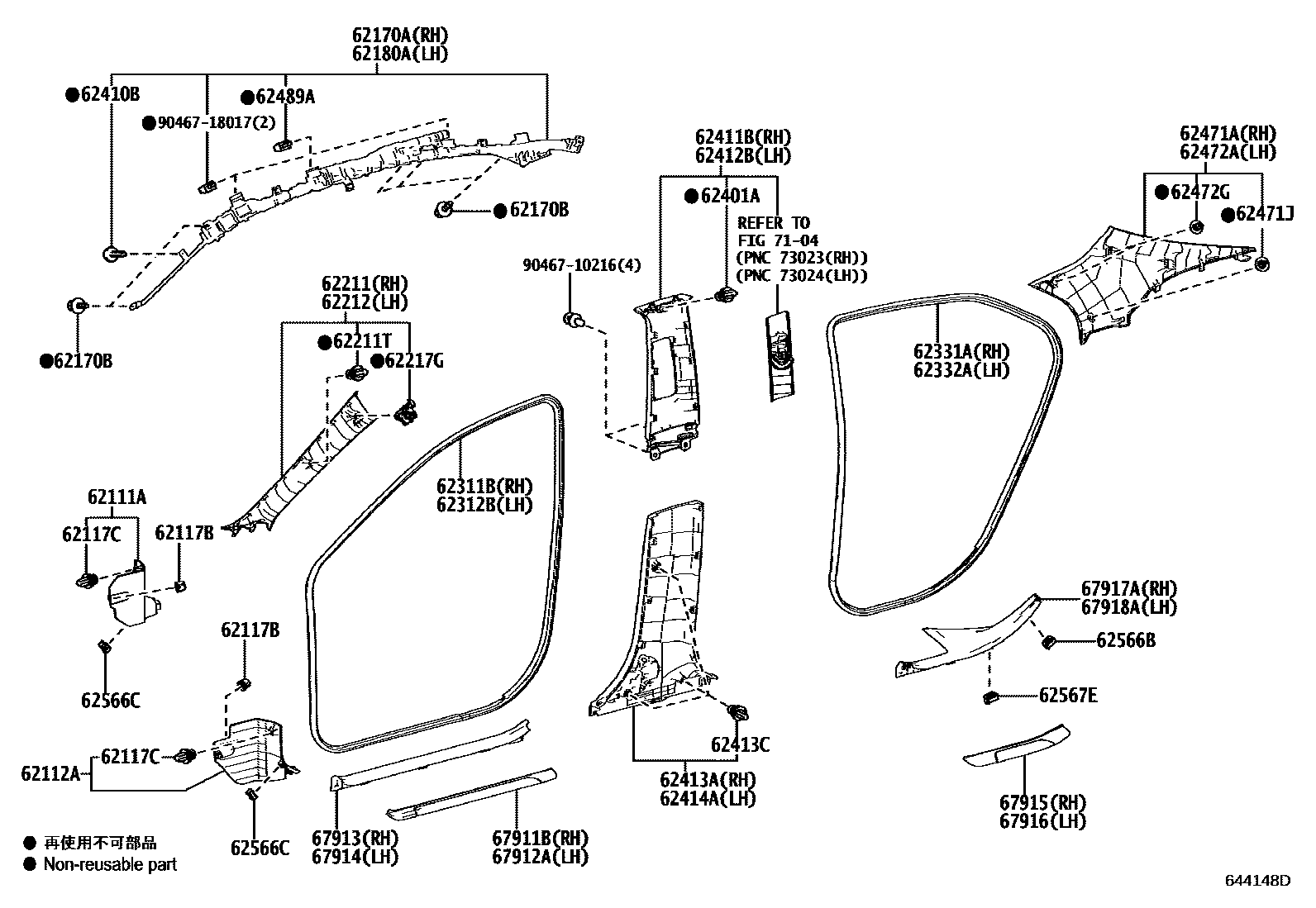

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
NEUTRAL WARM GRAY,TRIM1#,4#
NEUTRAL WARM GRAY,TRIM10,4#
BLACK,TRIM2#
BLACK,TRIM10,2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
NEUTRAL WARM GRAY,TRIM1#,4#
NEUTRAL WARM GRAY,TRIM10,4#
BLACK,TRIM2#
BLACK,TRIM10,2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170BBOLT, W/WASHER
62211GARNISH, FRONT PILLAR, RH
GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62410BCLIP
62411BGARNISH, CENTER PILLAR, UPPER RH
GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM1#,4#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM1#,4#
BLACK,TRIM2#
62471AGARNISH, ROOF SIDE, INNER RH
GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
62472GCLIP (FOR ROOF SIDE GARNISH)
62489ACLIP, ROOF SIDE INNER GARNISH
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566CCLAMP, COWL SIDE TRIM
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
NEUTRAL WARM GRAY,TRIM1#,4#
NEUTRAL WARM GRAY,TRIM10,4#
BLACK,TRIM2#
BLACK,TRIM10,2#
67914PLATE, FRONT DOOR SCUFF, LH
NEUTRAL WARM GRAY,TRIM1#,4#
NEUTRAL WARM GRAY,TRIM10,4#
BLACK,TRIM2#
BLACK,TRIM10,2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
NEUTRAL WARM GRAY,TRIM1#,4#
NEUTRAL WARM GRAY,TRIM10,4#
BLACK,TRIM2#
BLACK,TRIM10,2#
67918APLATE, REAR DOOR SCUFF, LH
NEUTRAL WARM GRAY,TRIM1#,4#
NEUTRAL WARM GRAY,TRIM10,4#
BLACK,TRIM2#
BLACK,TRIM10,2#
7104
9046710216
main90467-10216
9046718017
main90467-18017
41 parts on this diagram · 2 diagrams in section
