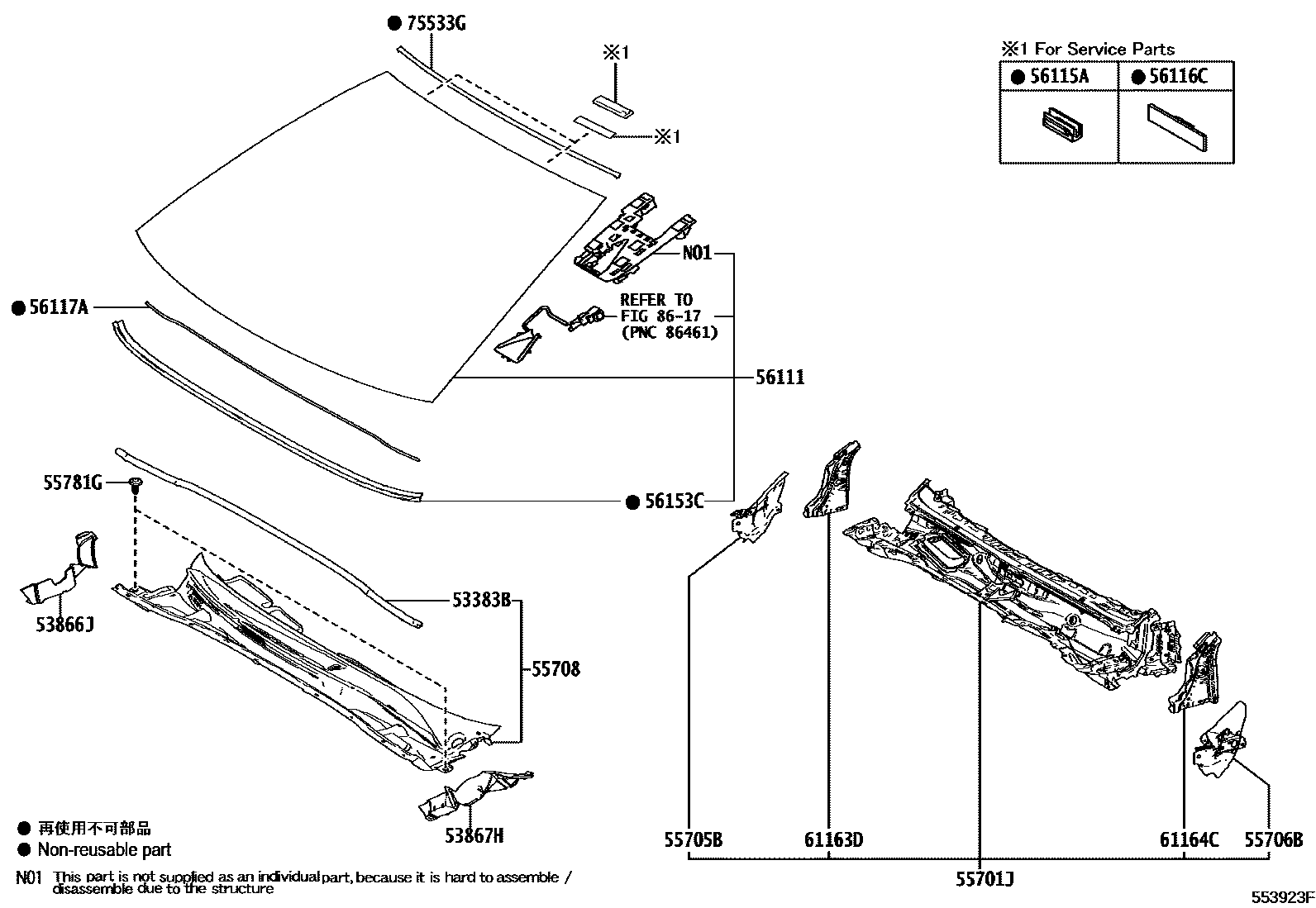

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-33140i201703-201811

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33090i201703-201811

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33090i201703-201811

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-33250i201703-201811

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-33040i201703-201811

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-33040i201703-201811

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33270supersedes 55708-33300i201703-201807

COLD AREA SPEC

main55708-33271supersedes 55708-33301i201808-201811

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2i201703-201811

56111GLASS, WINDSHIELD

main56101-33996i201703-201808

CONVENIENT PACKAGE&PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH

main56101-3Y930i201808-201811

CONVENIENT PACKAGE&PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH

main56101-3T902supersedes 56101-3T900i201703-201804

CONVENIENT PACKAGE

main56101-3Y932supersedes 56101-3Y931i201808-201811

CONVENIENT PACKAGE

main56101-3Y934supersedes 56101-3T917i201804-201808

CONVENIENT PACKAGE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i201703-201811

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201703-201811

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010i201703-201811

*D,L=1298 OR 725; *D,L=1298 OR 725,CONVENIENT PACKAGE; *D,L=1298 OR 725,CONVENIENT PACKAGE&PRE-COLLISION SYSTEM-WITH; *D,L=1298 OR 725,PRE-COLLISION SYSTEM-WITH

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-33010i201703-201811

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-33020i201703-201811

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-33020i201703-201811

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-33150i201703-201811

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

17 parts on this diagram · 2 diagrams in section
