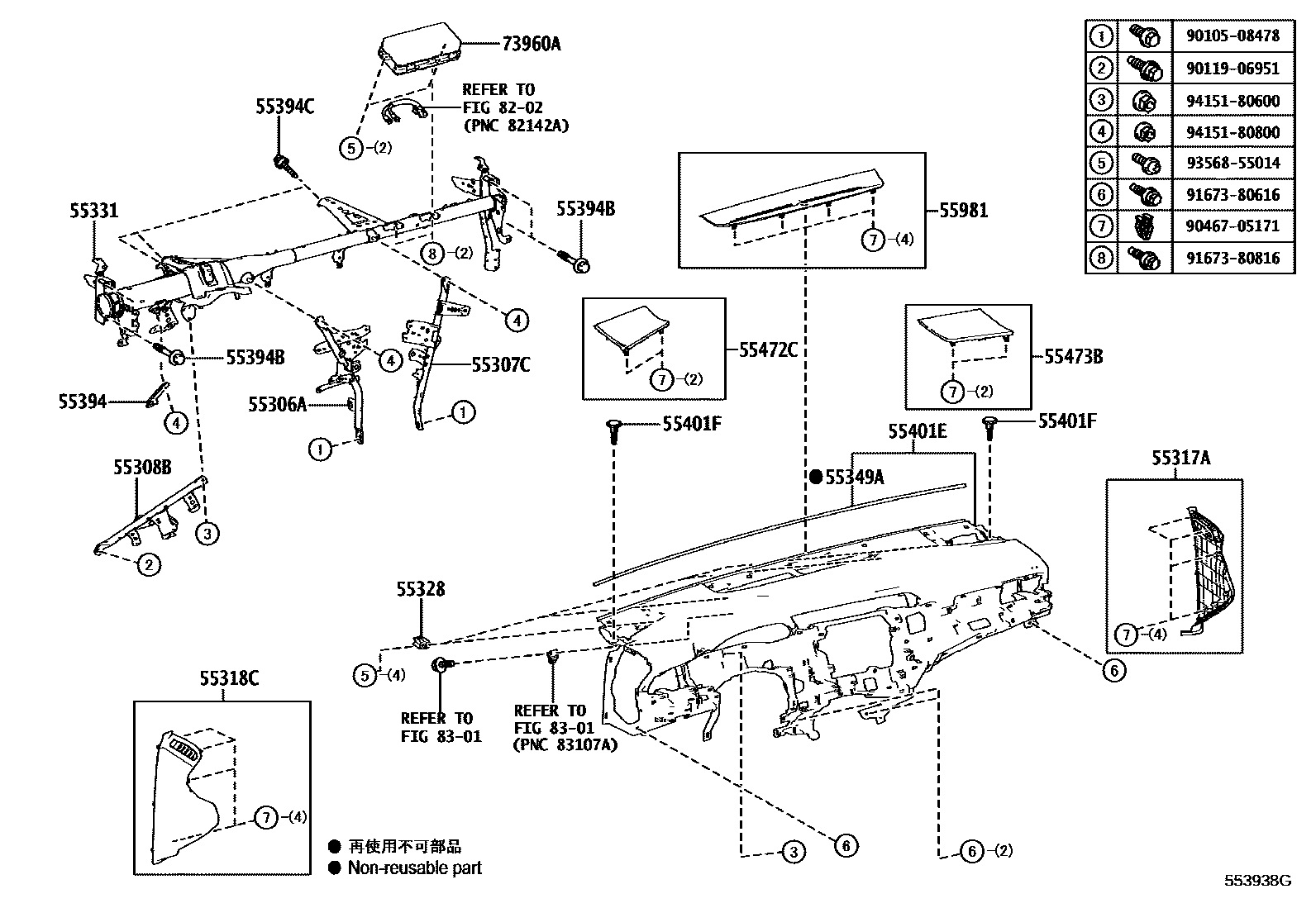

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33160iAXVA70201703-201811

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33190iAXVA70201703-201811

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-33140iAXVA70201703-201811

55317APANEL, INSTRUMENT SIDE, RH

main55317-33170iAXVA70201703-201811

55318CPANEL, INSTRUMENT SIDE, LH

main55318-33140iAXVA70201703-201811

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iAXVA70201703-201811

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33430iAXVA70201703-201811

55349ACUSHION, INSTRUMENT PANEL

main55349-33060iAXVA70201703-201811

55394BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-33120iAXVA70201703-201811

55394BBOLT, INSTRUMENT PANEL

main90105-08473×4iAXVA70201703-201811

55394CBOLT, INSTRUMENT PANEL

main90119-08D16×3iAXVA70201703-201811

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33902-B0iAXVA70..LE201703-201811

NEUTRAL WARM GRAY,TRIM4#

main55401-33902-C0iAXVA70201703-201811

SOFT BLACK,TRIM1#,2#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iAXVA70201703-201811

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-33220-B0iAXVA70201703-201808

NEUTRAL WARM GRAY,TRIM4#

main55472-33220-C0iAXVA70201703-201808

BLACK,TRIM1#,2#

main55472-33280iAXVA70201808-201811

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-33090-B0iAXVA70201703-201808

NEUTRAL WARM GRAY,TRIM4#

main55473-33090-C0iAXVA70201703-201808

BLACK,TRIM1#,2#

main55473-33130iAXVA70201808-201811

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33150-B0iAXVA70201703-201808

NEUTRAL WARM GRAY,TRIM4#

main55981-33150-C0iAXVA70201703-201808

BLACK,TRIM1#,2#

main55981-33160iAXVA70201808-201811

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33160iAXVA70201703-201811

8202WIRING & CLAMP

→ Go to FIG 82-02

8301METER

→ Go to FIG 83-01

9010508478

main90105-08478

9011906951

main90119-06951

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 4 diagrams in section
