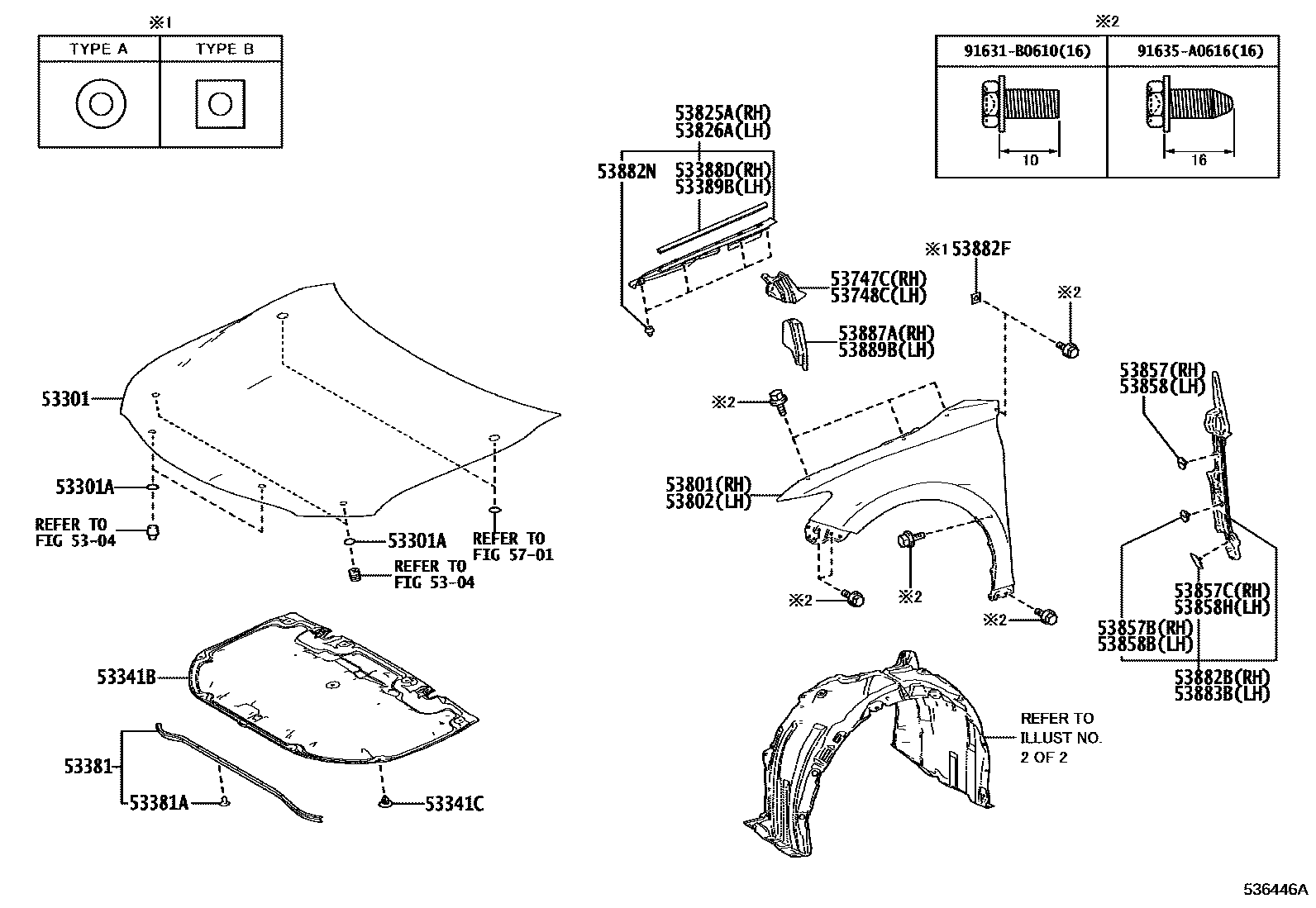

HOOD & FRONT FENDER

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53301HOOD SUB-ASSY

main53301-33220iAXVA70201703-201811

53301APLUG, HOLE(FOR HOOD)

main90950-06124×4iAXVA70201703-201811

53341BINSULATOR, HOOD

main53341-33190iAXVA70201703-201811

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×9iAXVA70201703-201811

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33110iAXVA70201703-201811

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×10iAXVA70201703-201811

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-33080iAXVA70201703-201811

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-33080iAXVA70201703-201811

53747CPLATE, AIR SEALED, RH

main53747-33030iAXVA70201703-201811

53748CPLATE, AIR SEALED, LH

main53748-33030iAXVA70201703-201811

53801FENDER SUB-ASSY, FRONT RH

main53801-33200iAXVA70201703-201811

53802FENDER SUB-ASSY, FRONT LH

main53802-33200iAXVA70201703-201811

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-33060iAXVA70201703-201811

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-33060iAXVA70201703-201811

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXVA70201703-201811

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXVA70201703-201811

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXVA70201703-201811

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXVA70201703-201811

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXVA70201703-201811

53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXVA70201703-201811

53882BSEAL, FRONT FENDER, RH

main53882-33070iAXVA70201703-201811

53882FSEAL, FRONT FENDER

main53882-30030×2iAXVA70201703-201811

TYPE A:REFER ILLUST.

main53882-33060×2iAXVA70201703-201811

TYPE B:REFER ILLUST.

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-10161×8iAXVA70201703-201811

53883BSEAL, FRONT FENDER, LH

main53883-33060iAXVA70201703-201811

53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-33020iAXVA70201703-201811

53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2

main53889-33070iAXVA70201703-201811

5701HOLE PLUG

→ Go to FIG 57-01

91631B0610

main91631-B0610

91635A0616

main91635-A0616

30 parts on this diagram · 2 diagrams in section
