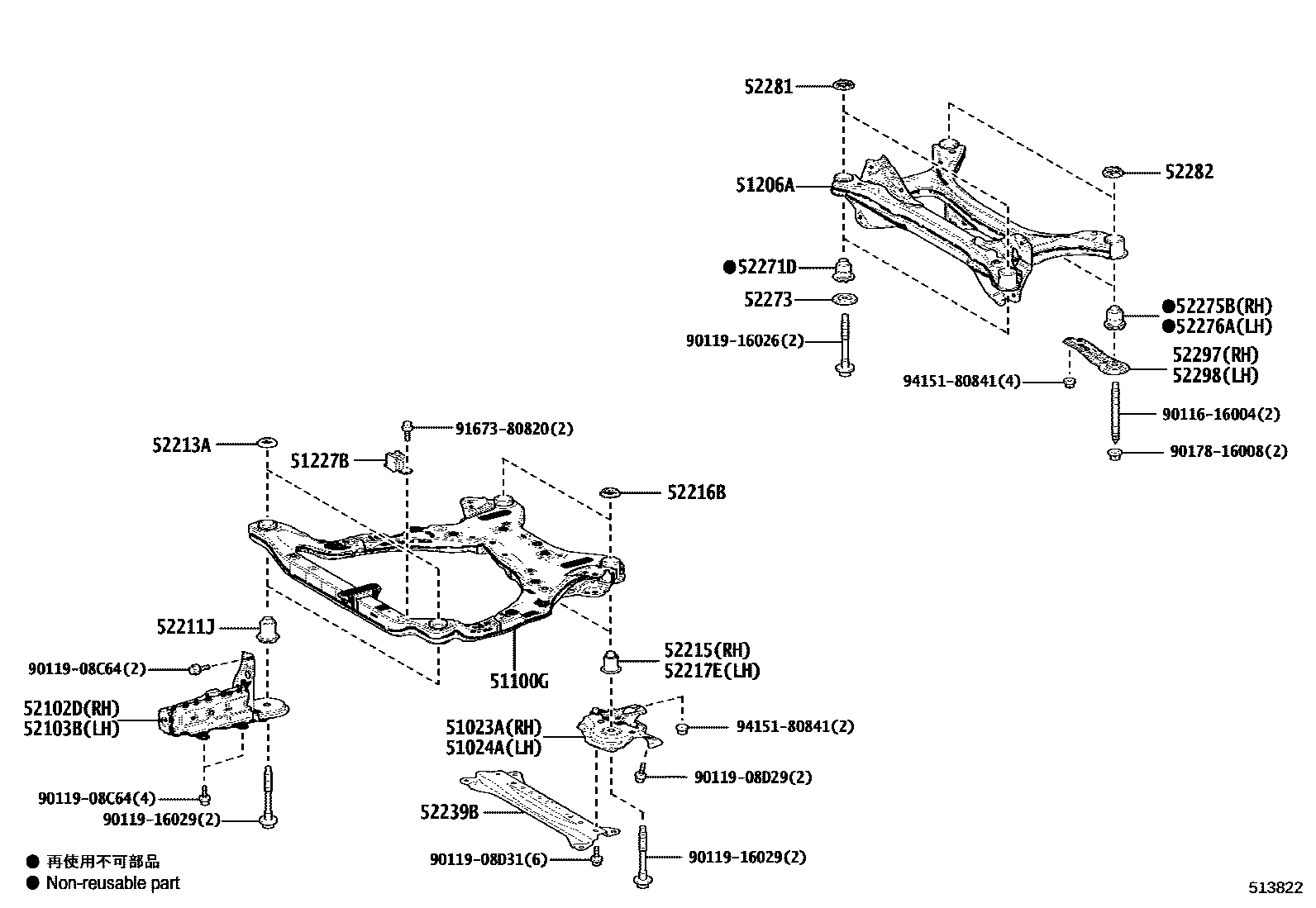

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-33070iAXVA70201703-201811

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-33080iAXVA70201703-201811

51100GFRAME ASSY, FRONT

main51100-33170iAXVA70201703-201811

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33120iAXVA70201703-201811

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33120iAXVA70201703-201811

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-33010iAXVA70201703-201811

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-33010iAXVA70201703-201811

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33100×2iAXVA70201703-201811

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33100×2iAXVA70201703-201811

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33110iAXVA70201703-201811

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33090×2iAXVA70201703-201811

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33040iAXVA70201703-201811

52239BPLATE, BODY MOUNTING

main52239-33020iAXVA70201703-201811

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33070×2iAXVA70..LE201703-201811

main52271-33080×2iAXVA70..SE201703-201811

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030×2iAXVA70201703-201811

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-33080iAXVA70..LE201703-201811

main52275-33090iAXVA70..SE201703-201811

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-33010iAXVA70..LE201703-201811

main52276-33020iAXVA70..SE201703-201811

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020×2iAXVA70201703-201811

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52281-33020×2iAXVA70..SE201703-201811

main52282-33060×2iAXVA70..LE201703-201811

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-33020iAXVA70201703-201811

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-33020iAXVA70201703-201811

9011616004

main90116-16004

9011908C64

main90119-08C64

9011908D29

main90119-08D29

9011908D31

main90119-08D31

9011916026

main90119-16026

9011916029

main90119-16029

9017816008

main90178-16008

9167380820

main91673-80820

9415180841

main94151-80841

30 parts on this diagram · 2 diagrams in section
