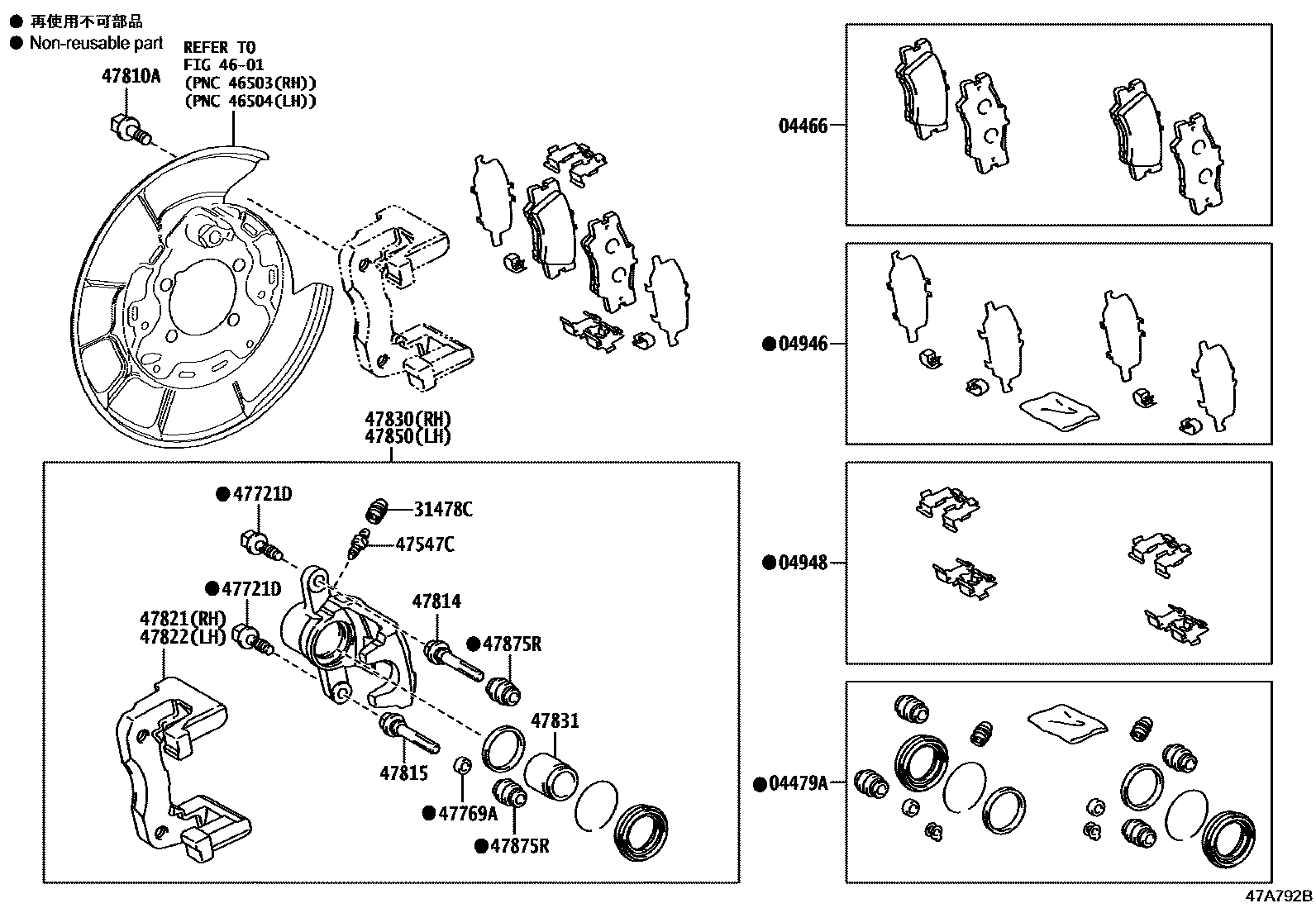

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33210iAXVA70201703-201811

MARK AK NS542

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33380iAXVA70201703-201811

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33080iAXVA70201703-201811

04948FITTING KIT, DISC BRAKE, REAR

main04948-33050iAXVA70201703-201811

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020×2iAXVA70201703-201811

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAXVA70201703-201811

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164×4iAXVA70201703-201811

*8-1.00PX23-15

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240×2iAXVA70201703-201811

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iAXVA70201703-201811

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240×2iAXVA70201703-201811

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240×2iAXVA70201703-201811

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-33280iAXVA70201703-201811

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-33280iAXVA70201703-201811

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33280iAXVA70201703-201811

47831PISTON, REAR DISC BRAKE

main47831-33280×2iAXVA70201703-201811

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33280iAXVA70201703-201811

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33240×4iAXVA70201703-201811

18 parts on this diagram · 1 diagram in section
