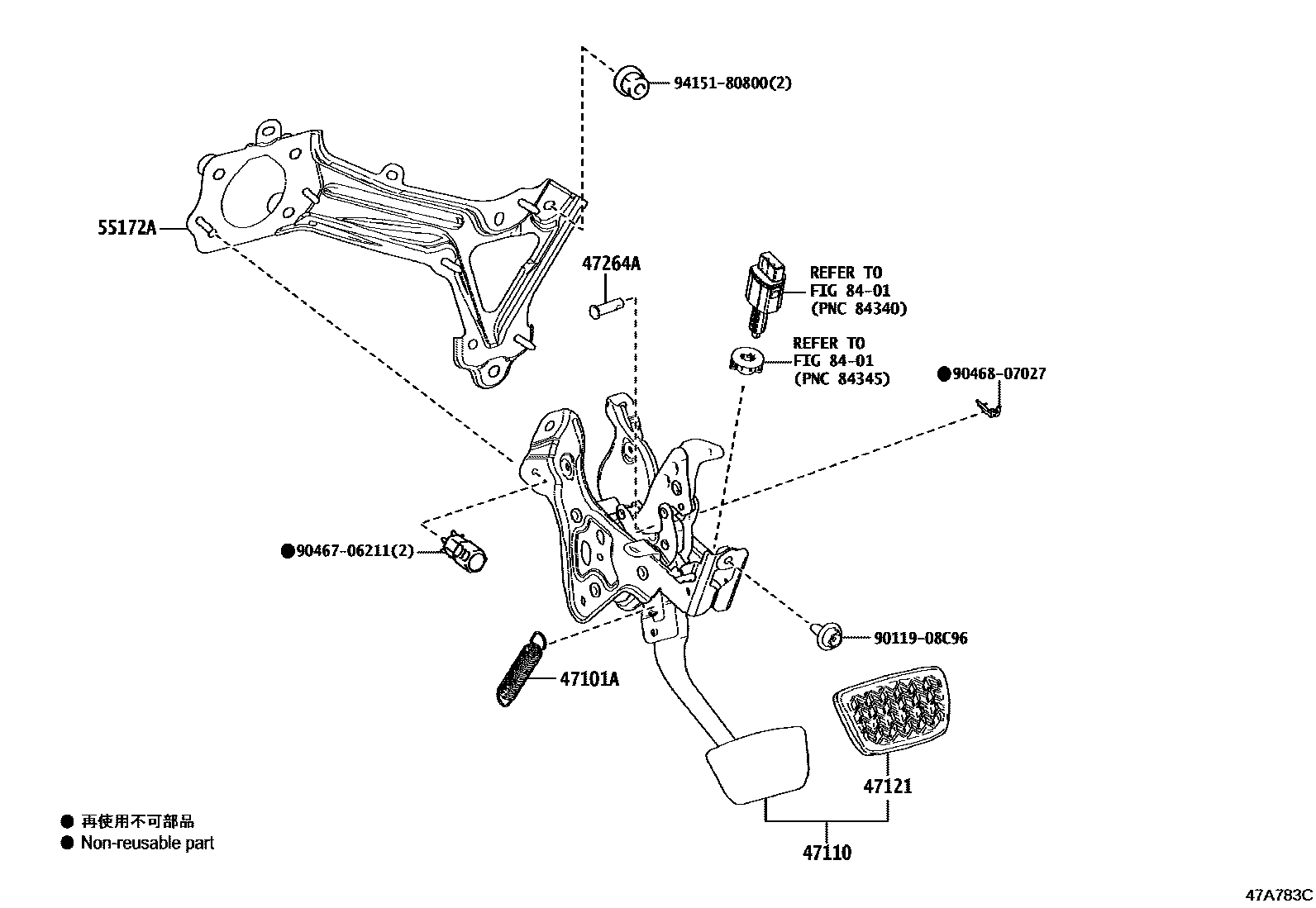

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXVA70201703-201811

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33340iAXVA70201703-201811

47121PAD, BRAKE PEDAL

main47121-48010iAXVA70201703-201811

47264APIN(FOR PUSH ROD)

main90240-08078iAXVA70201710-201811

main90240-08082iAXVA70201703-201709

55172ABASE, BRAKE PEDAL SUPPORT

main55172-33040iAXVA70201703-201811

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
