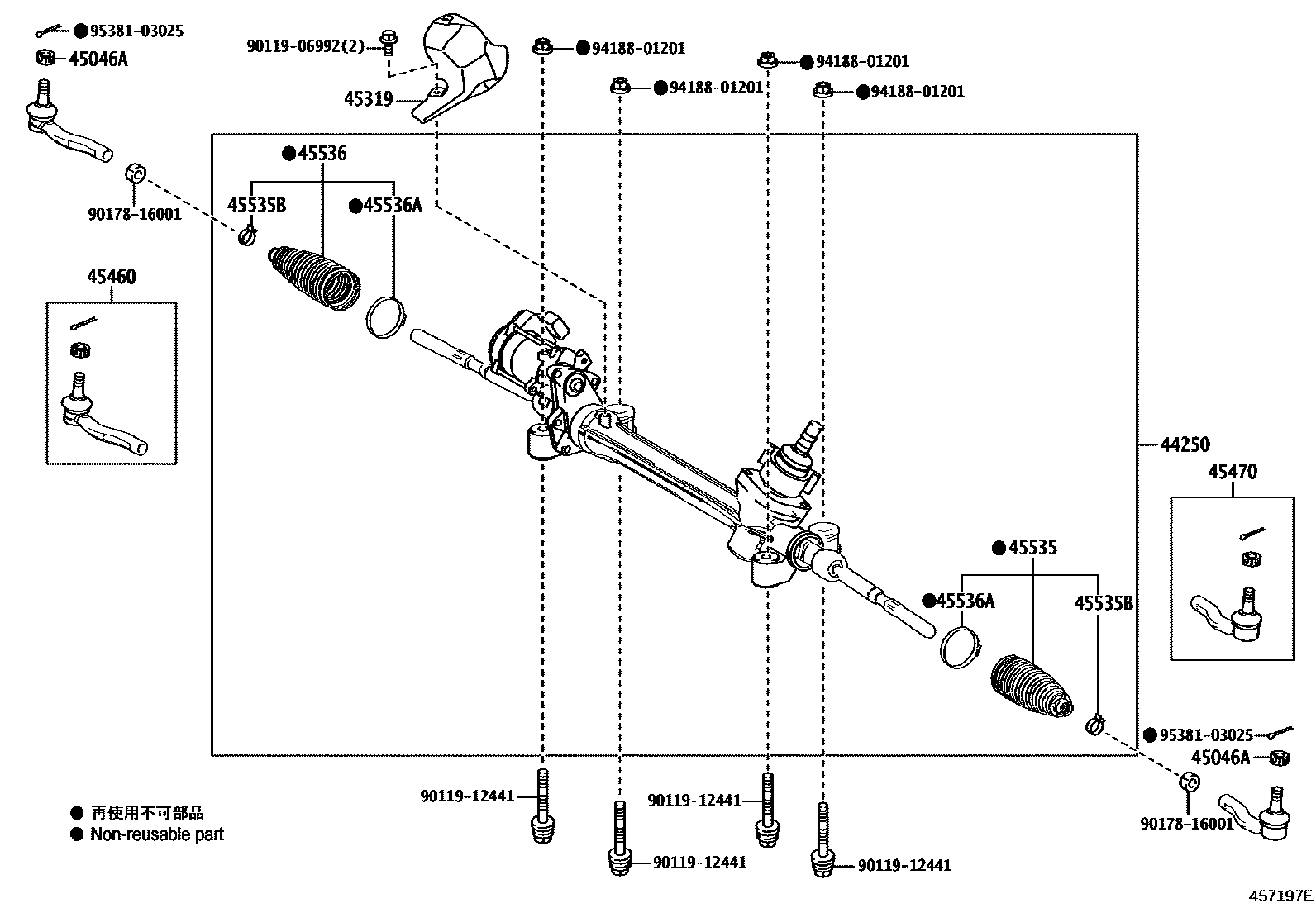

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06370iAXVA70..LE201703-201811

main44250-06390supersedes 44250-06400iAXVA70..SE201703-201811

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAXVA70201703-201811

45319INSULATOR, STEERING GEAR HEAT

main45319-33010iAXVA70201703-201811

45460ROD ASSY, TIE, RH

main45460-80008iAXVA70201703-201811

45470ROD ASSY, TIE, LH

main45470-39365iAXVA70201703-201811

45535BOOT, STEERING RACK, NO.1

main45535-09500iAXVA70201703-201811

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020×2iAXVA70201703-201811

45536BOOT, STEERING RACK, NO.2

main45535-09500iAXVA70201703-201811

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0T010×2iAXVA70201703-201811

9011906992

main90119-06992

9011912441

main90119-12441

9017816001

main90178-16001

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
